Eagle
>>
1995
>>
Summit Wagon AWD L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Diagrams
>>
Exploded Views
Exploded Views

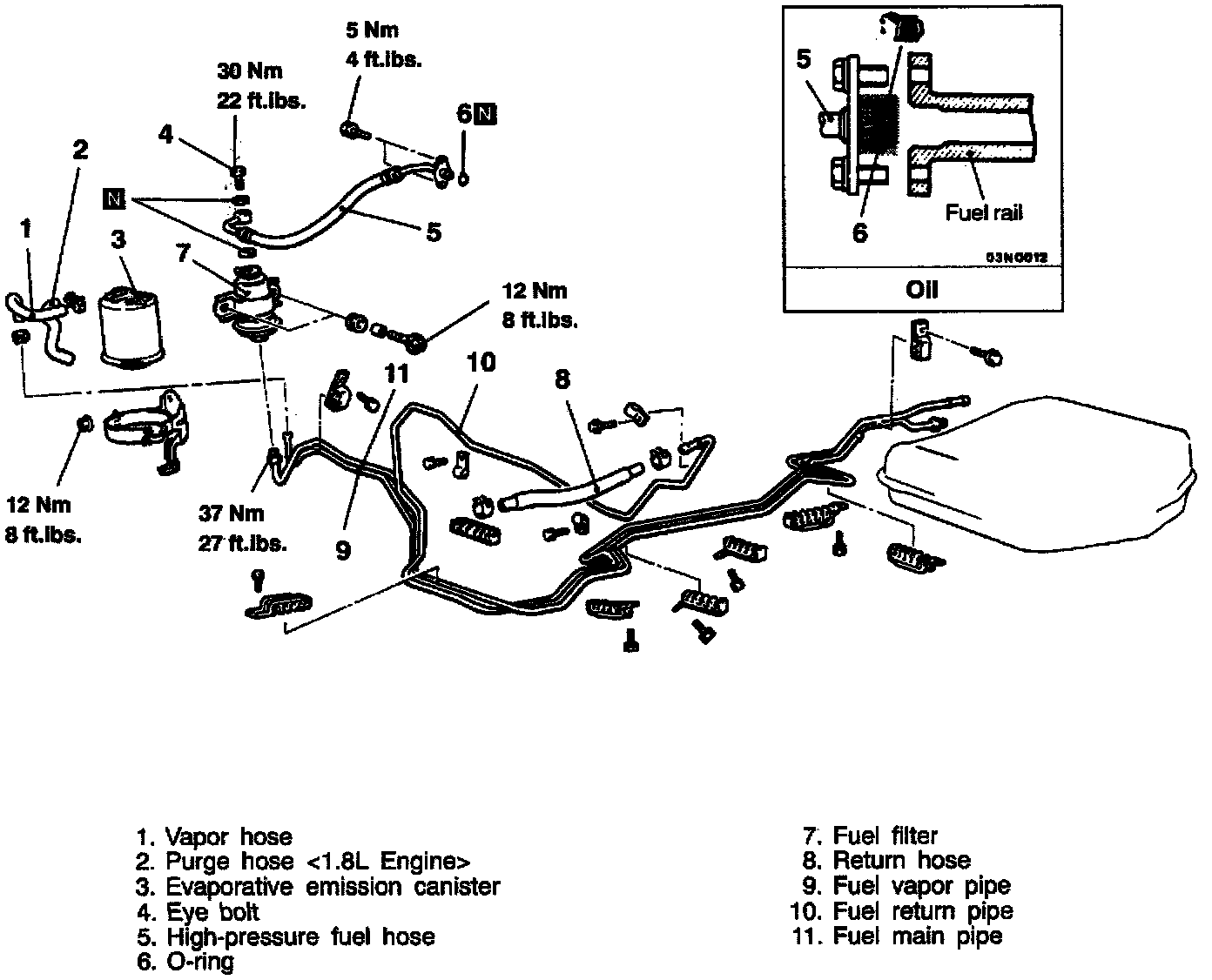

Fuel And Vapor Lines:
