Eagle
>>
1995
>>
Summit L4-1795cc 1.8L SOHC
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
>>
Without Intermittent Wiper System
Without Intermittent Wiper System

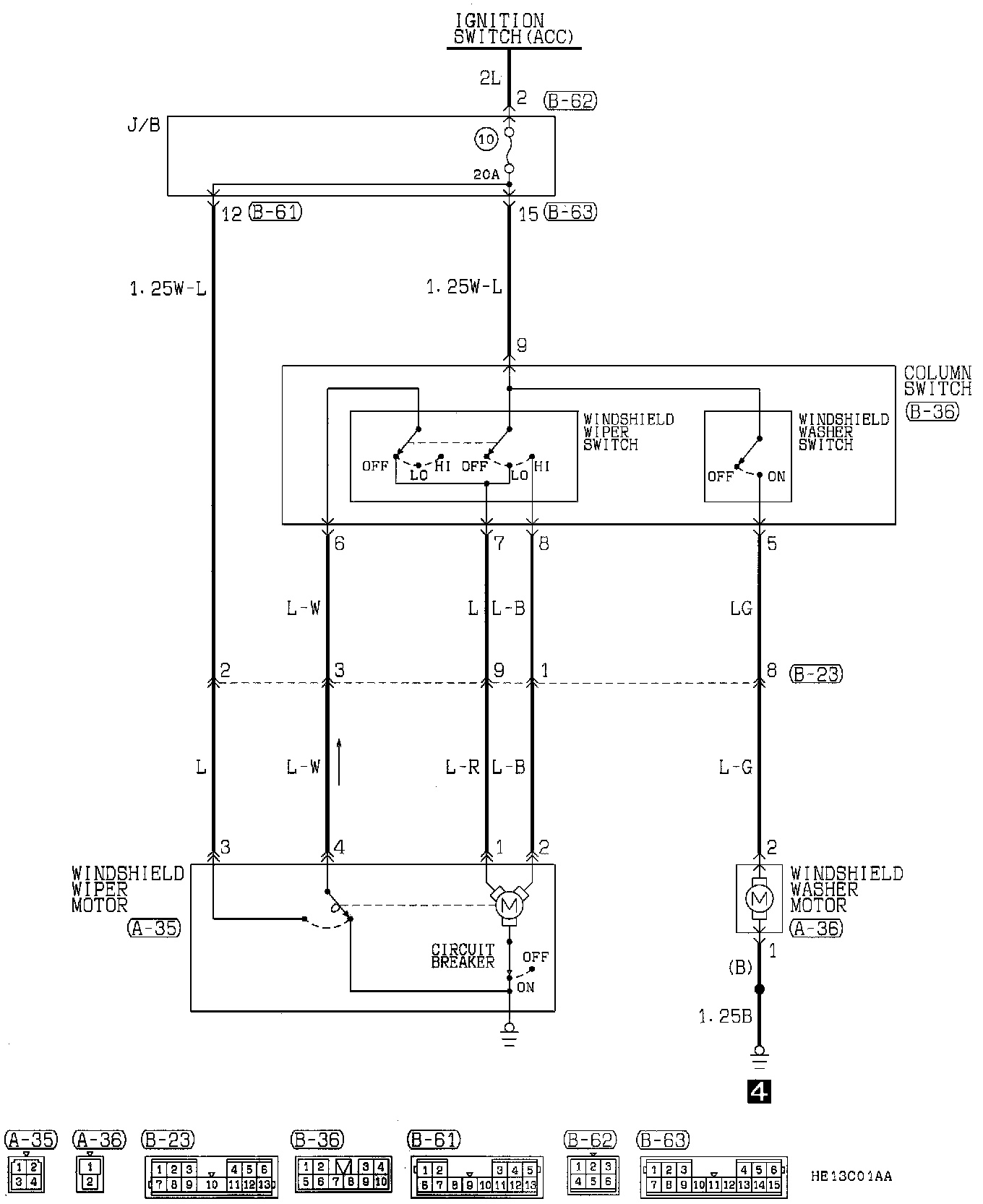

Windshield Wiper And Washer Circuit:
