Shift Solenoid: Locations

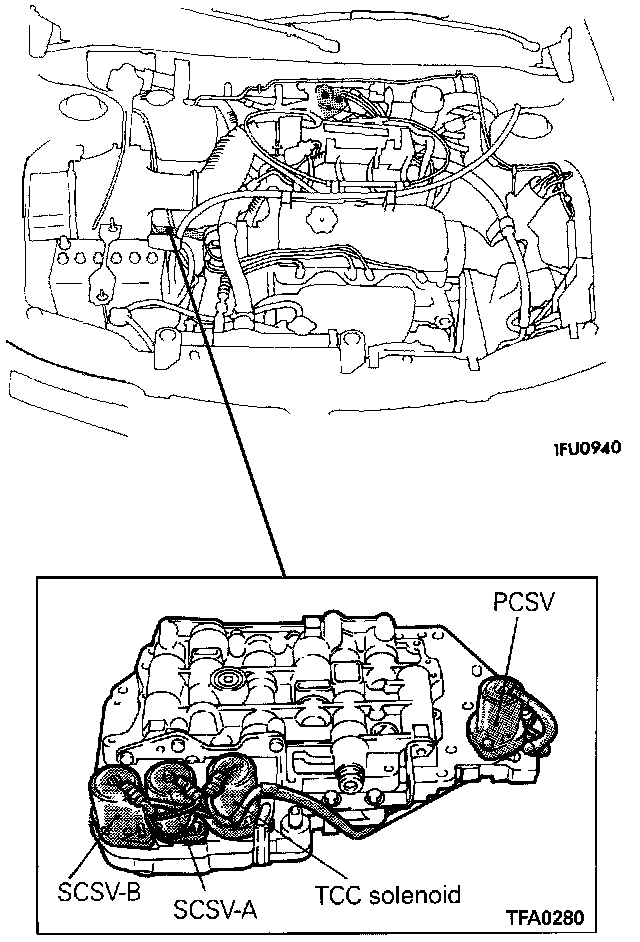

SCSV-A, SCSV-B, PCSV, And TCC Solenoid:
The shift solenoids are mounted on the valve body.
