Armature Ground Test

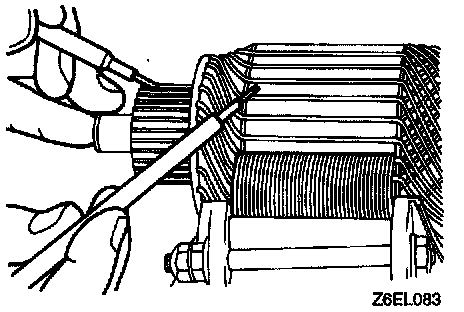

Armature Coil Ground Test:





Check the insulation between each commutator segment and armature coil core.If there is no continuity. the insulation is in order.
