17 Park/Neutral Position Switch System
PROBLEMPark/Neutral position switch system
DESCRIPTION
When the Park/Neutral position switch system malfunctions, a defective Park/Neutral position switch circuit or a defective ignition switch circuit is suspected.
PROBABLE CAUSE OF TROUBLE
- Defective Park/Neutral position switch
- Defective connector
- Defective ignition switch
- Defective transaxle control module

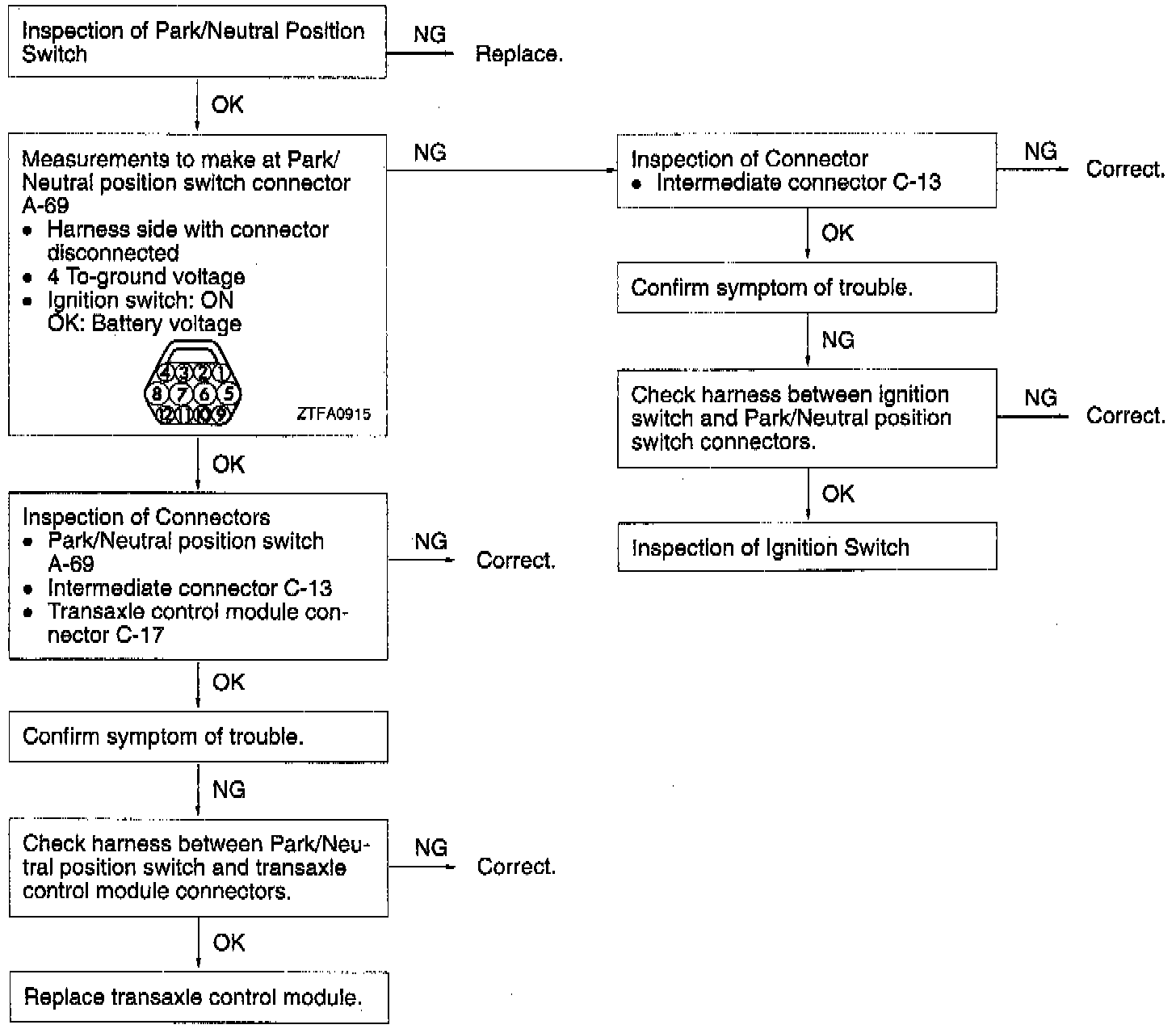

DIAGNOSTIC CHART
