Steering/Drivetrain - Power Steering/Hub Service Rev.

NUMBER: 26-08-96G

GROUP: Miscellaneous

DATE: August, 1996

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

Models:
1995 Colt/Summit Wagon - Publication Number 81-270-5113

DESCRIPTION OF CHANGES

Revisions to the axle hub service procedures.

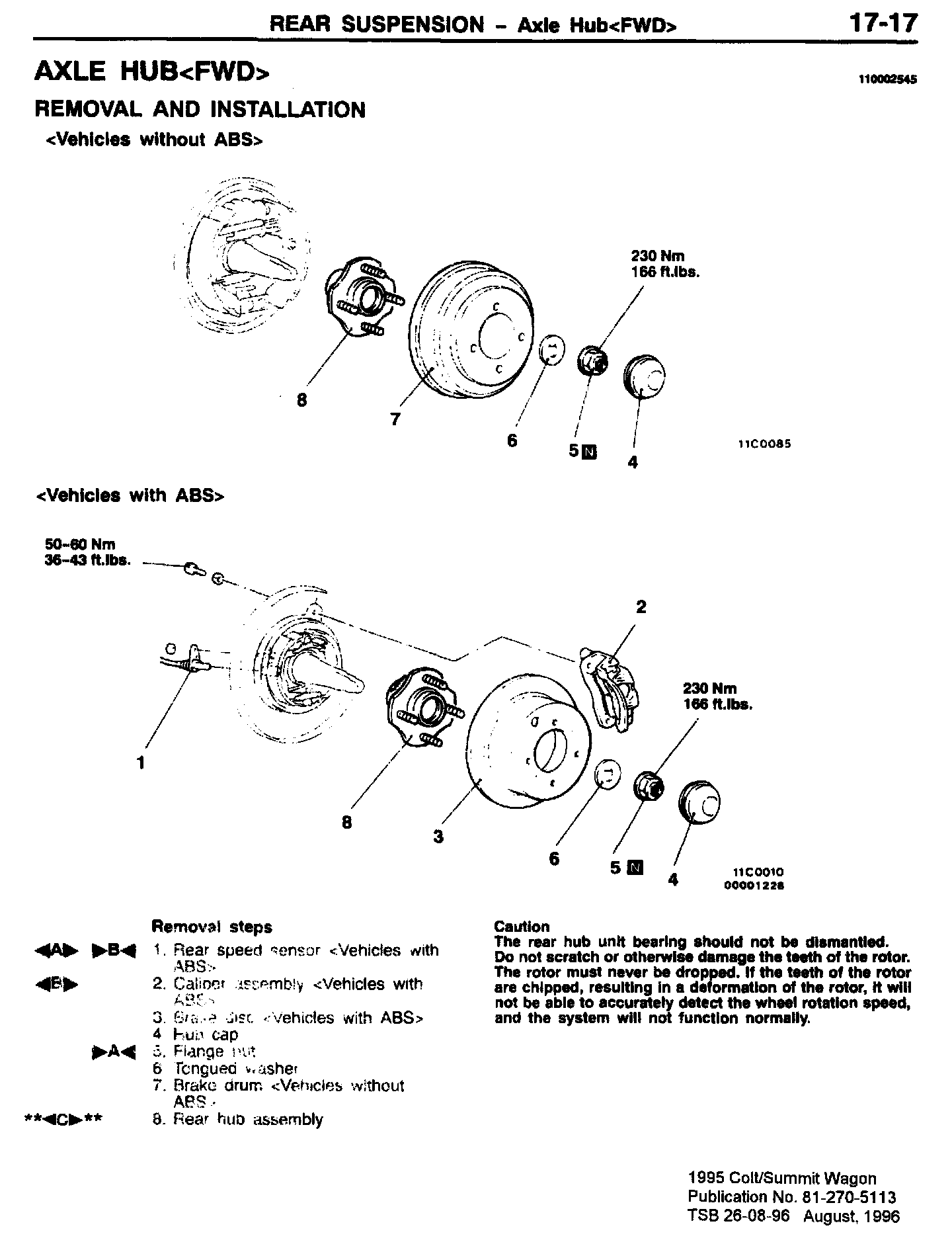

17-17

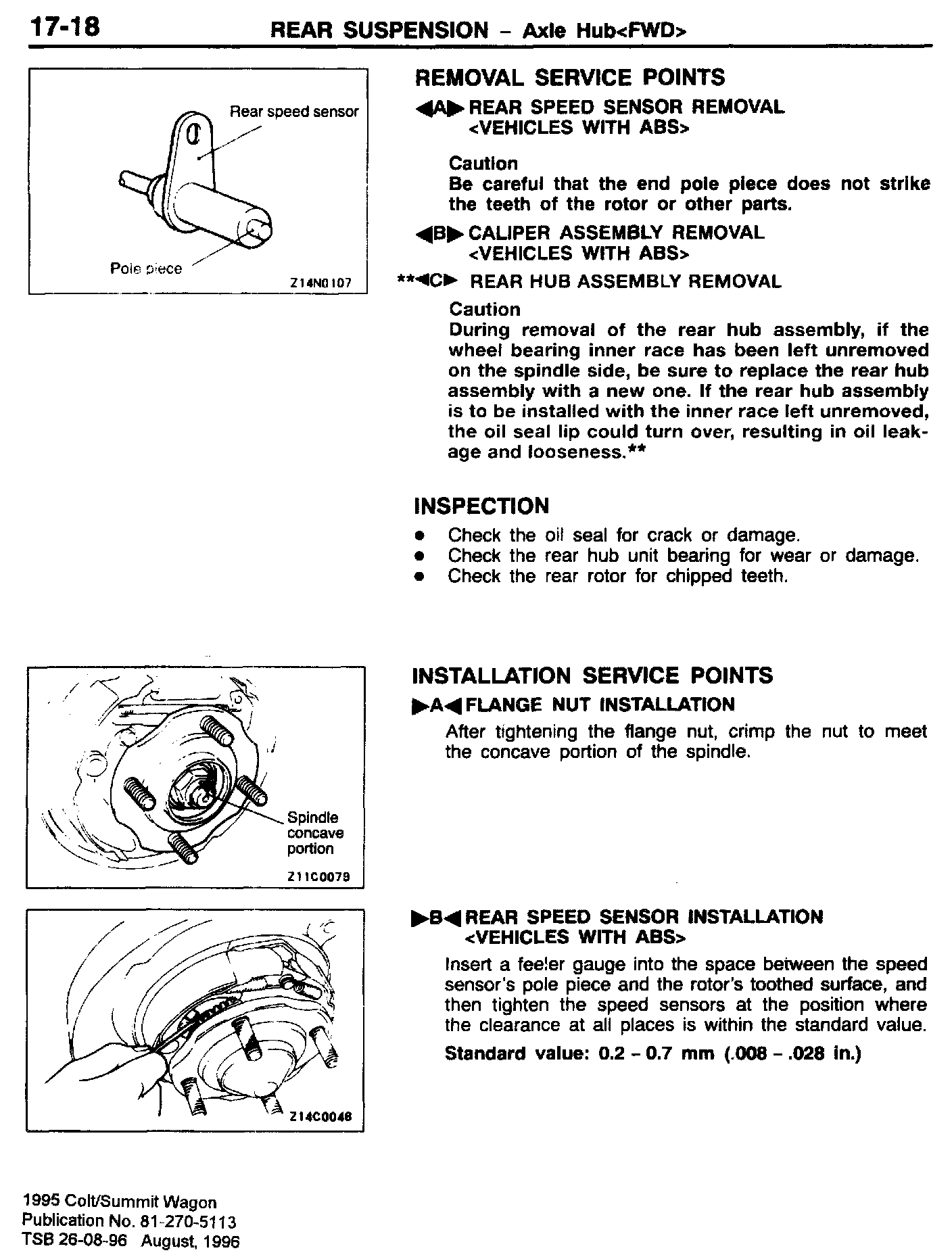

17-18

Revisions to the power steering system graphics.

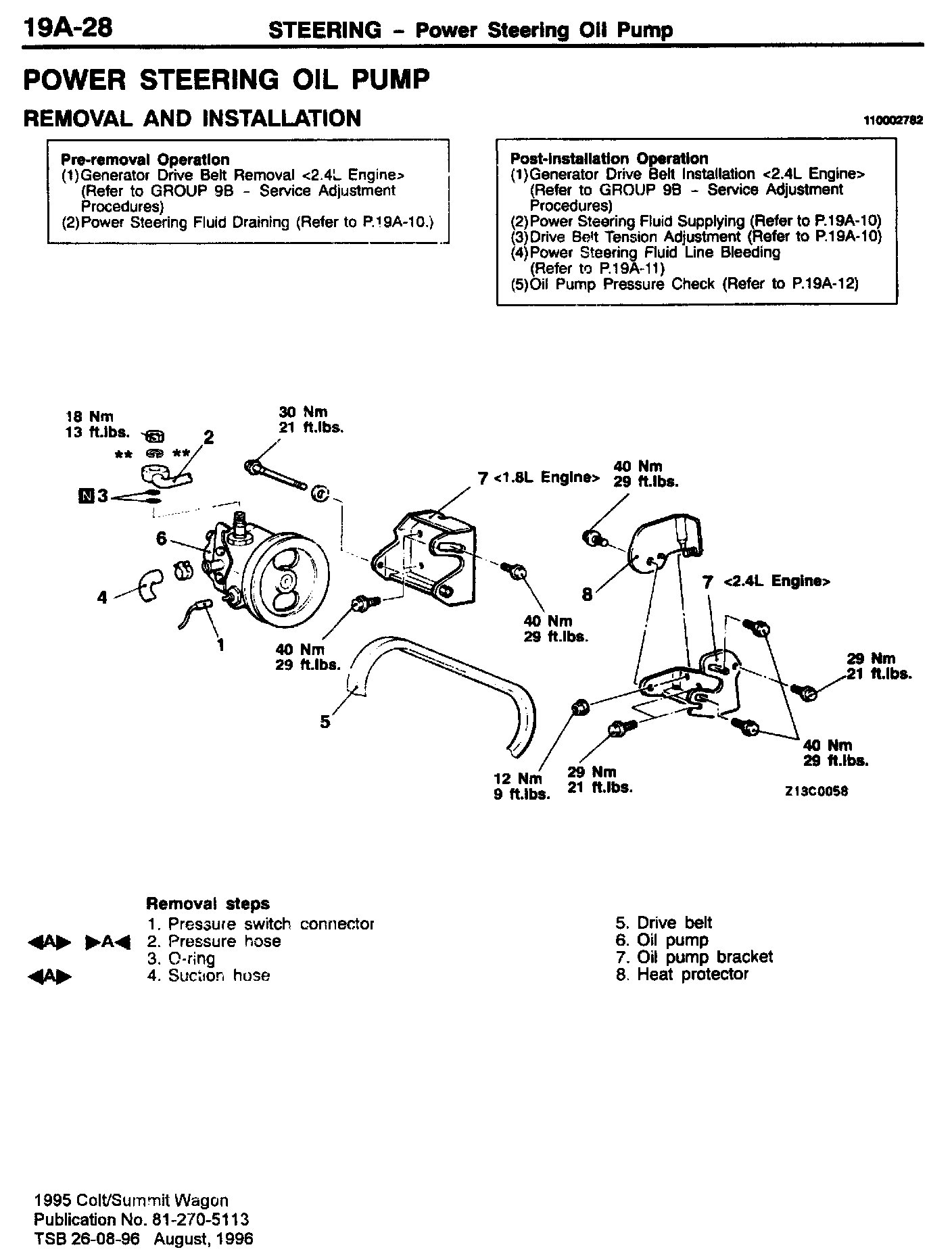

19A-28

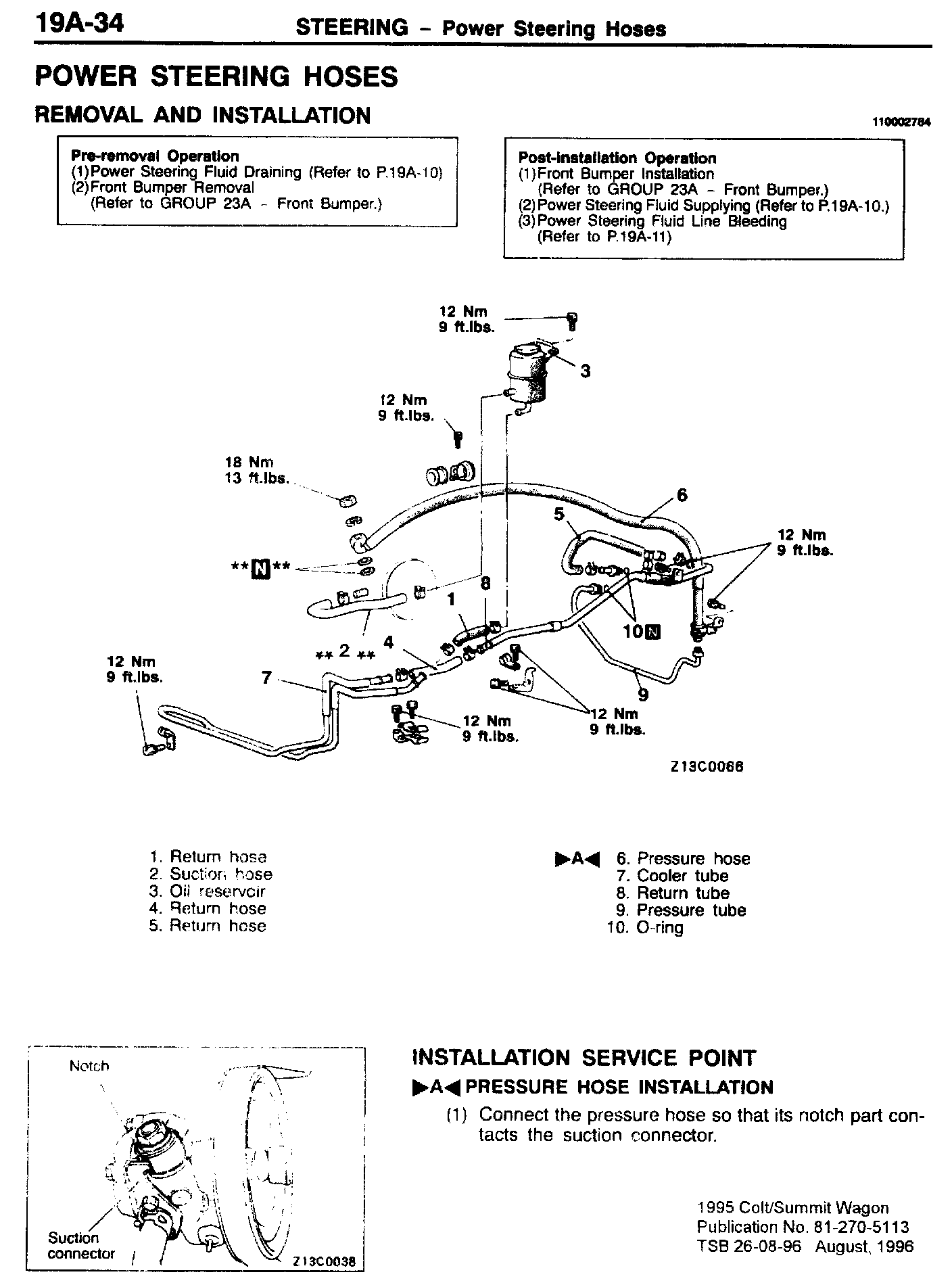

19A-34
