Radiator Cooling Fan Motor
Radiator Cooling Fan Motor
Engine Cooling Fan Wiring Diagram (Part 1 Of 2).:

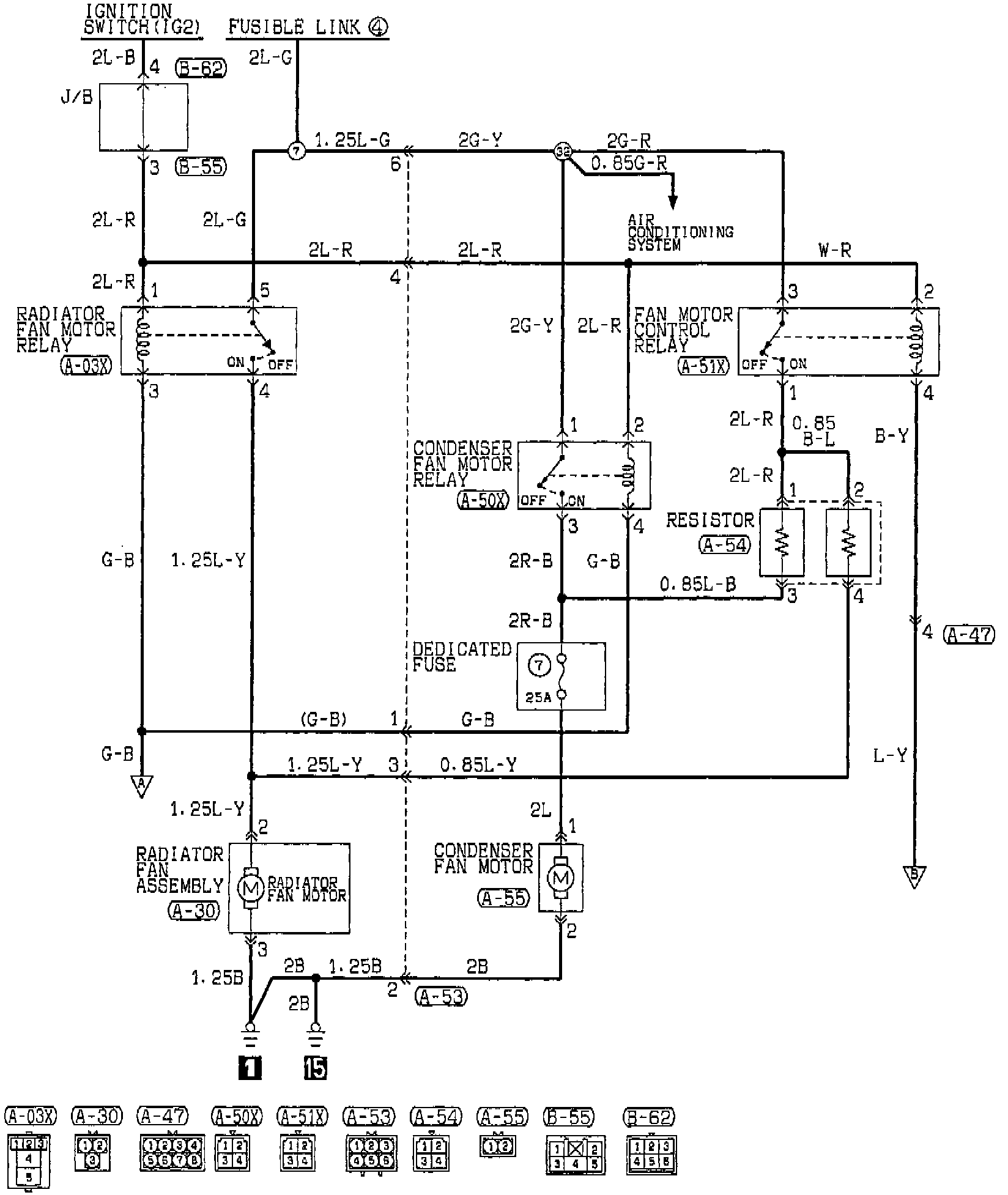

Fig.37 Engine Cooling Fan Wiring Diagram Part 2/2:
