Seat Belt Motor: Service and Repair

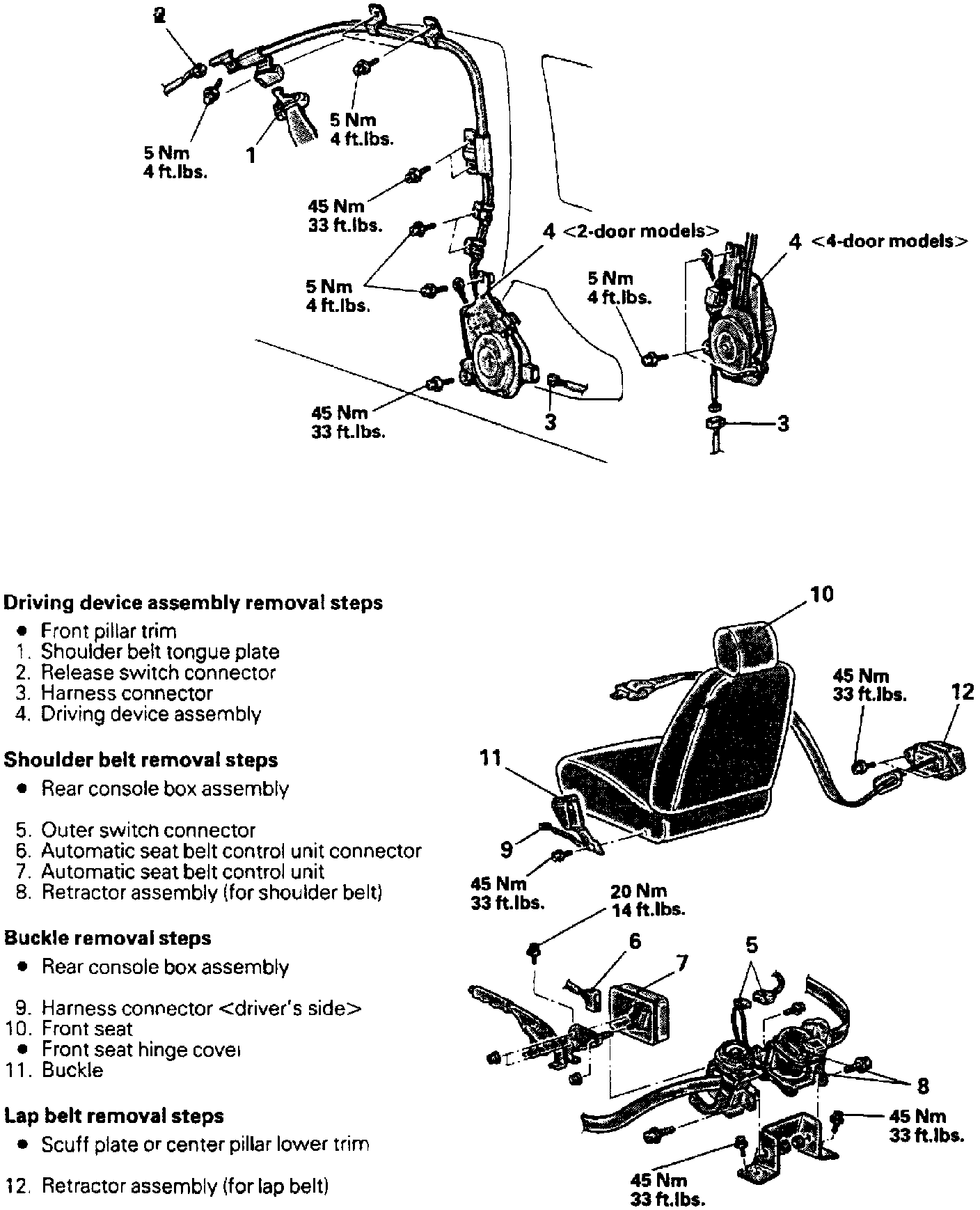

Fig. 48 Automatic Seat Belt System:






Replace automatic seat belt components in numbered sequence shown.
