No Start (NS) Tests
>>
NS-9B Repairing A No Crank Condition
NS-9B Repairing A No Crank Condition

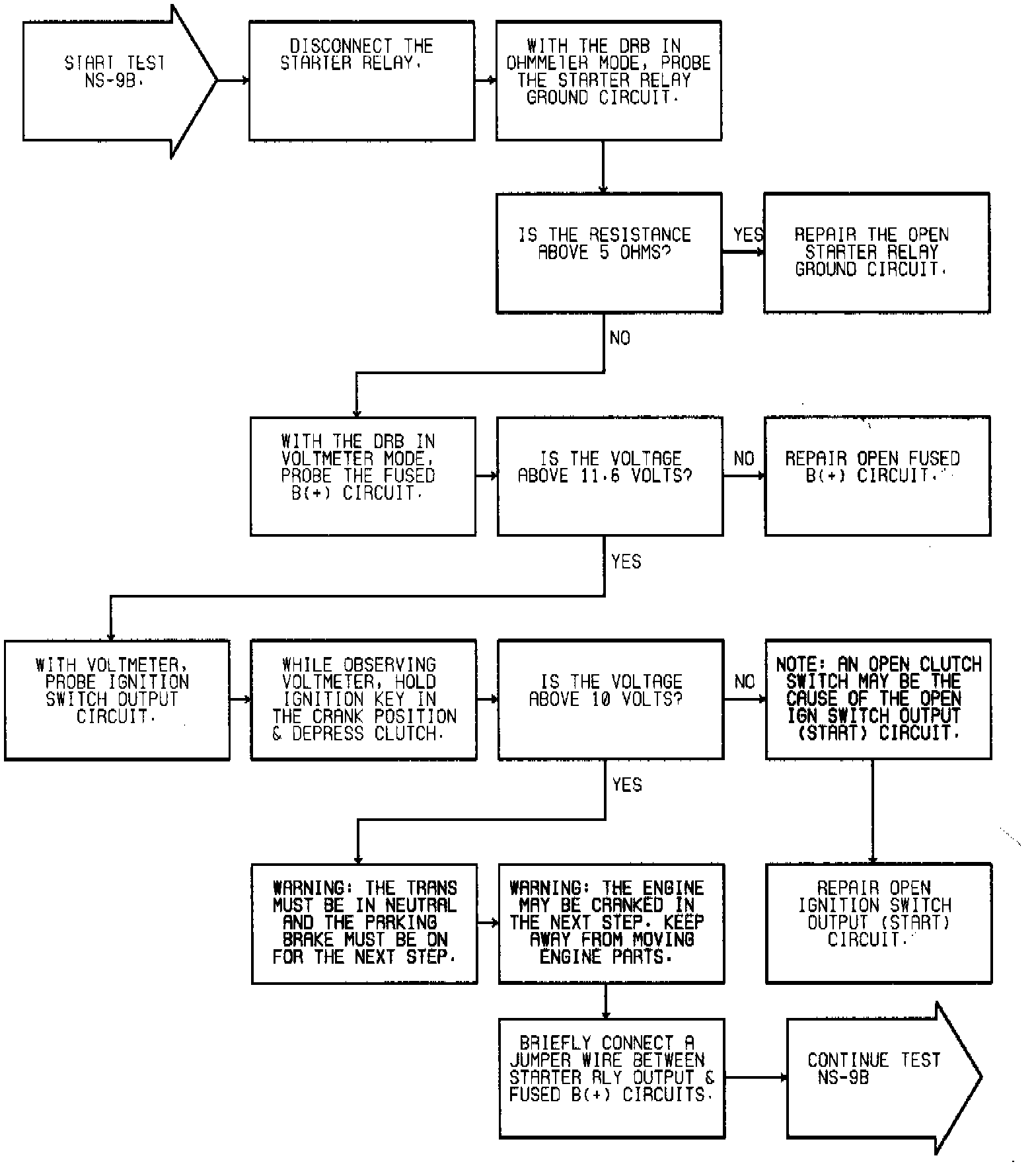

Fig. 58 Test NS-9B: Repairing A No Crank Condition (Part 1 Of 2):

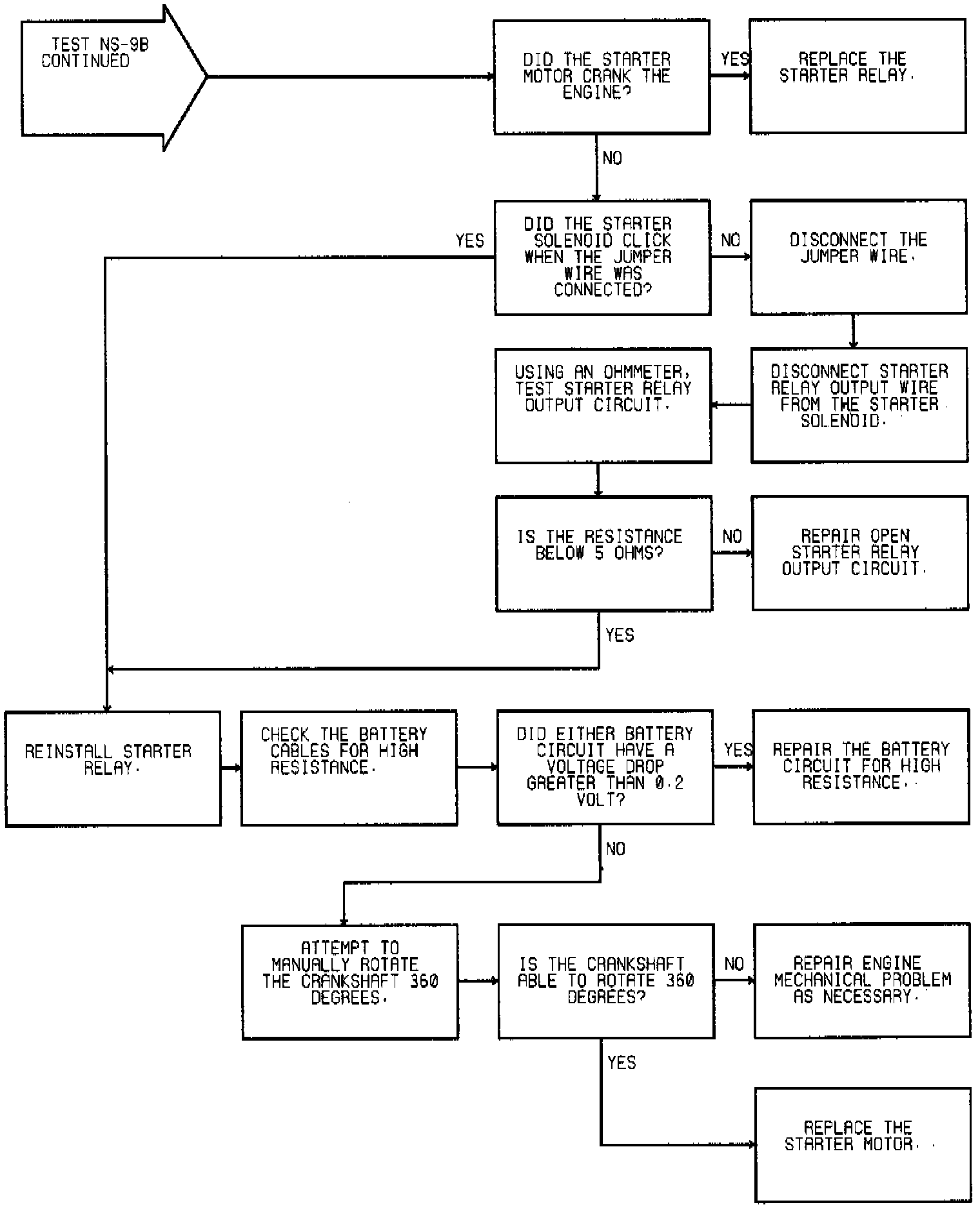

Fig. 58 Test NS-9B: Repairing A No Crank Condition (Part 2 Of 2):
