Home >> Eagle >> 1995 >> Summit L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Diagrams >> Mechanical Diagrams >> Junction Block (J/B)

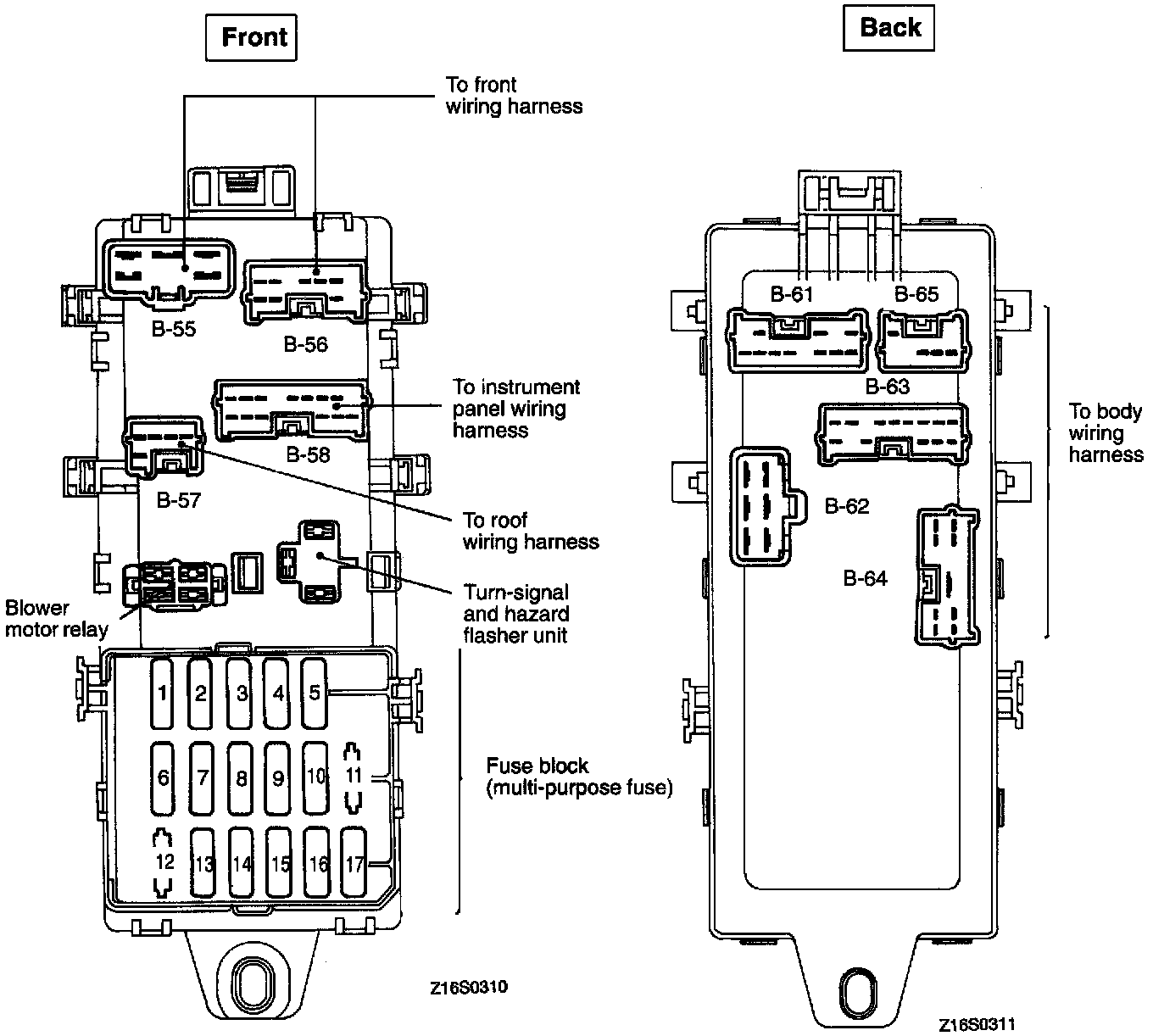

Junction Block (J/B)

Junction Block:
