2-Door & 4-Door Models For U.S.

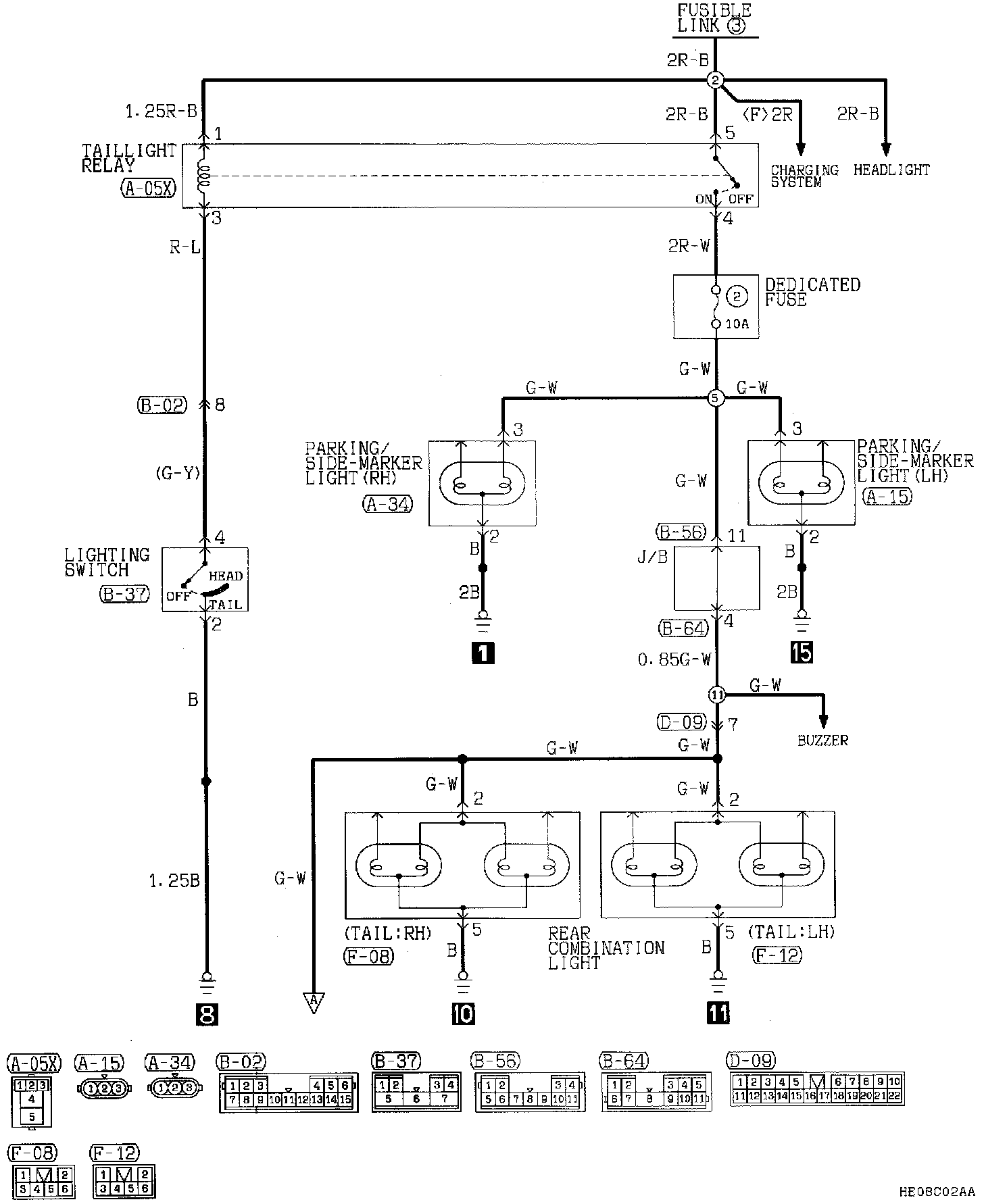

Taillight, Parking Light, Side Marker And License Plate Light Circuit (Part 1 Of 2):

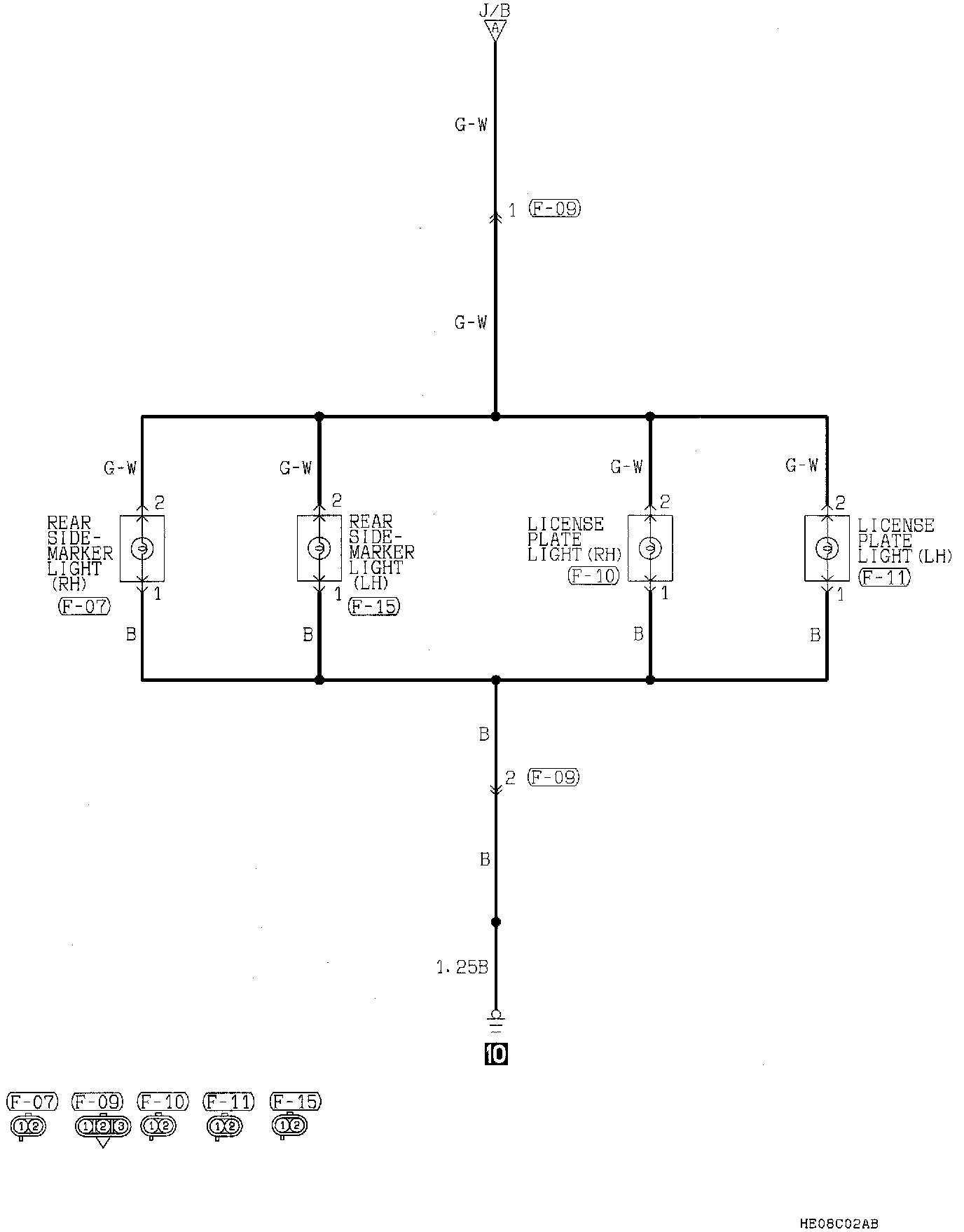

Taillight, Parking Light, Side Marker And License Plate Light Circuit (Part 2 Of 2):
