Eagle
>>
1995
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Brake Lamp
>>
2-Door & 4-Door Models For U.S.
2-Door & 4-Door Models For U.S.

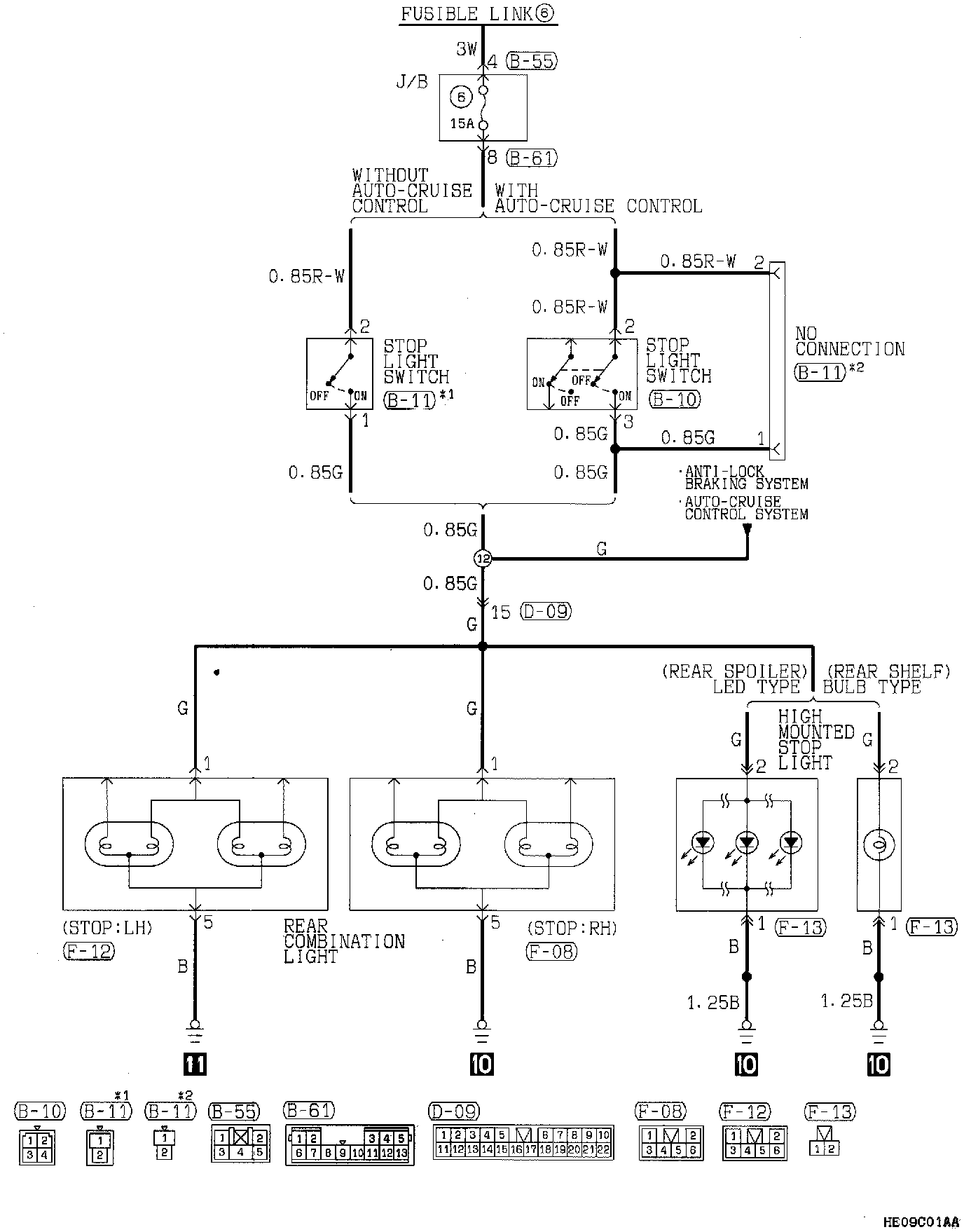

Stop Light Circuit:
