Home >> Eagle >> 1995 >> Summit L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Air Bag Systems >> Schematic Diagrams

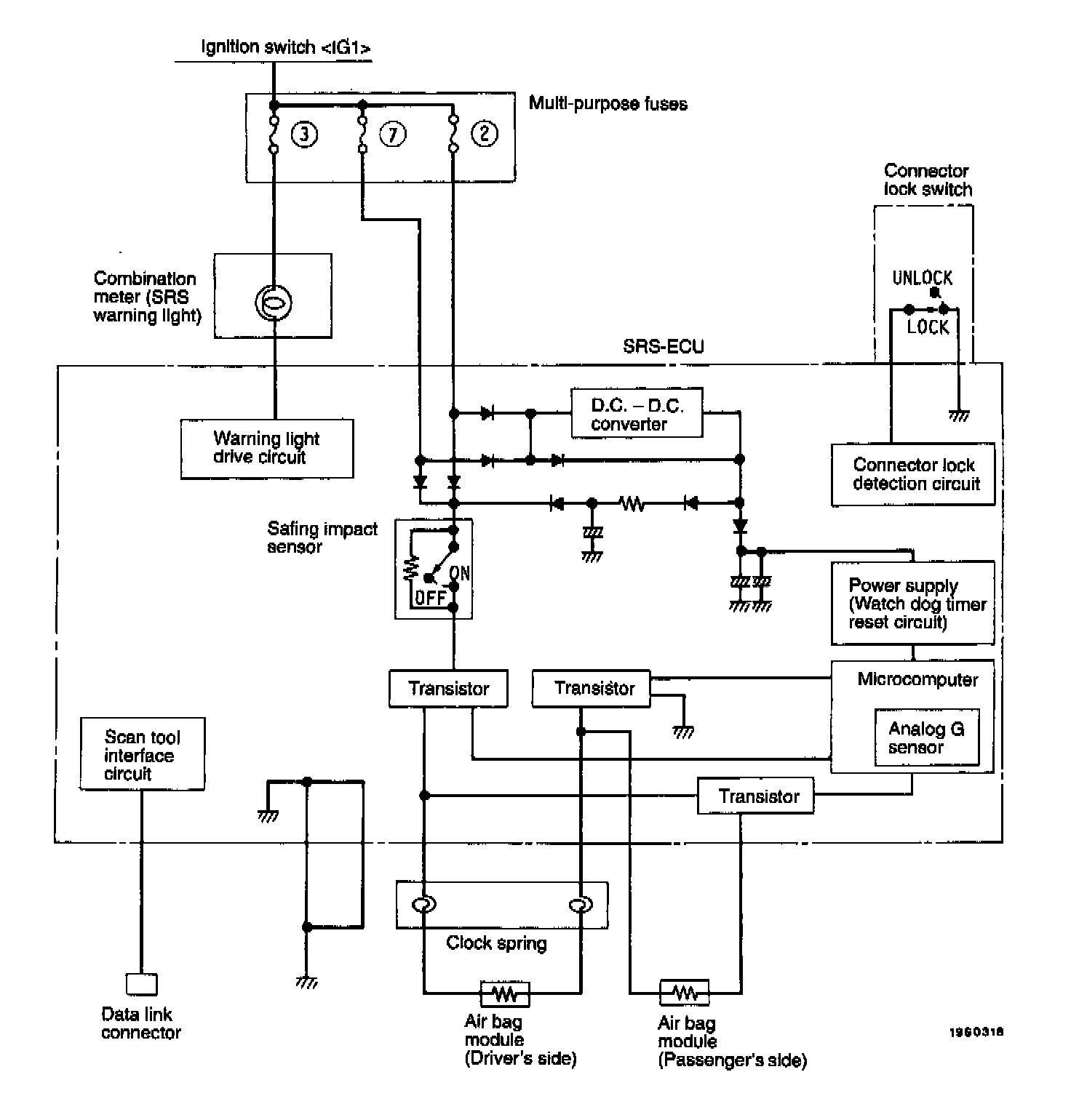

Schematic Diagrams

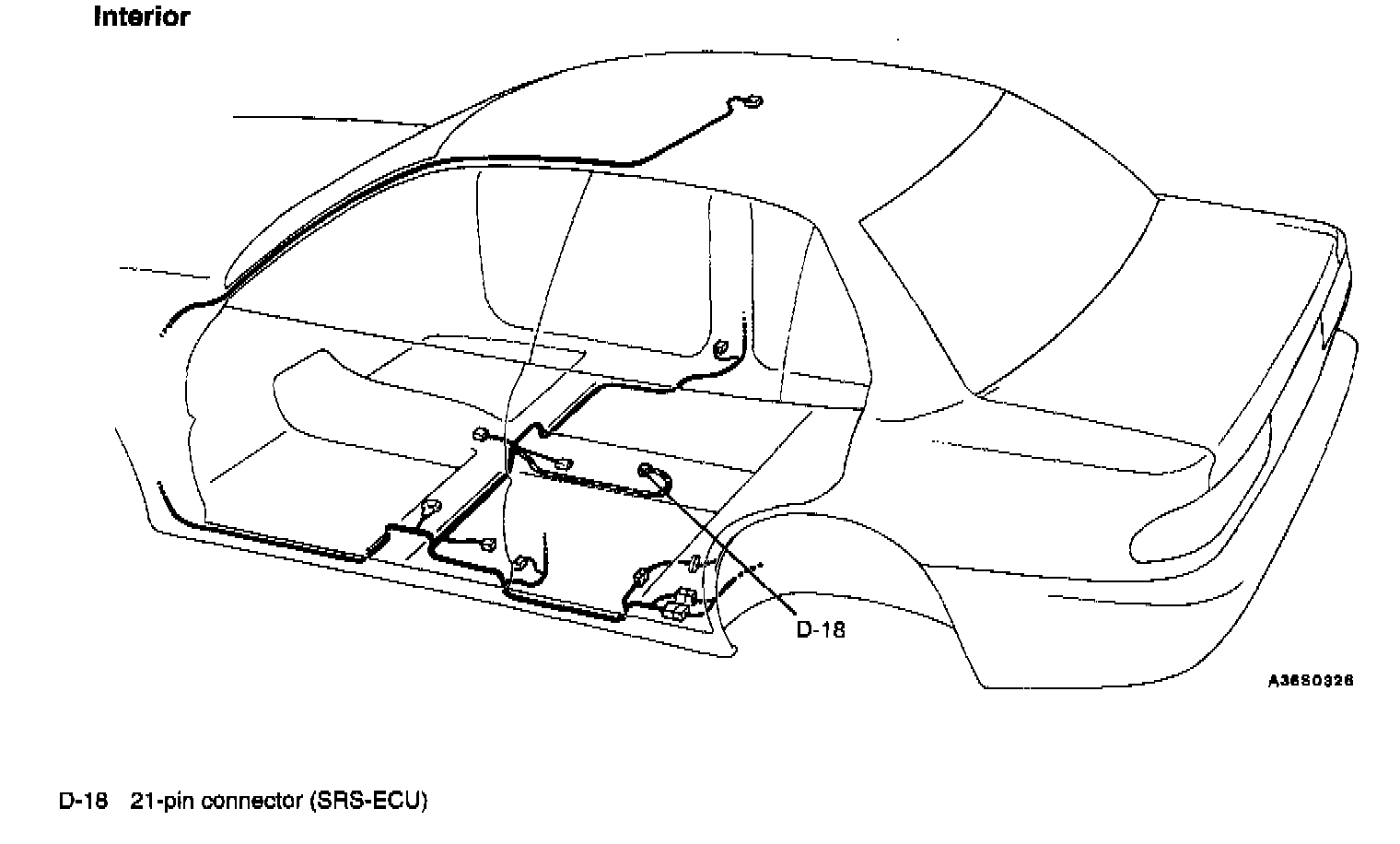

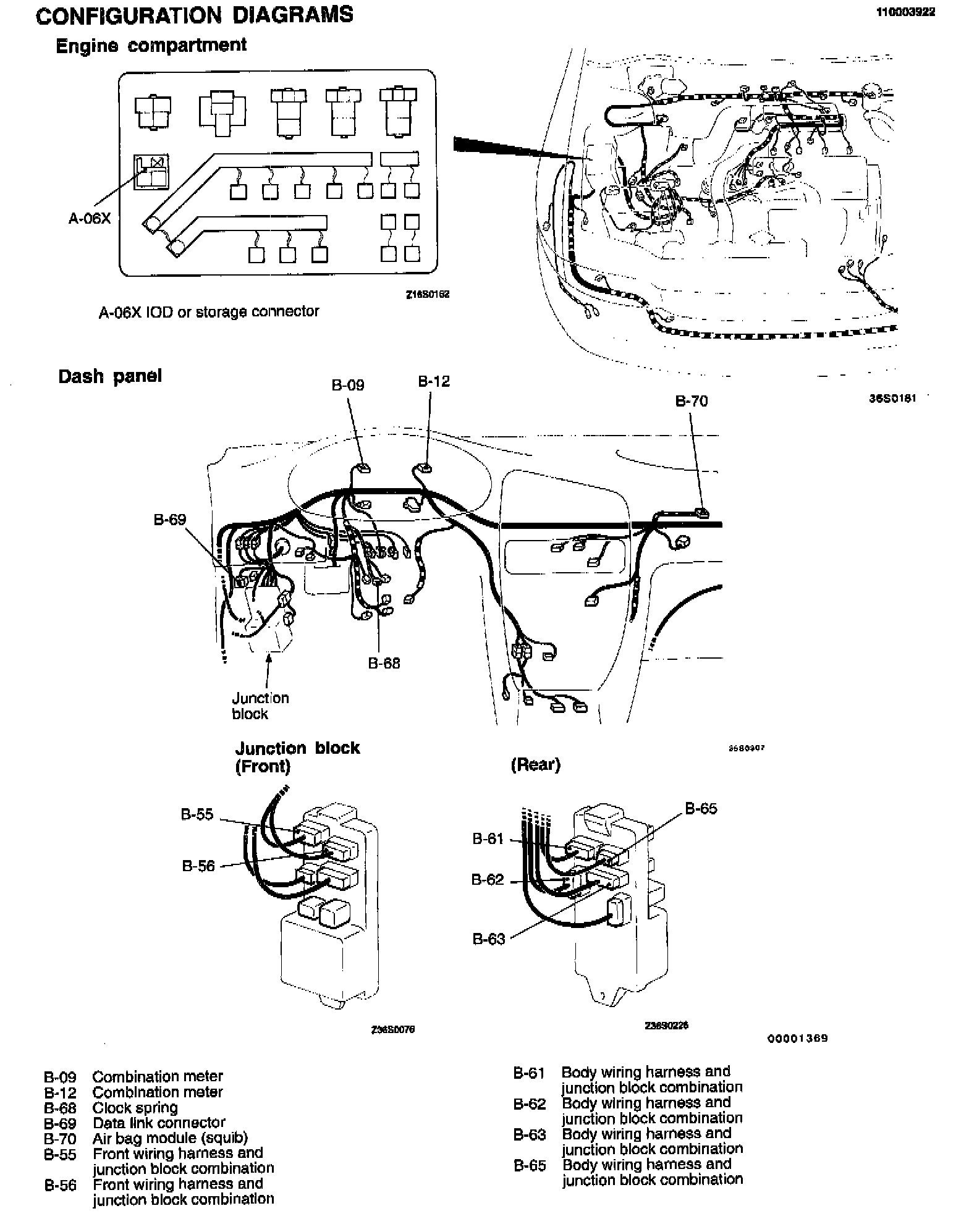

Configuration Diagrams:
