Electrical Diagrams

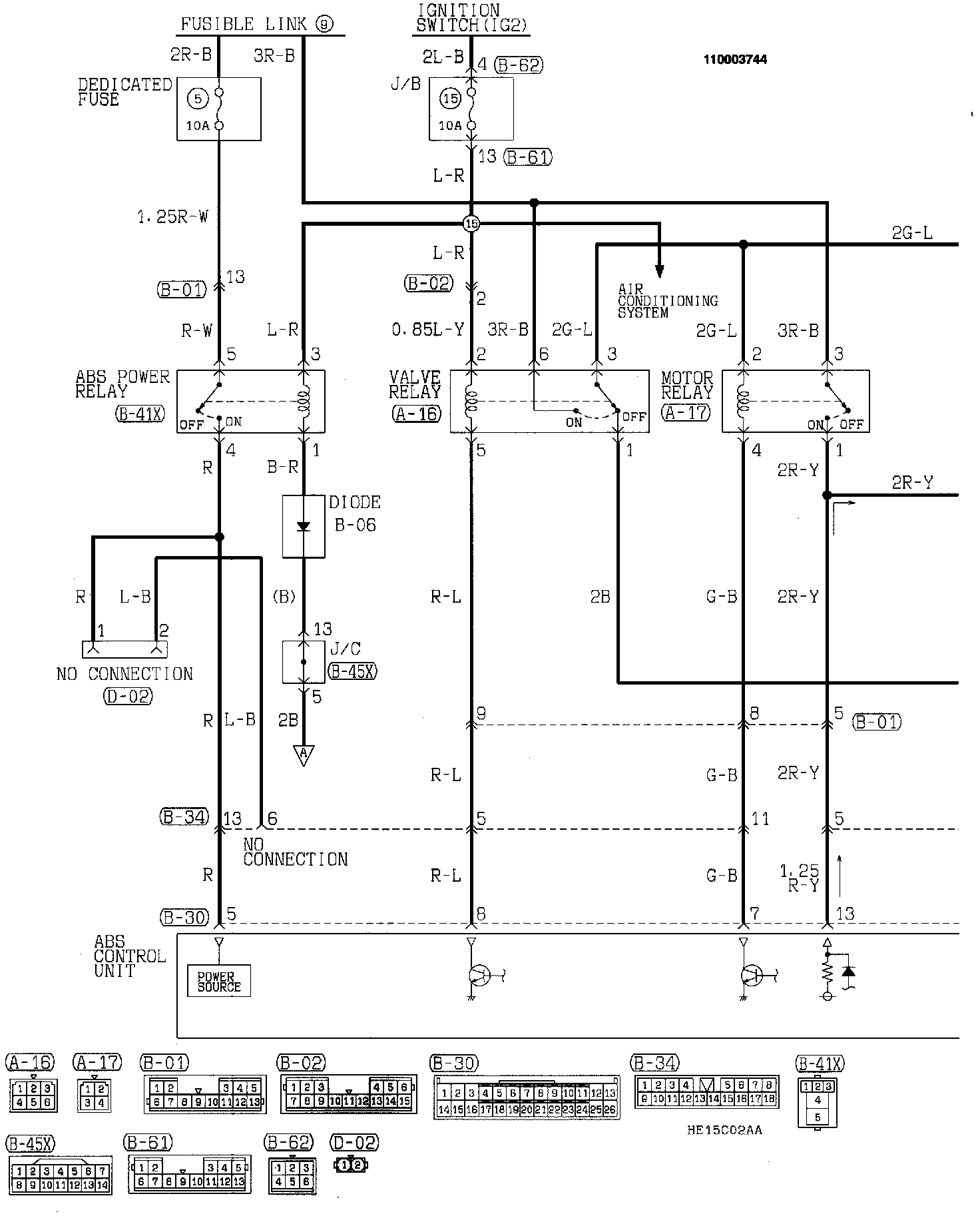

Antilock Braking System (ABS) Circuit (Part 1 Of 5):

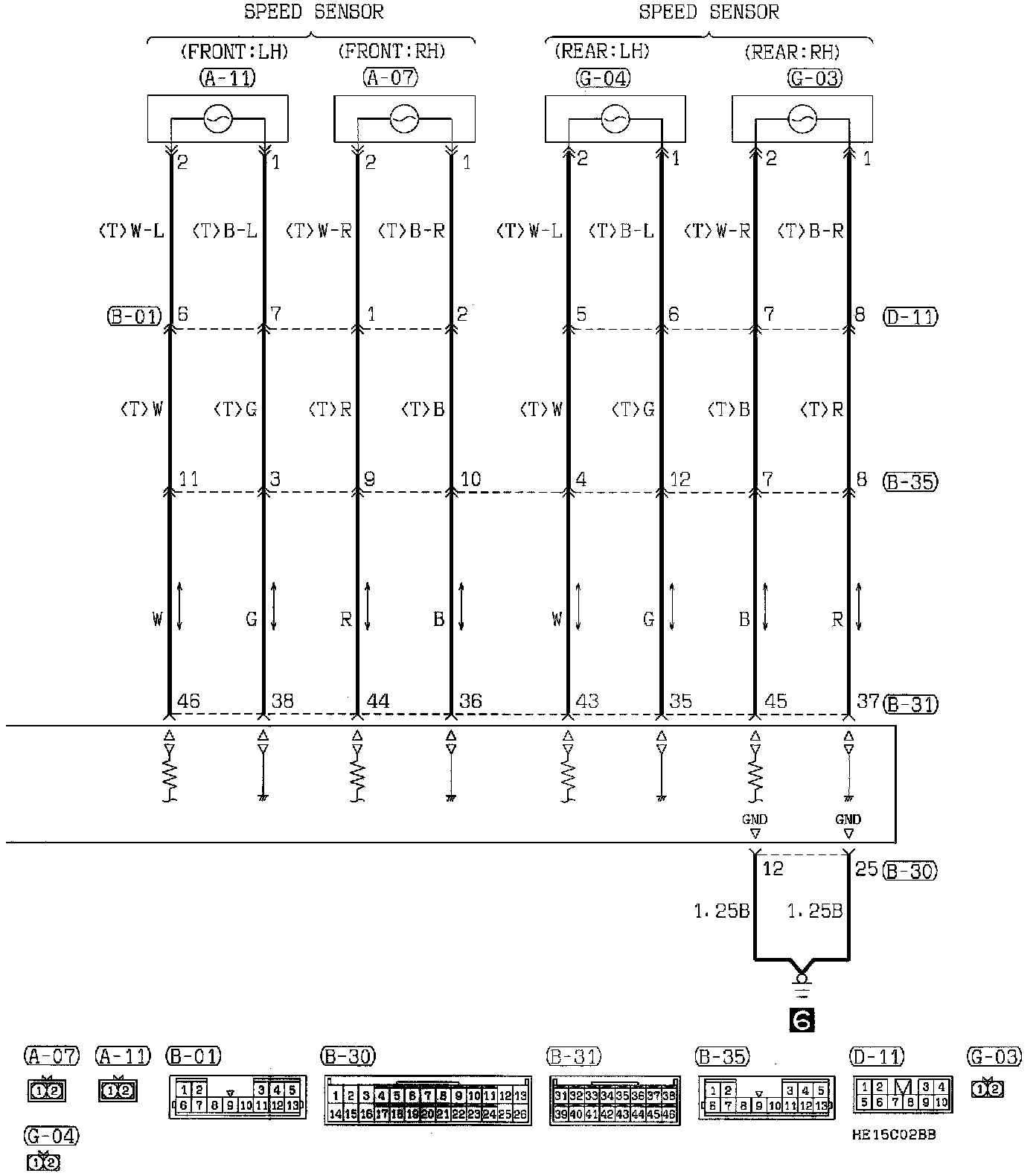

Antilock Braking System (ABS) Circuit (Part 2 Of 5):

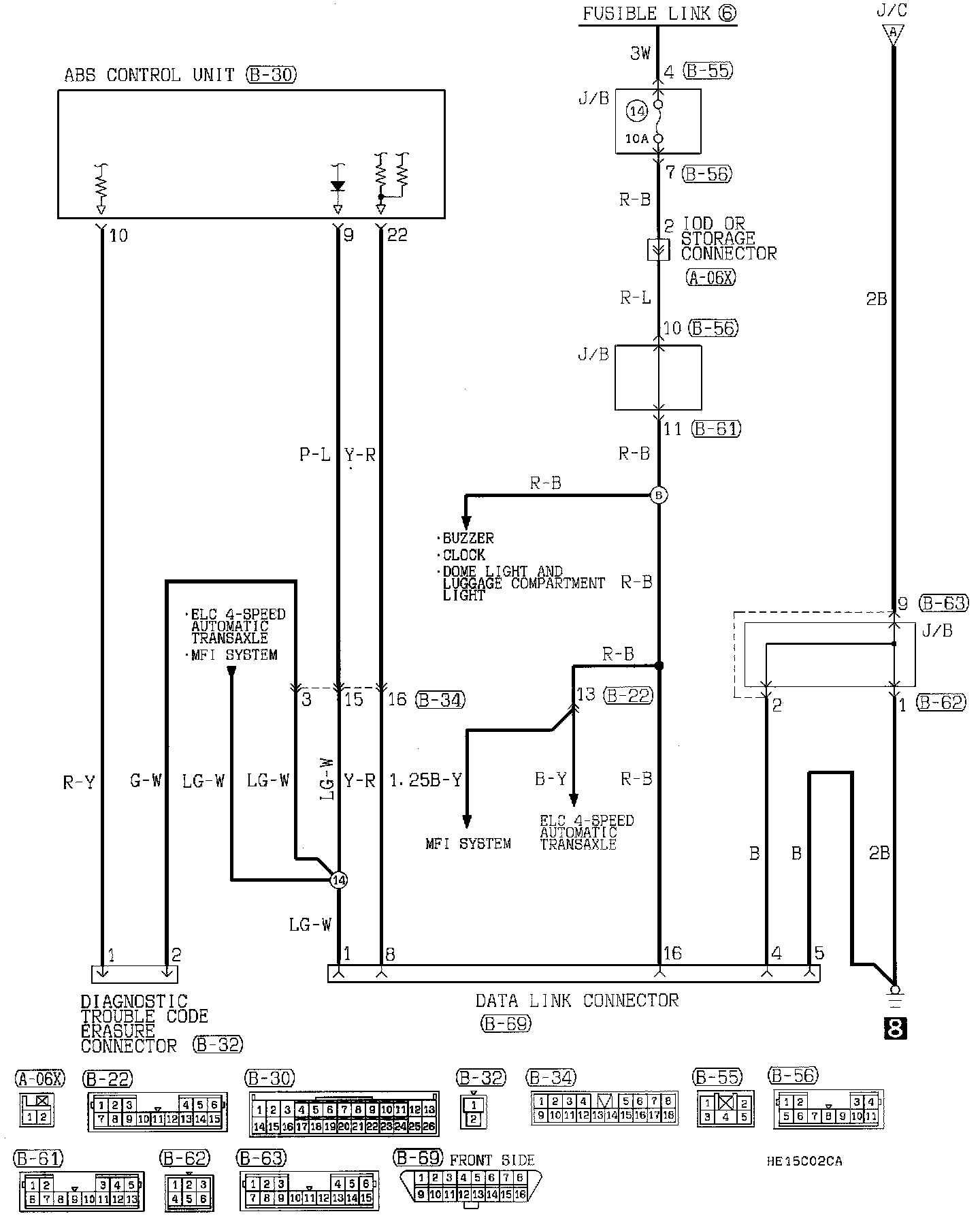

Antilock Braking System (ABS) Circuit (Part 3 Of 5):

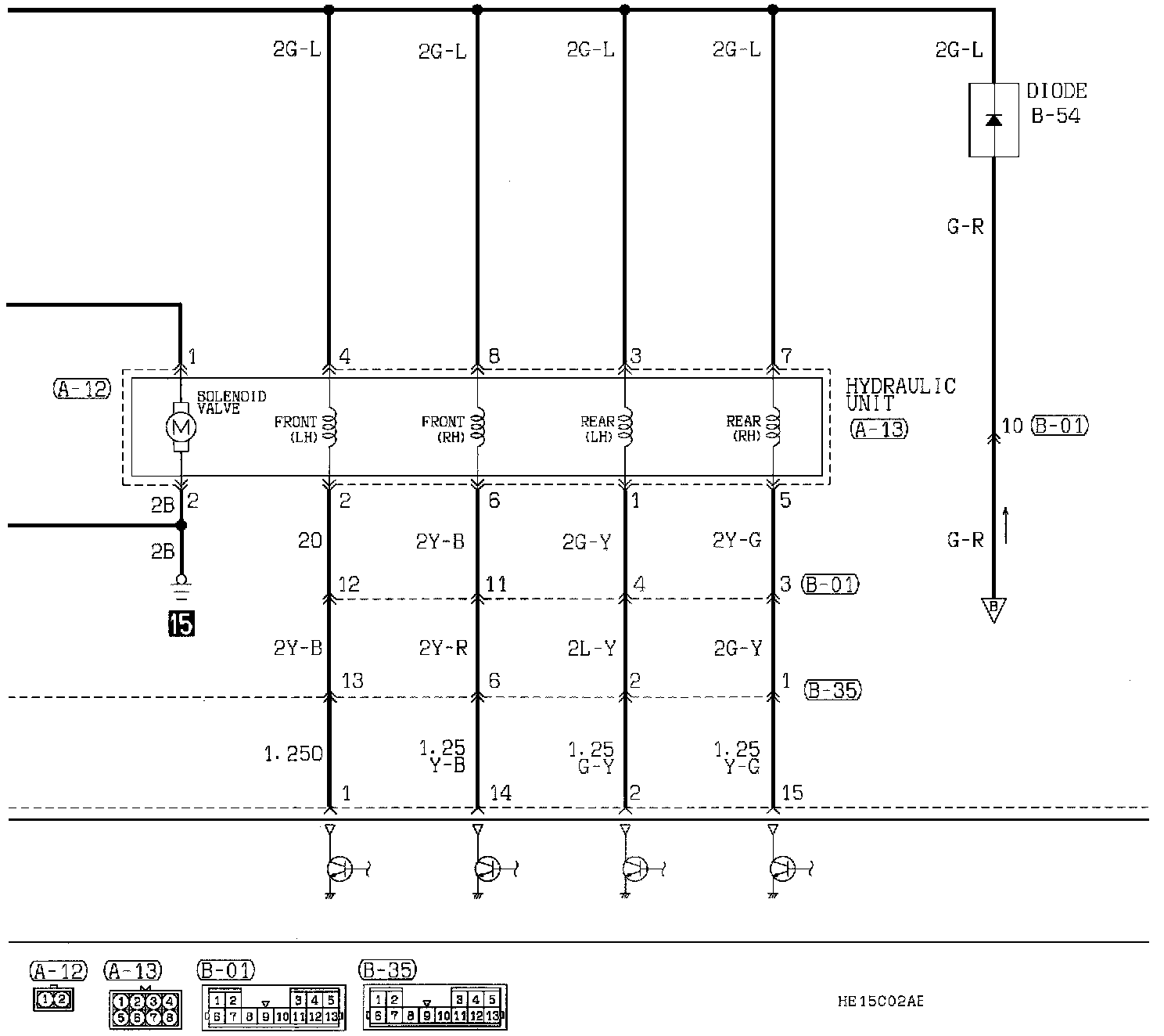

Antilock Braking System (ABS) Circuit (Part 4 Of 5):

Antilock Braking System (ABS) Circuit (Part 5 Of 5):
