Eagle
>>
1995
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brakes / Traction Control Systems
>>
Test 8 - No Communication With Scan Tool For All Systems
Test 8 - No Communication With Scan Tool For All Systems

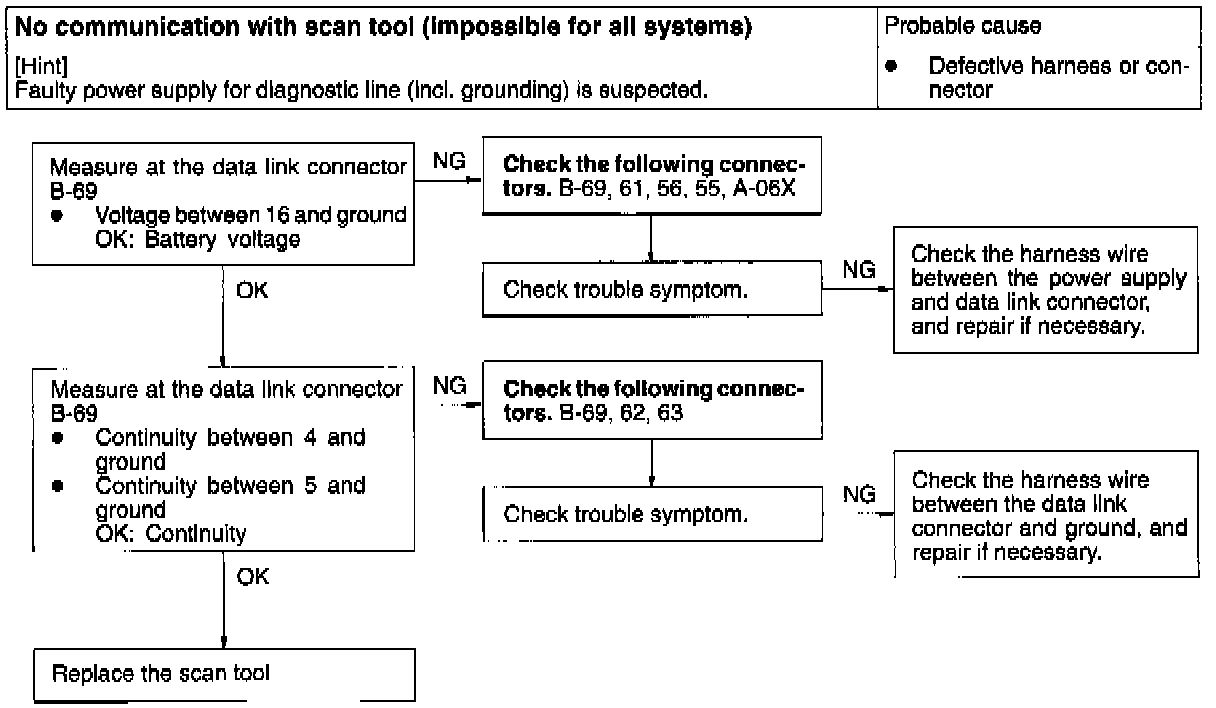

Fig 73 Test 8: No Communication With Scan Tool/Impossible For All Systems:
