Home
>>
Eagle
>>
1993
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Relay Box
>>
Relay Block
Relay Block

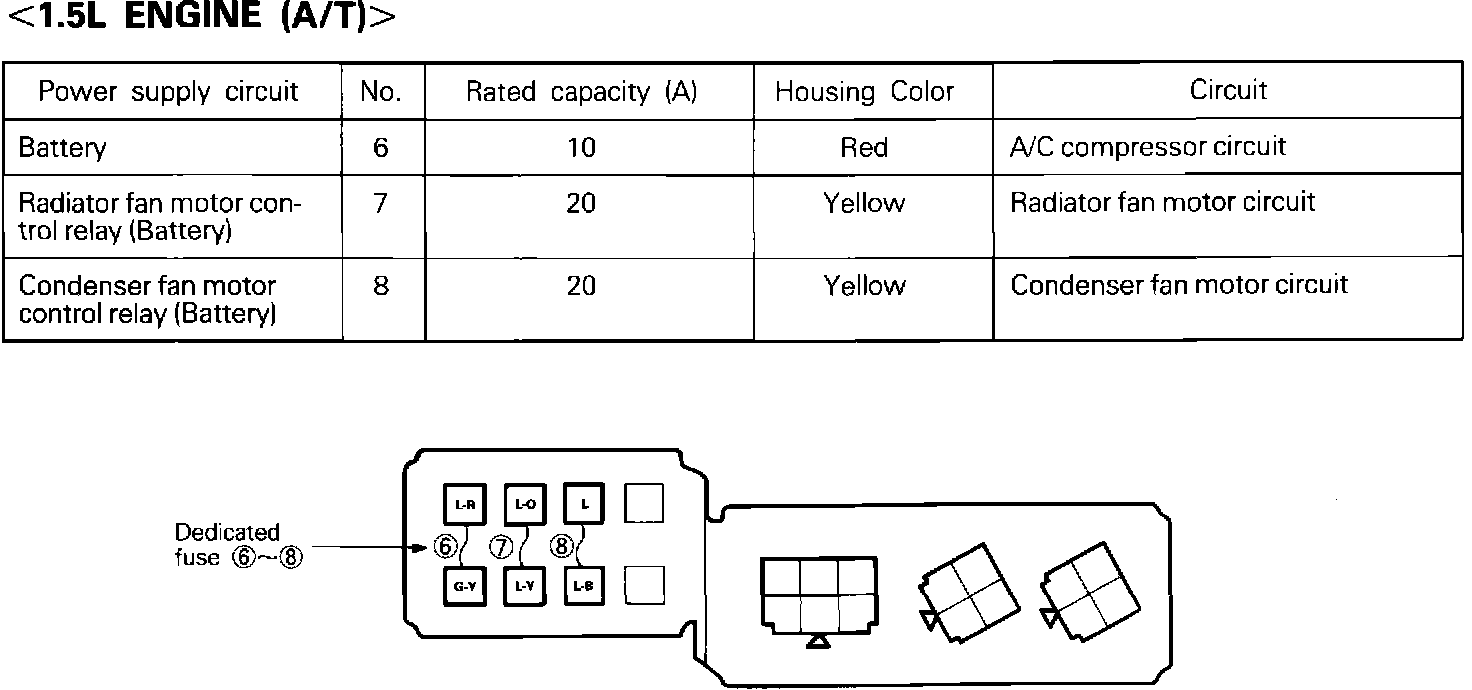

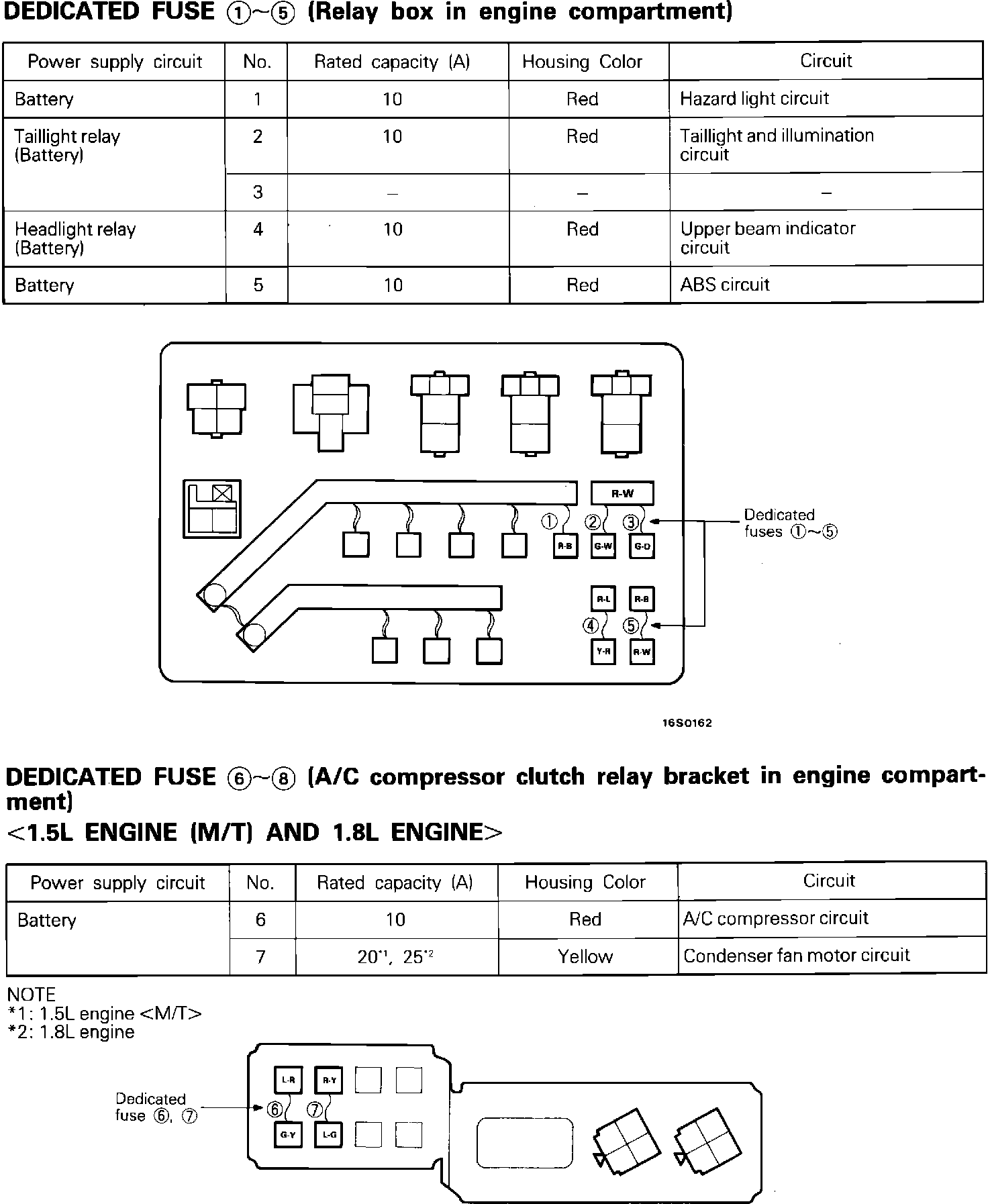

Dedicated Fuses:
Dedicated Fuses:
