Eagle
>>
1991
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Fuel Delivery and Air Induction
>>
Diagrams
>>
Mechanical Diagrams
>>
With Cruise Control
With Cruise Control

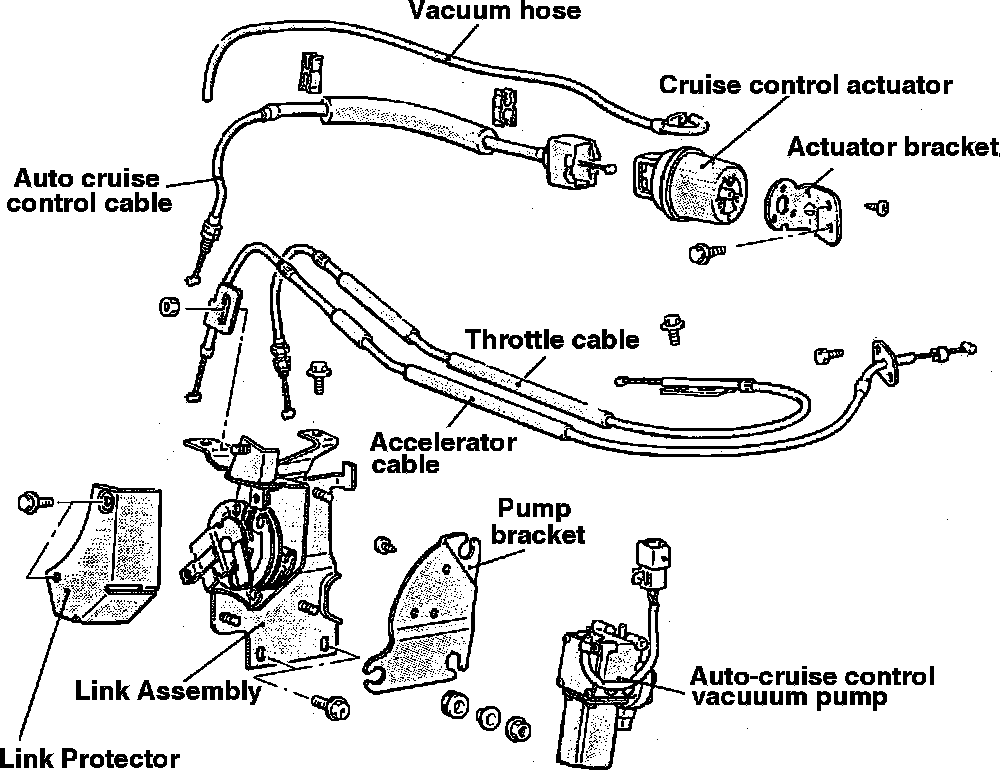

Accelerator And Throttle Cable With Cruise Control:
