Home
>>
Eagle
>>
1991
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Trunk Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

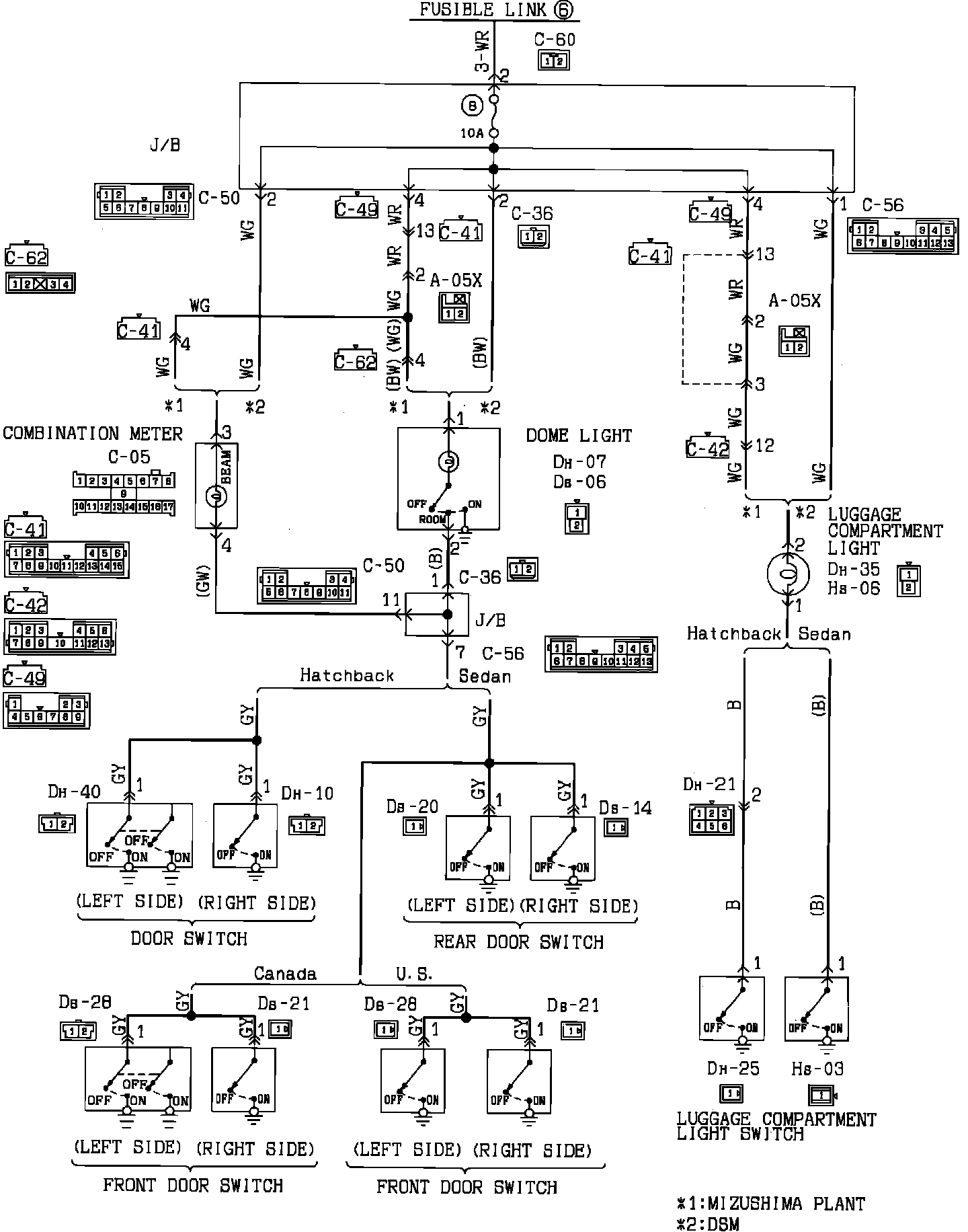

Dome & Luggage Compartment Light:
