Eagle
>>
1991
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Cluster / Carrier
>>
Indicator Light
Indicator Light

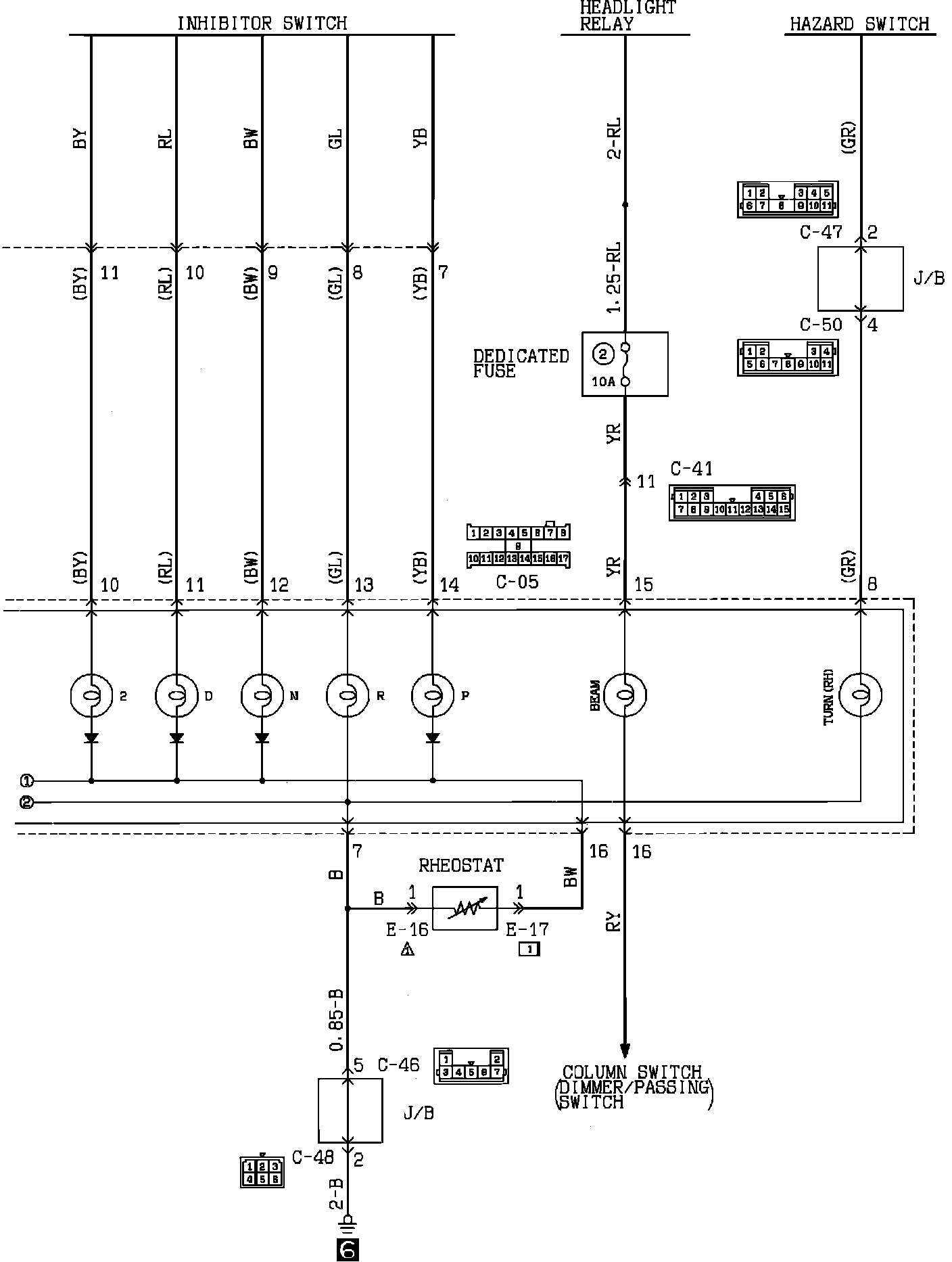

Warning & Indicators. Indicator Light:

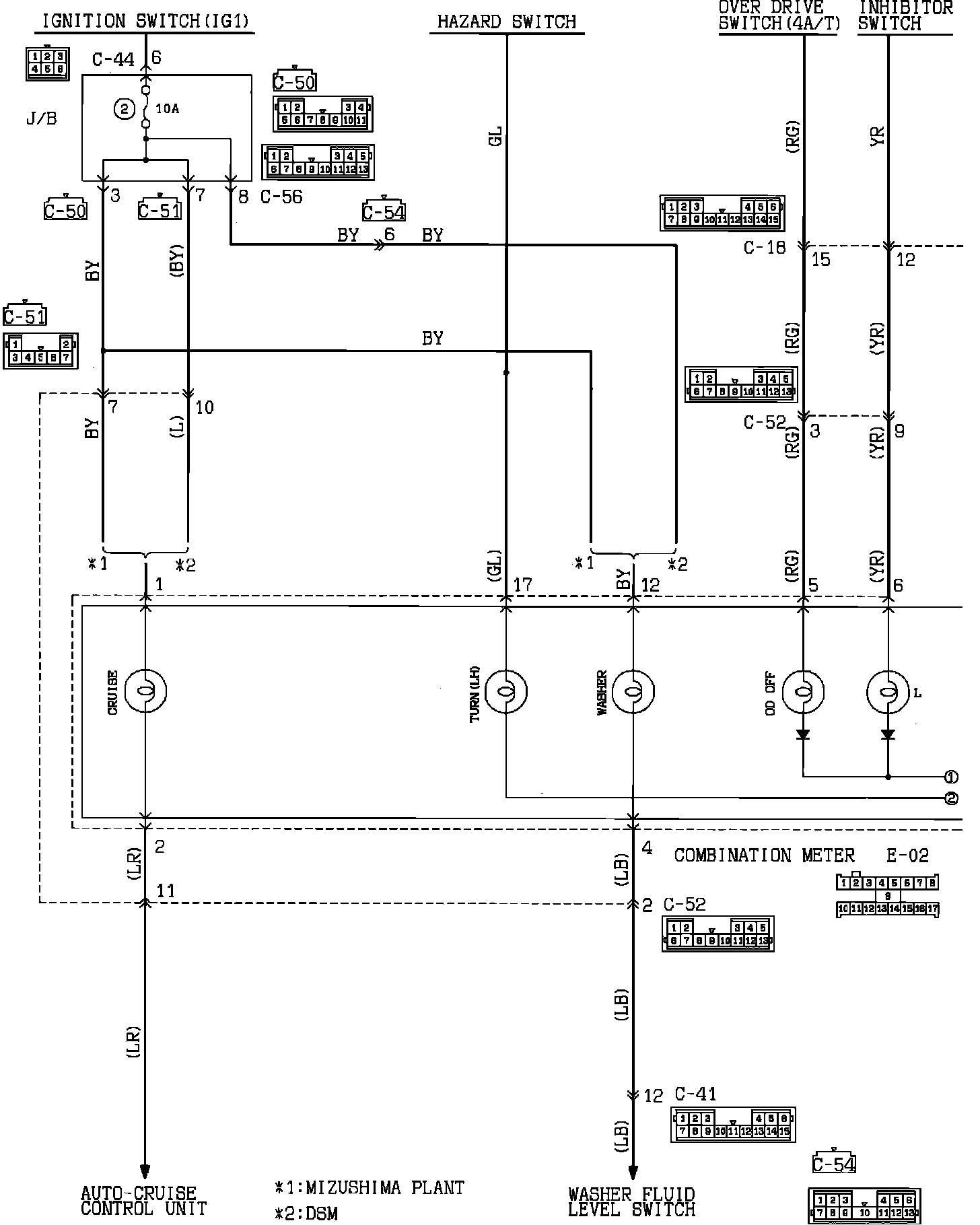

Warning & Indicators. Indicator Light:
