Eagle
>>
1991
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
>>
Junction Block
Junction Block

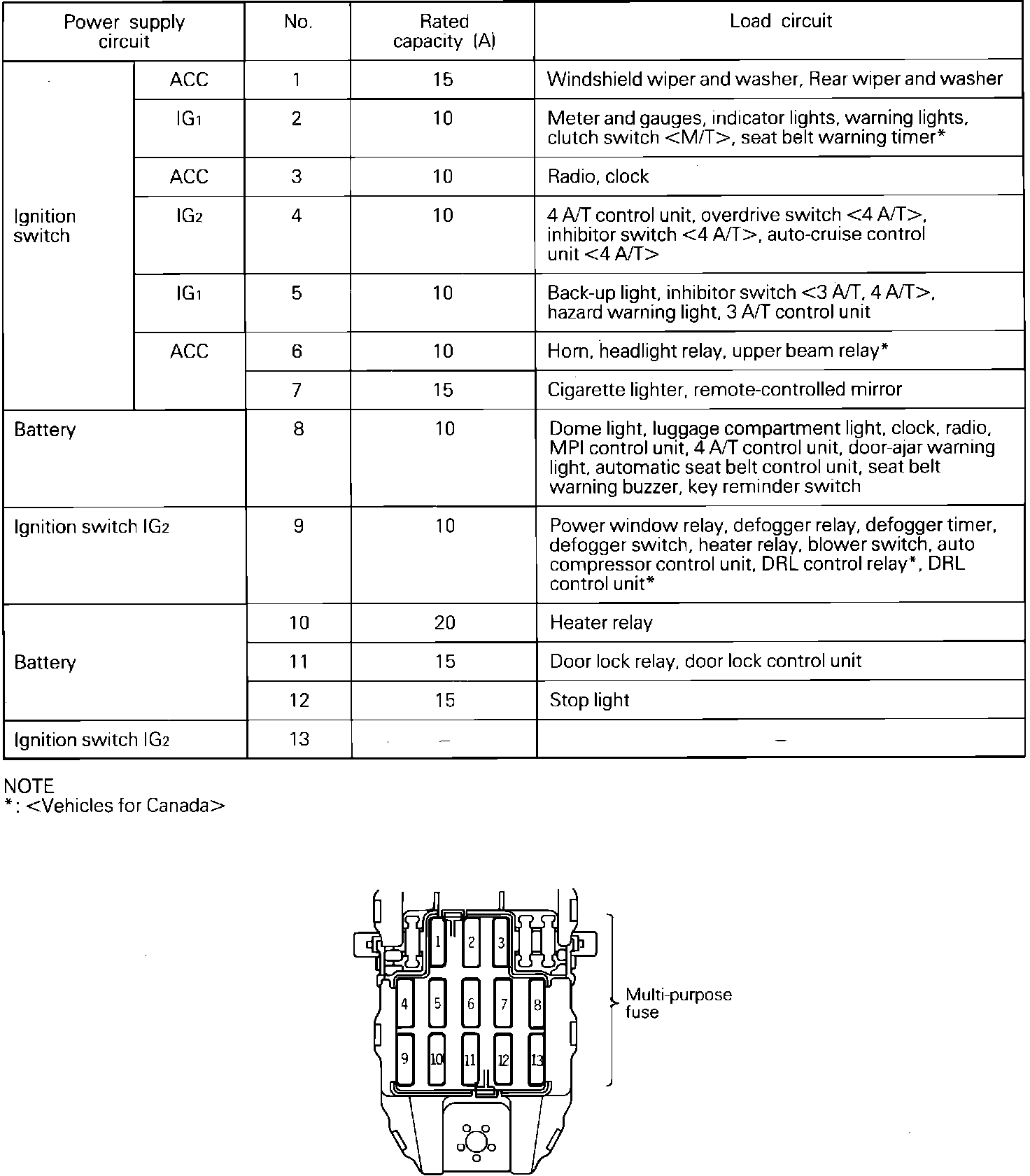

���"Fuse Panel Details. Junction Block Schematic:

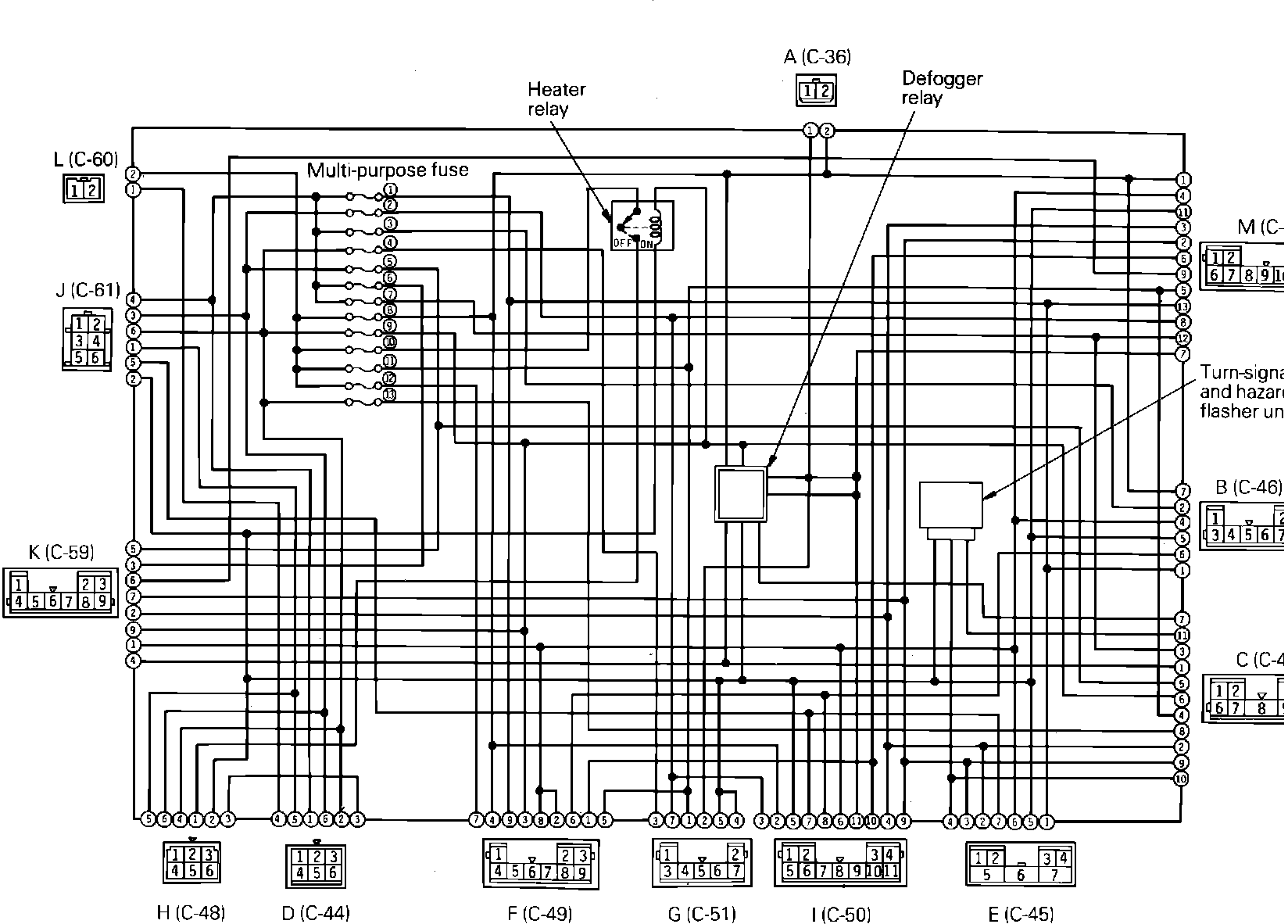

Fuse Panel Details. Junction Block Schematic:

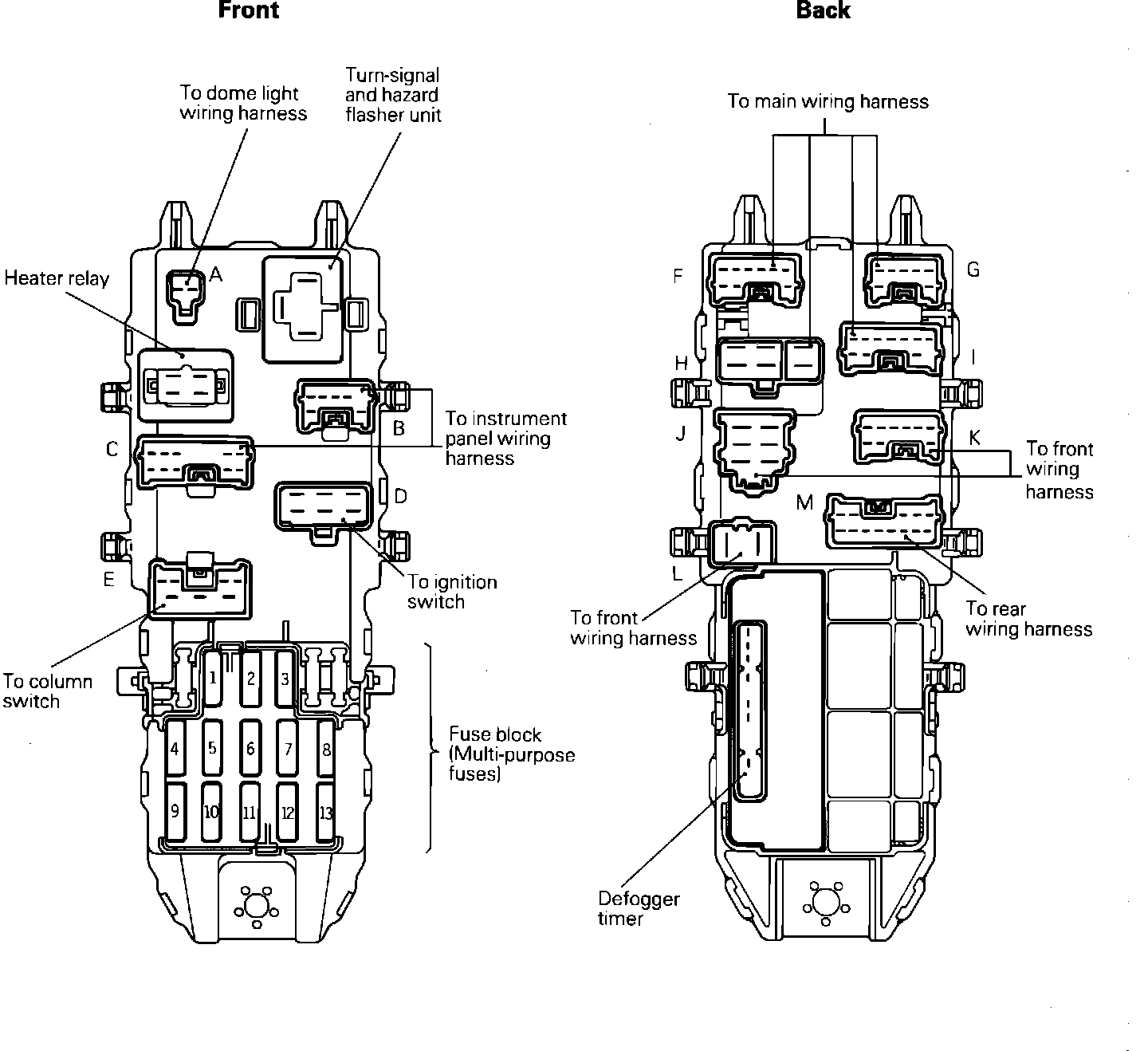

Fuse Panel:
