Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Eagle
>>
1991
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Driveability (DR) Tests
>>

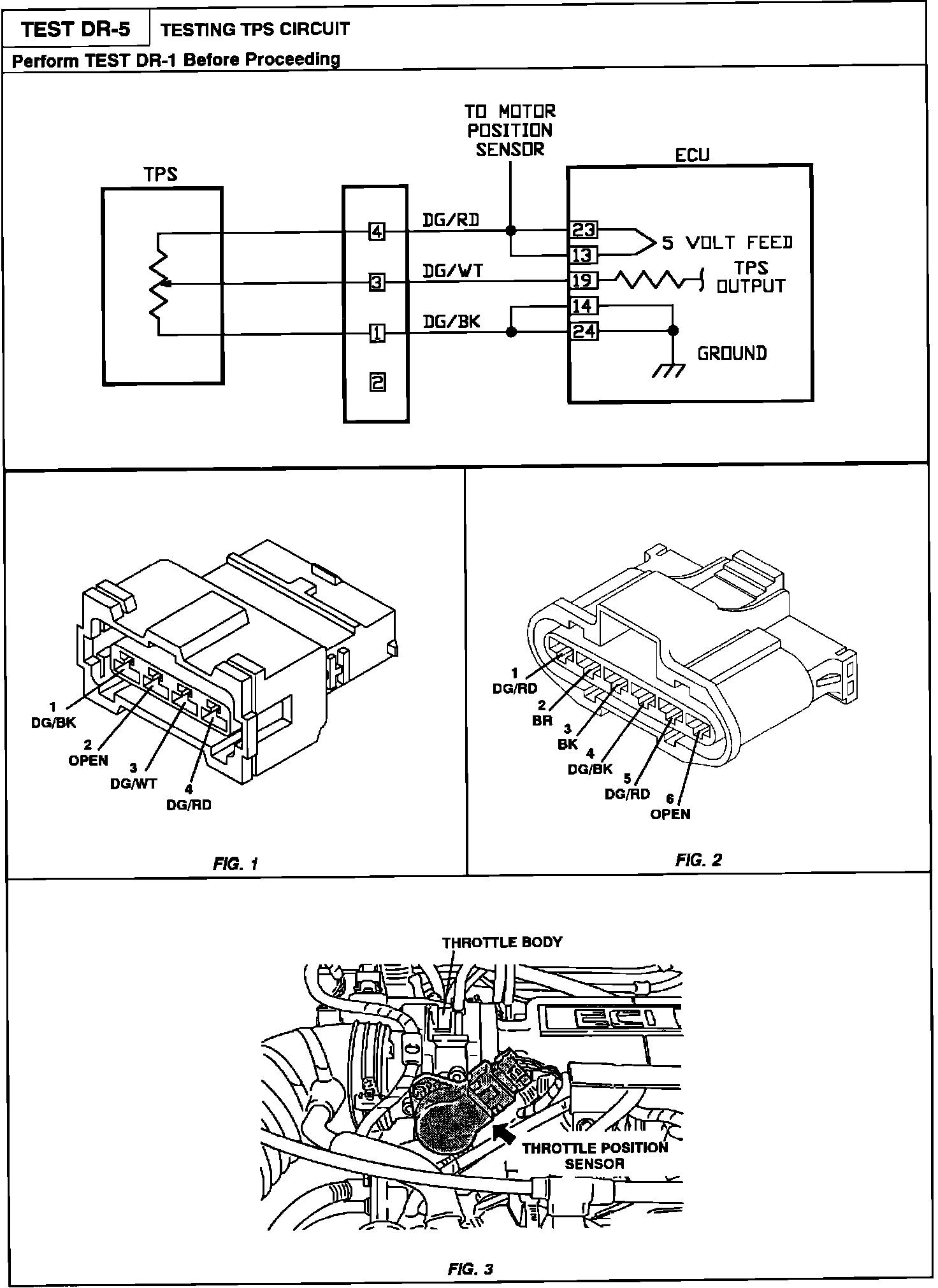

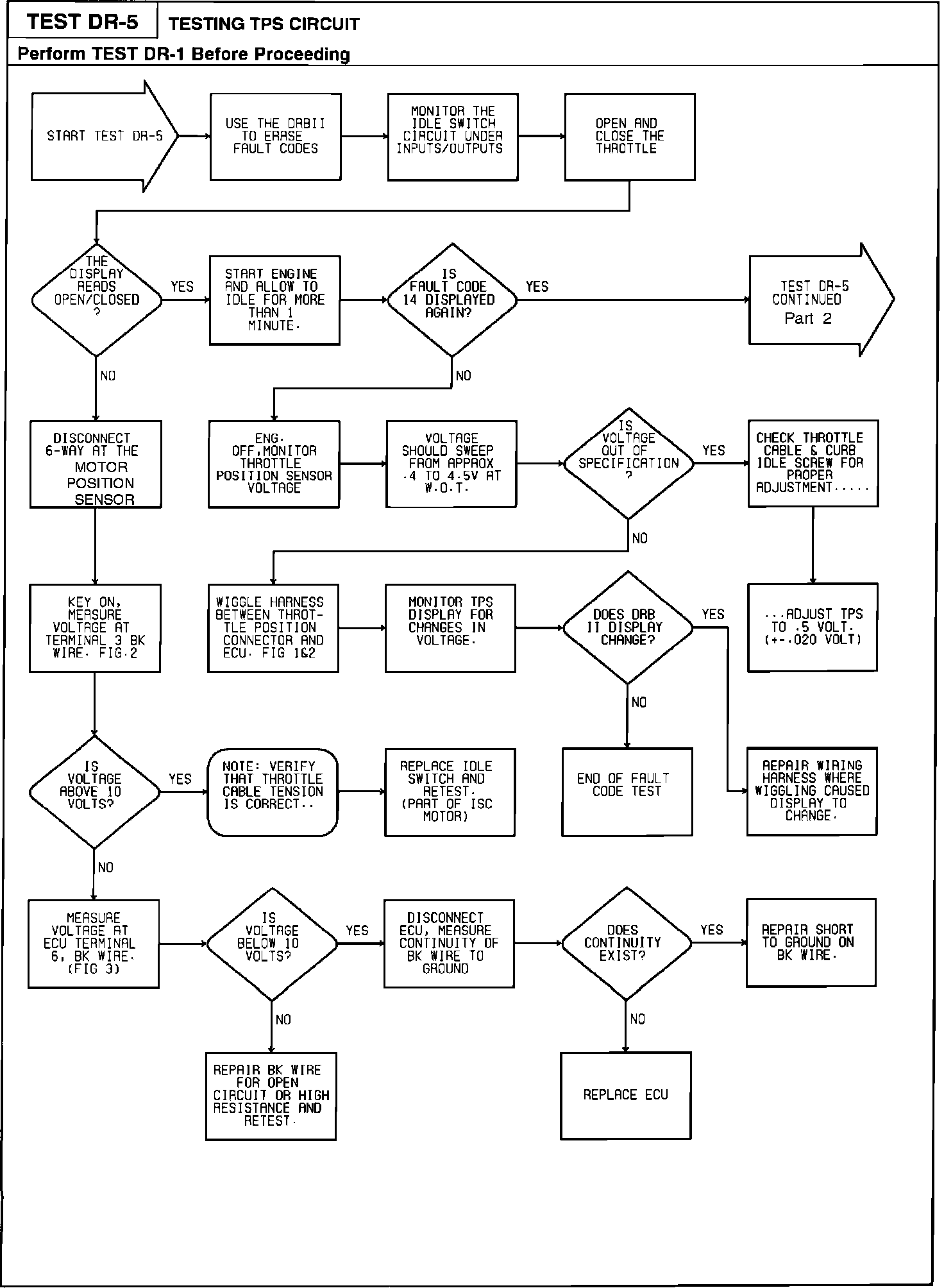

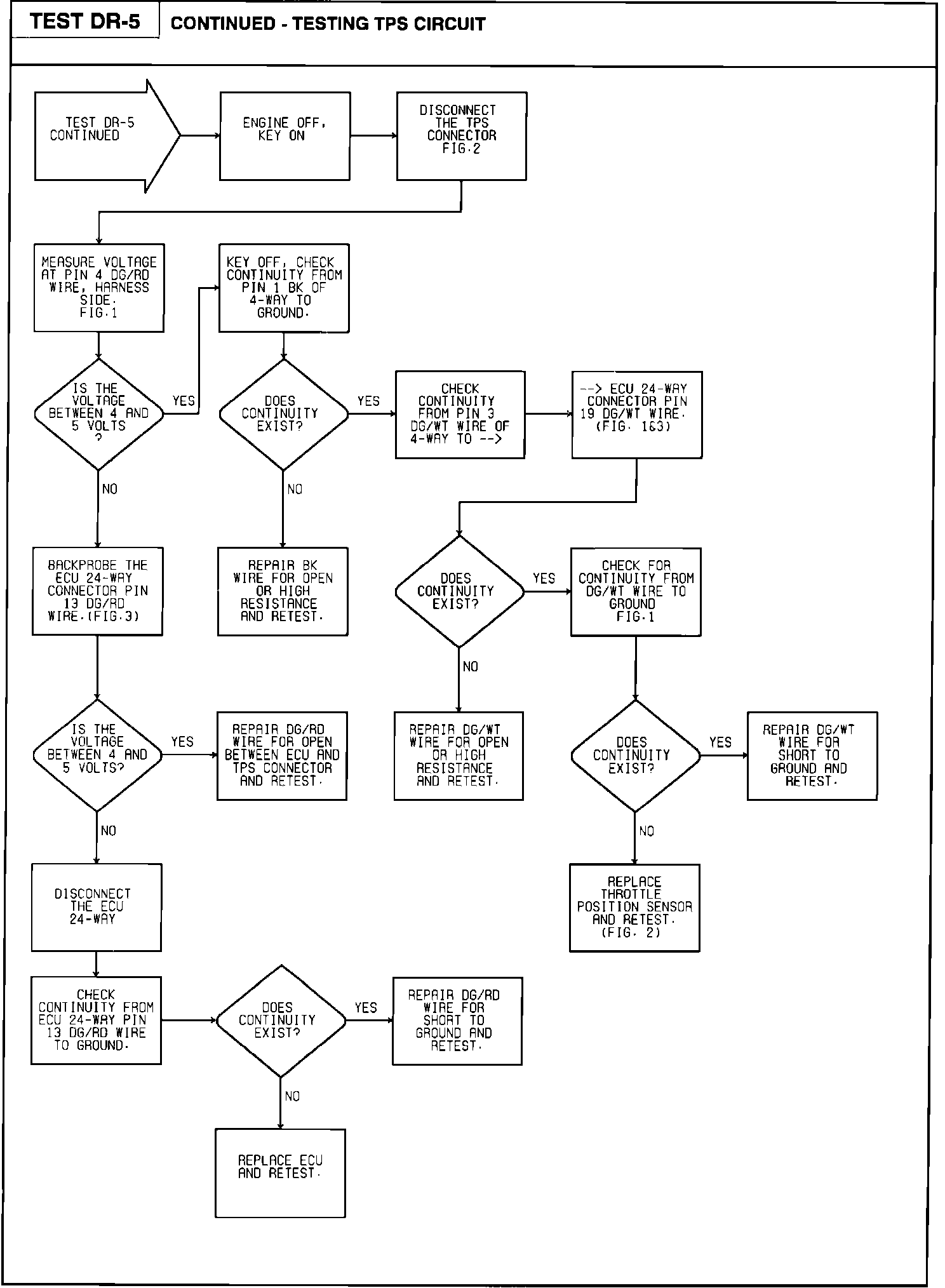

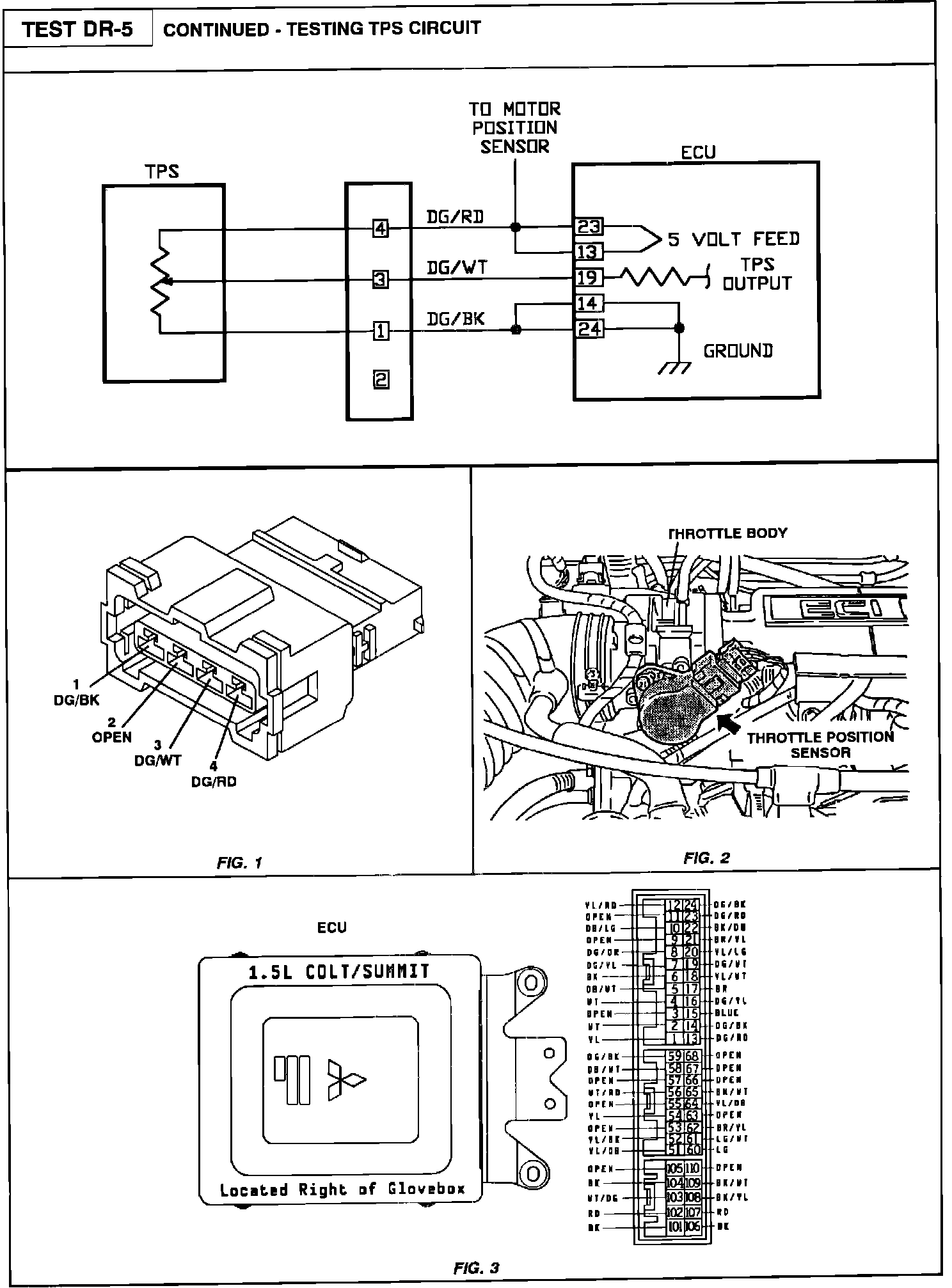

DR-5 Testing Throttle Position Sensor Circuit
DR-5 Testing Throttle Position Sensor Circuit
