NS-4

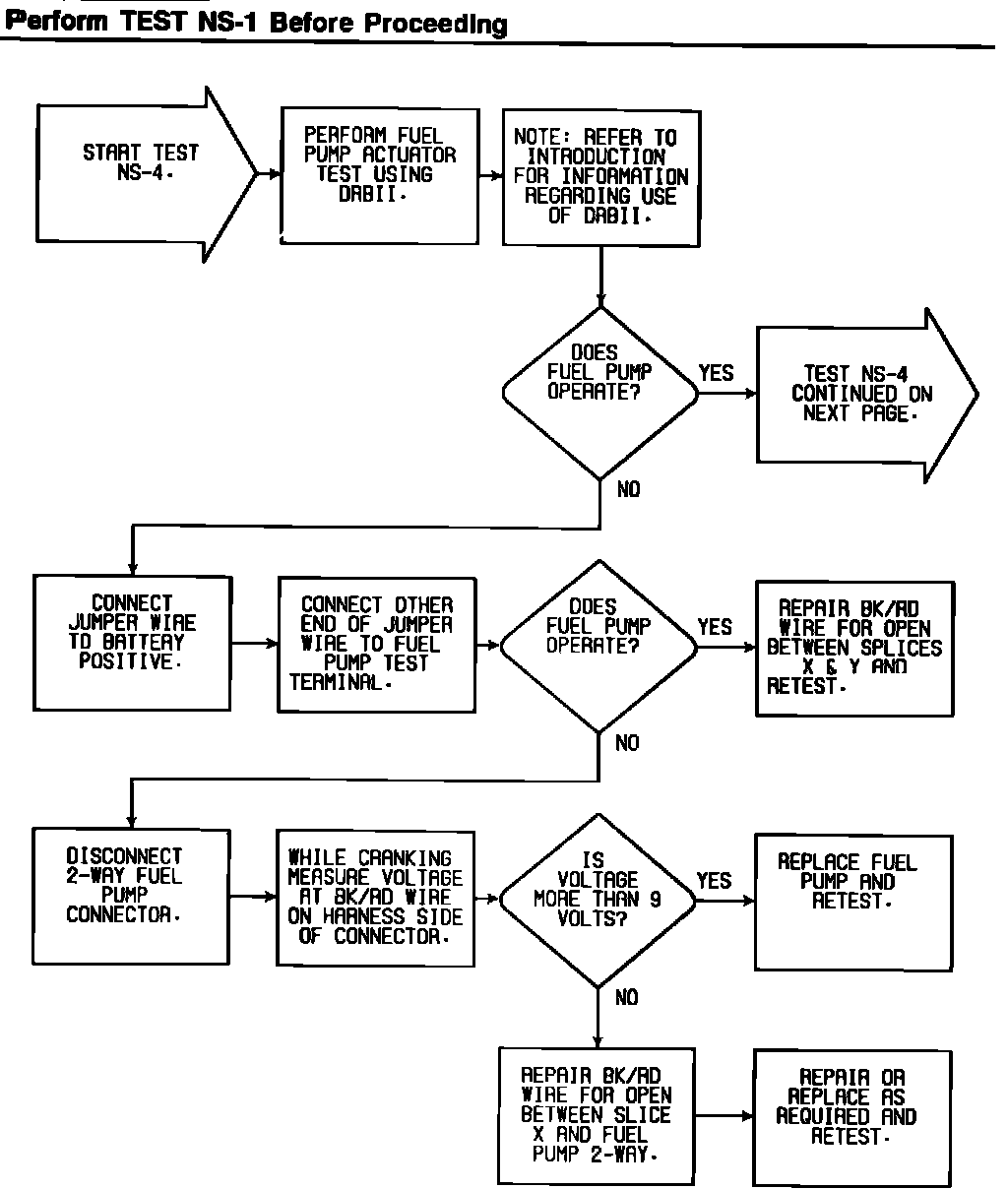

No Start Test NS-4 (Part 1 of 2). 1989 4-97.4/1.6L:





Test NS-4 (Part 1 of 2)

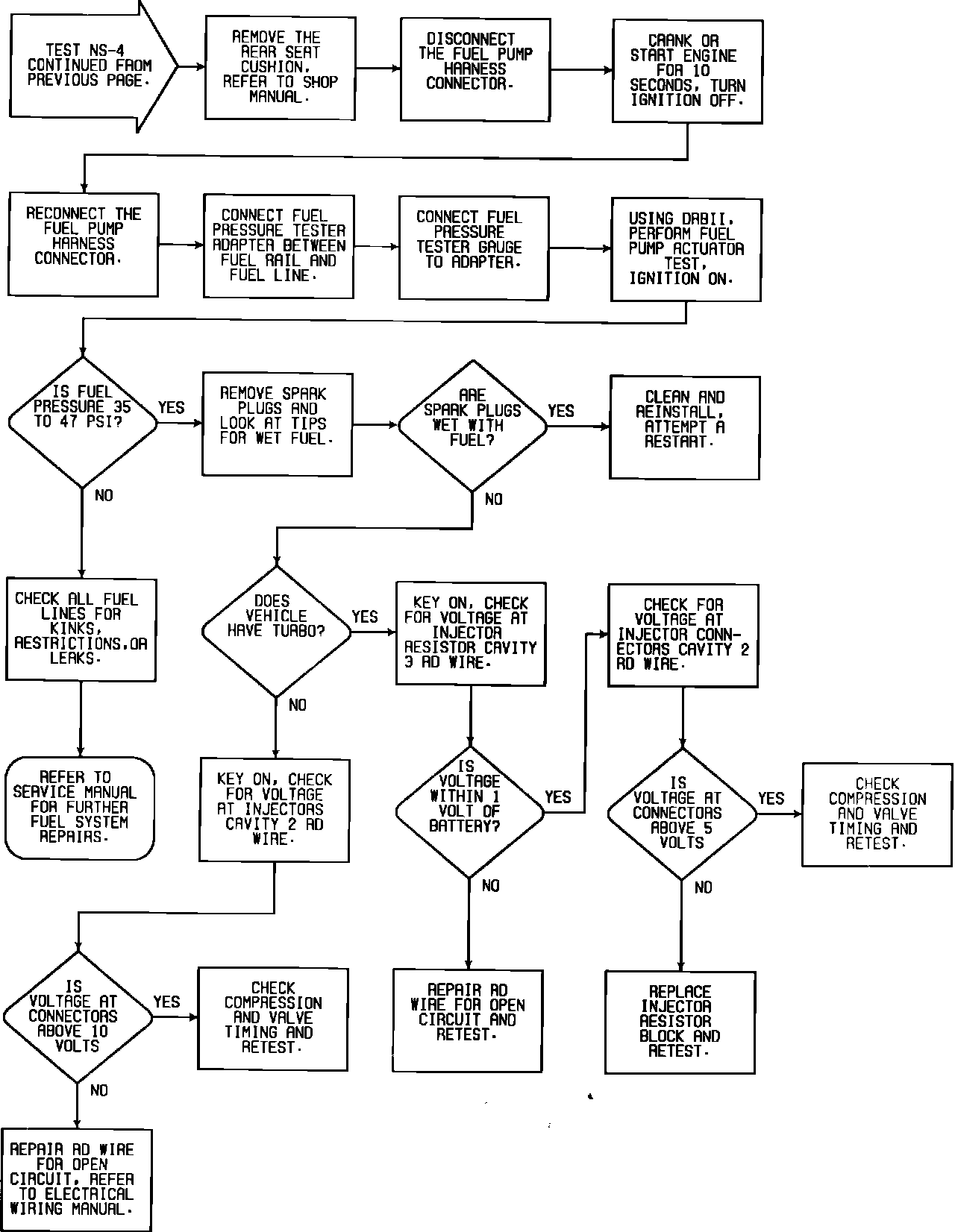

No Start Test NS-4 (Part 2 of 2). 1989 4-97.4/1.6L:





Test NS-4 (Part 2 of 2)
