Seat Belt Systems: Locations

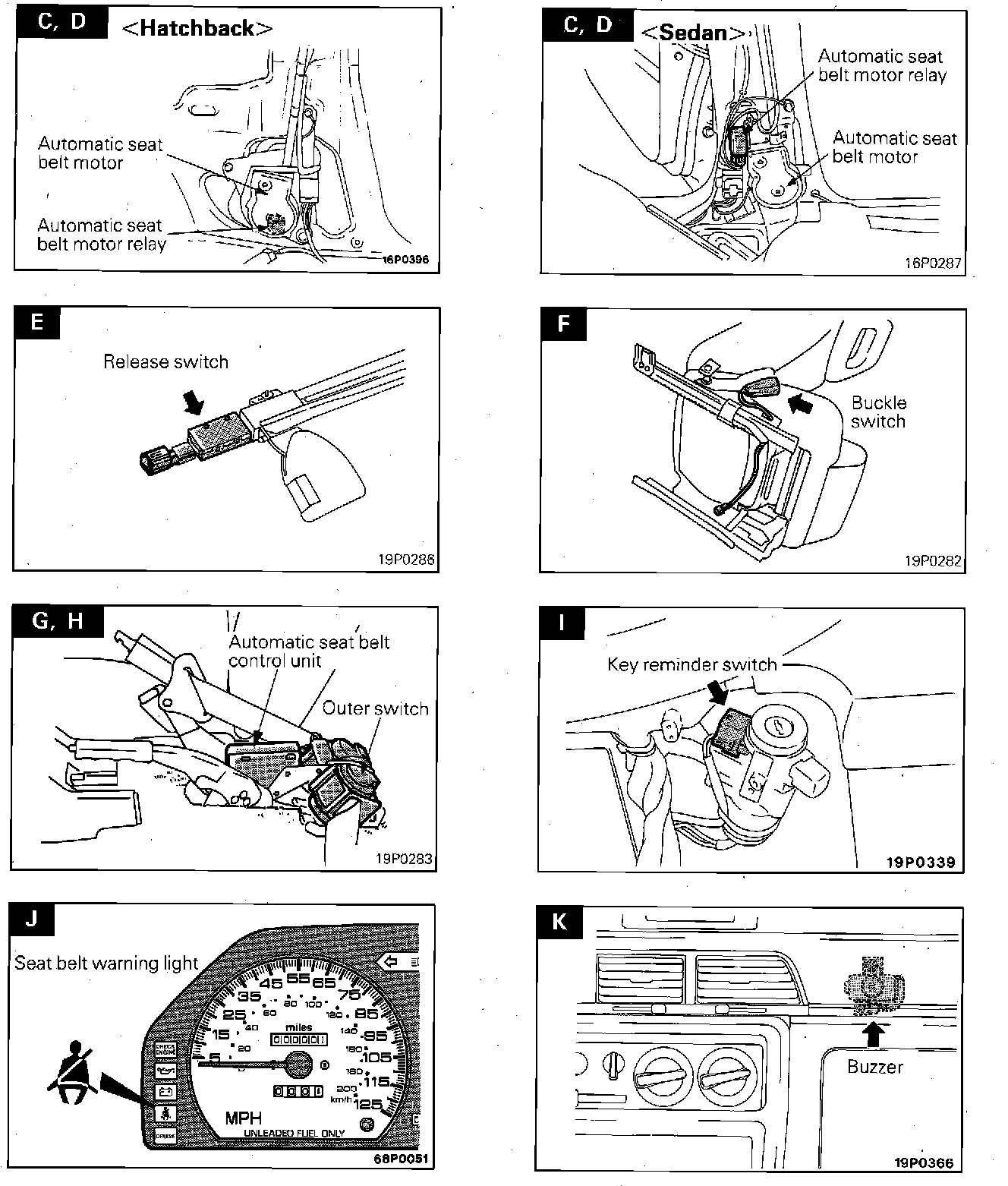

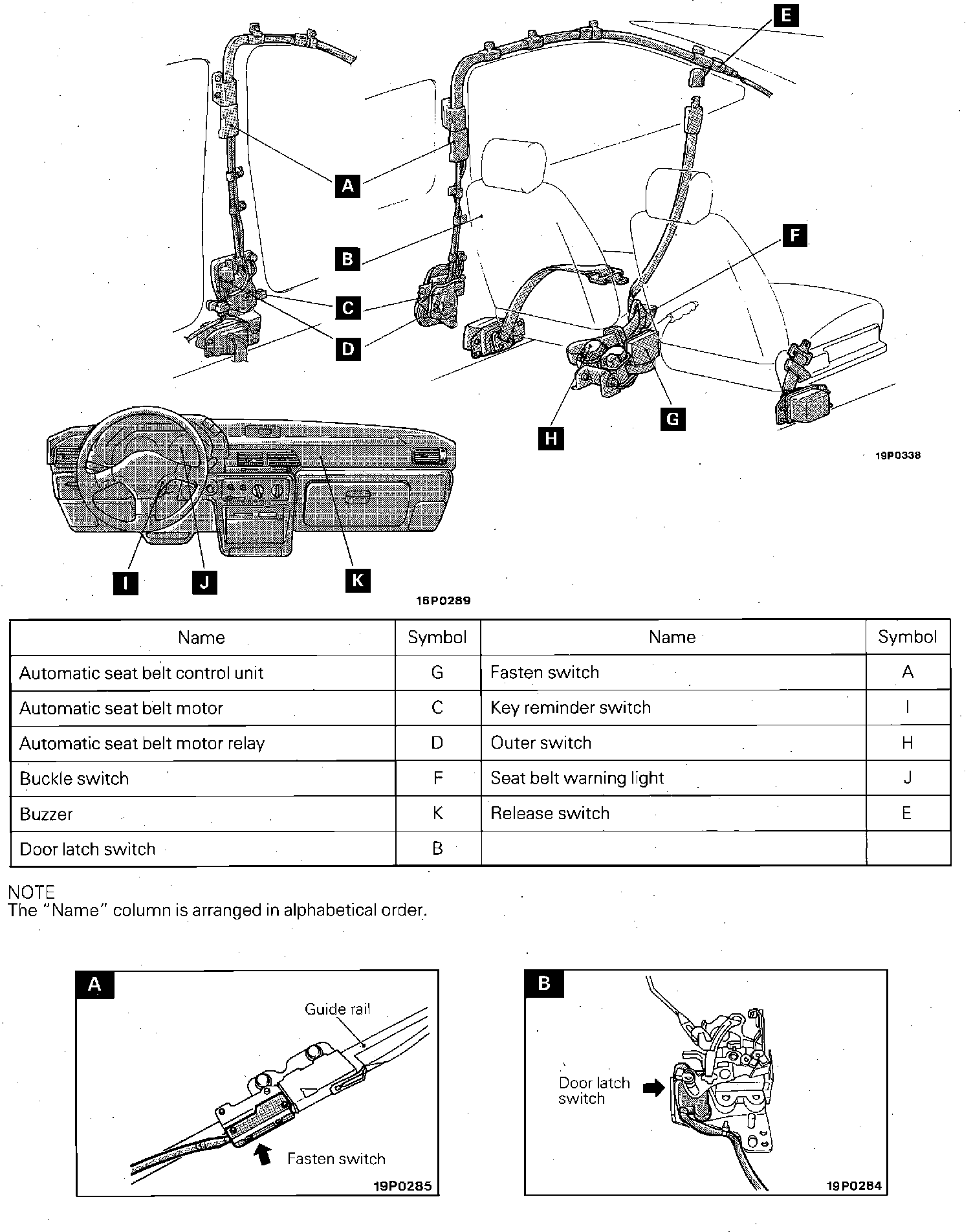

Component/Relay/Switch Locations (Automatic Seat Belt):
Component/Relay/Switch Locations (Automatic Seat Belt):
