Home >> Eagle >> 1989 >> Summit L4-1468cc 1.5L SOHC >> Repair and Diagnosis >> Powertrain Management >> Transmission Control Systems >> Diagrams >> Electrical Diagrams >> 3 Speed >> Part 2 of 2

Part 2 of 2

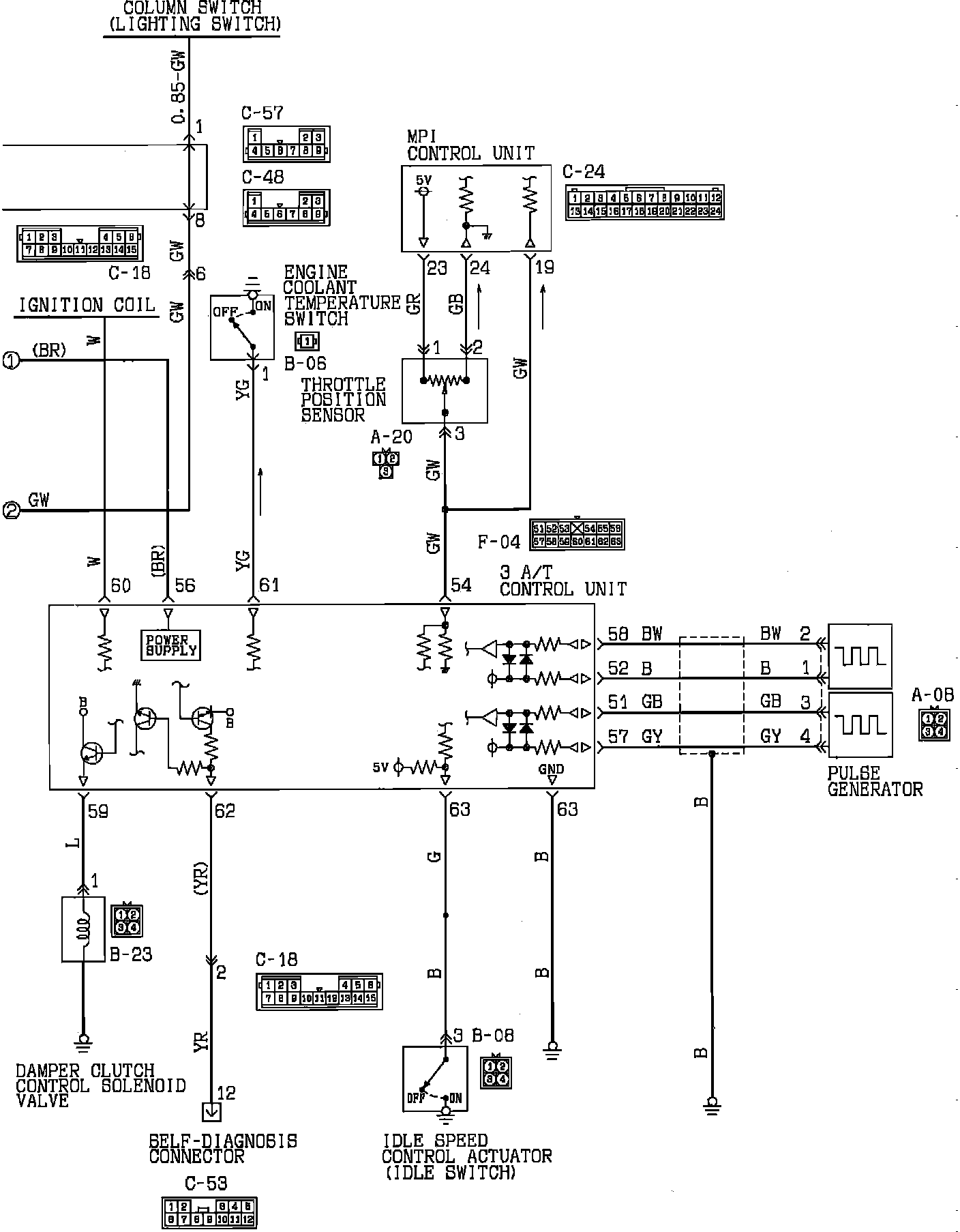

3-Speed Automatic Transaxle:
