1989
>>
Summit L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

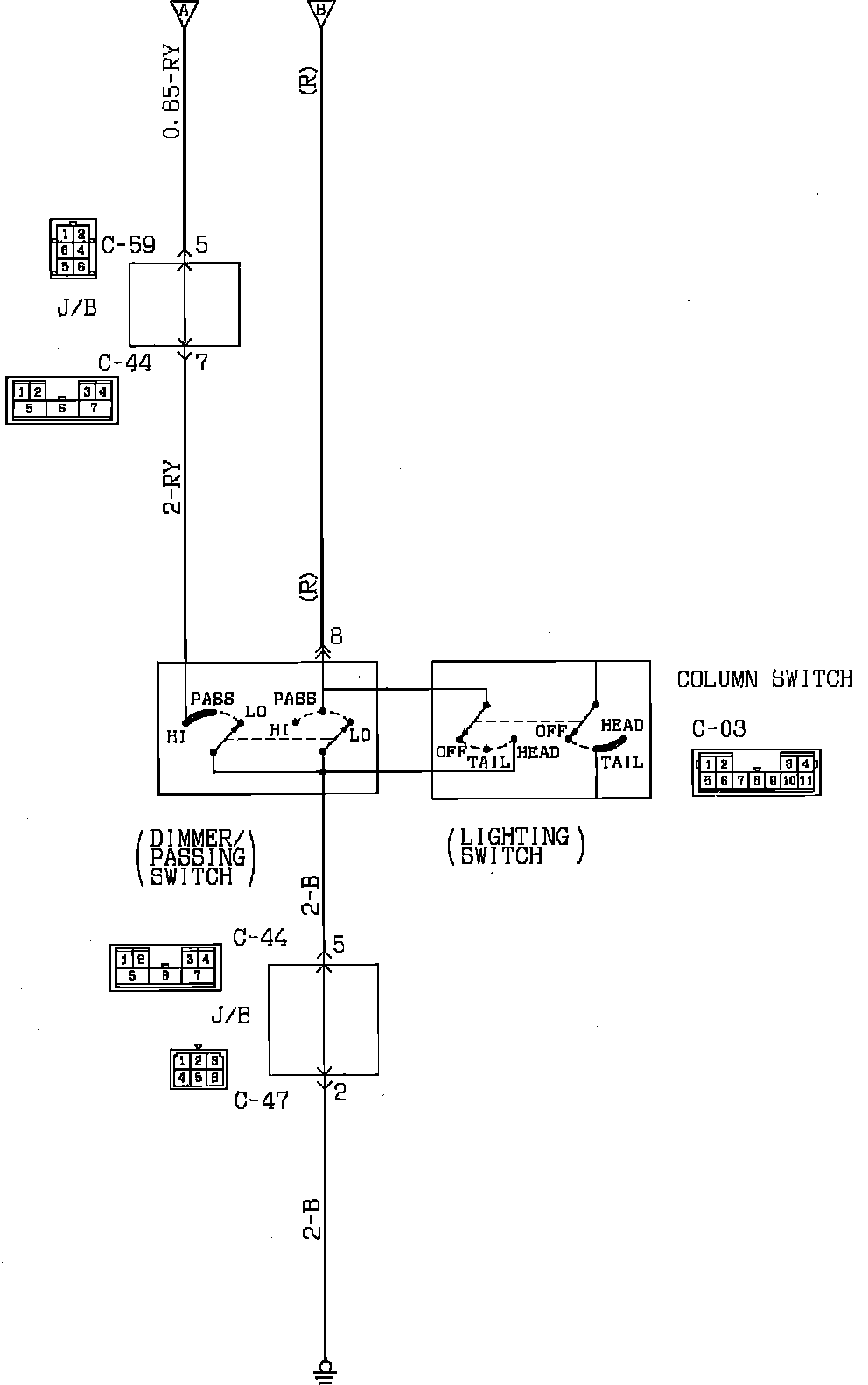

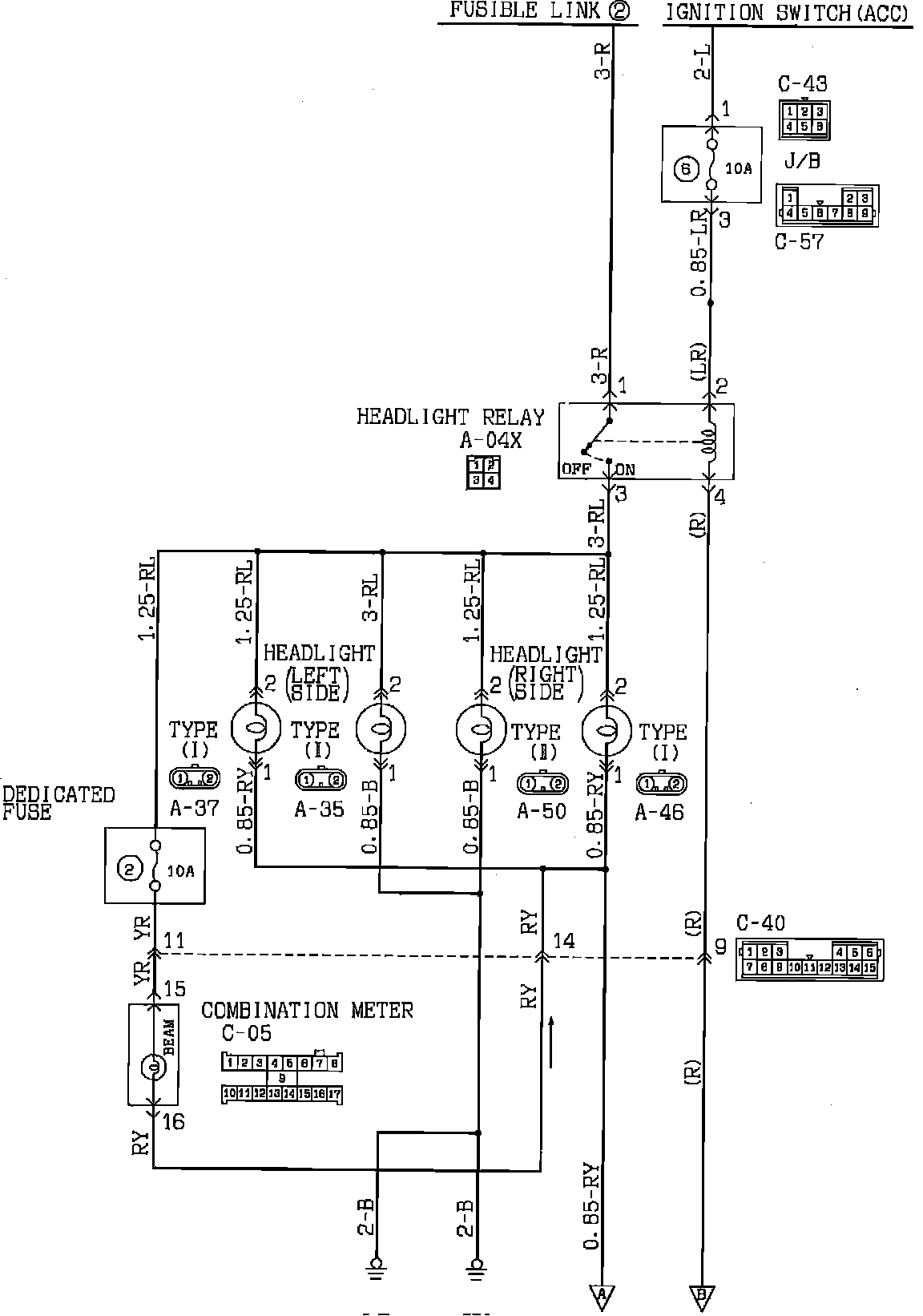

Headlights:
Headlights:
