Motorized Shoulder Belt Track Lubrication Instructions
1988 - 1992 Eagle Premier1990 - 1992 Dodge Monaco
^ Disconnect the shoulder belt buckle from the carrier.

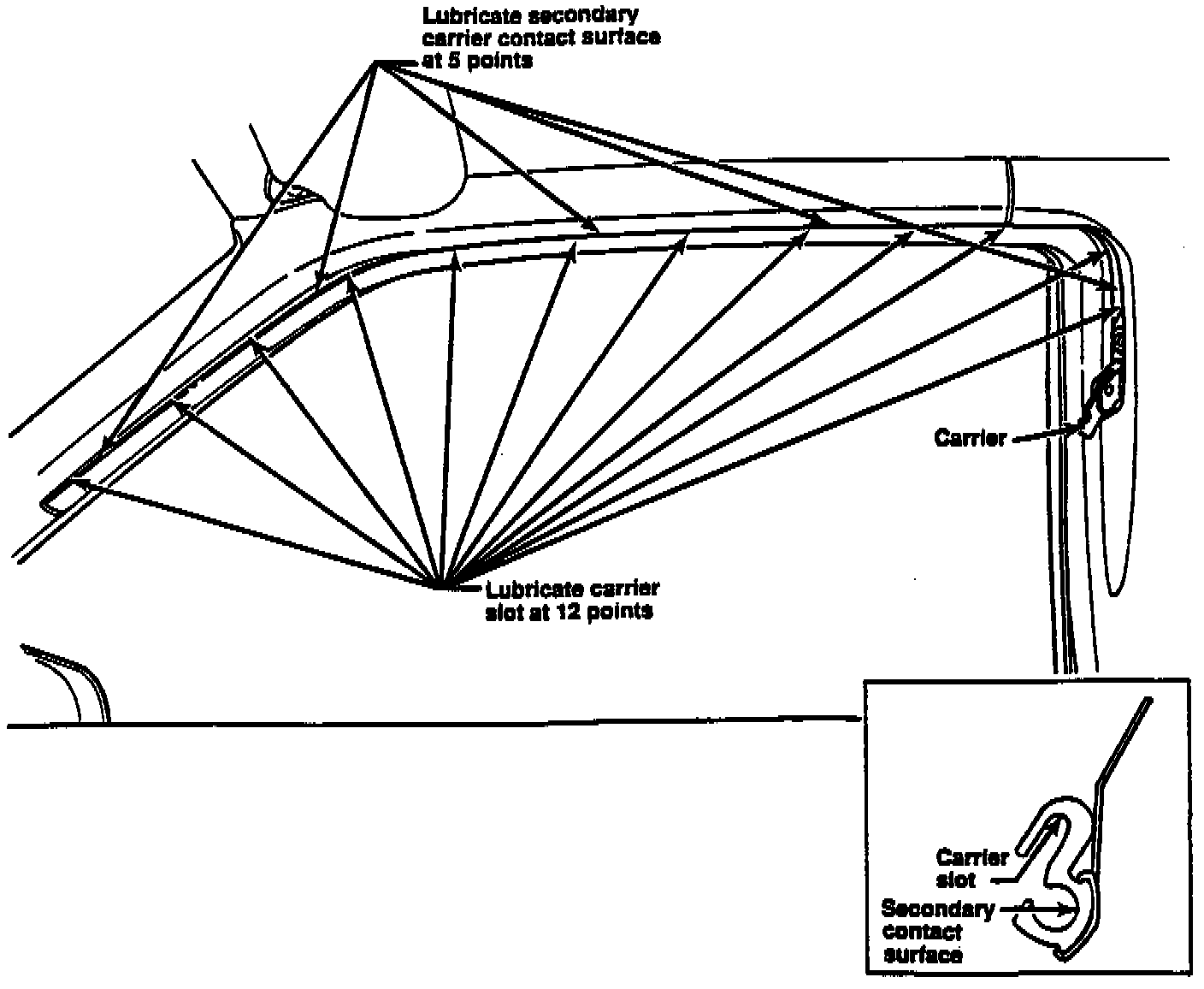

^ Apply a 1/4" diameter dot of the supplied lubricant at 12 points along the length of the carrier slot in the track as shown in the figure above.
CAUTION:
Cover soft trim/seats prior to lubricating. Do not let the lubricant come in contact with interior soft trim as it may damage or stain the finish.
^ Apply a 1/4" diameter dot of lubricant at 5 points along the secondary carrier contact surface as shown in the figure above.
^ Connect the shoulder belt to the carrier and cycle the system back and forth several times to insure proper distribution of the lubricant.
^ Repeat the above steps for the other side of the vehicle.
