B. Lubricate the Tracks:

1. Disconnect the shoulder belt buckle from the carrier.

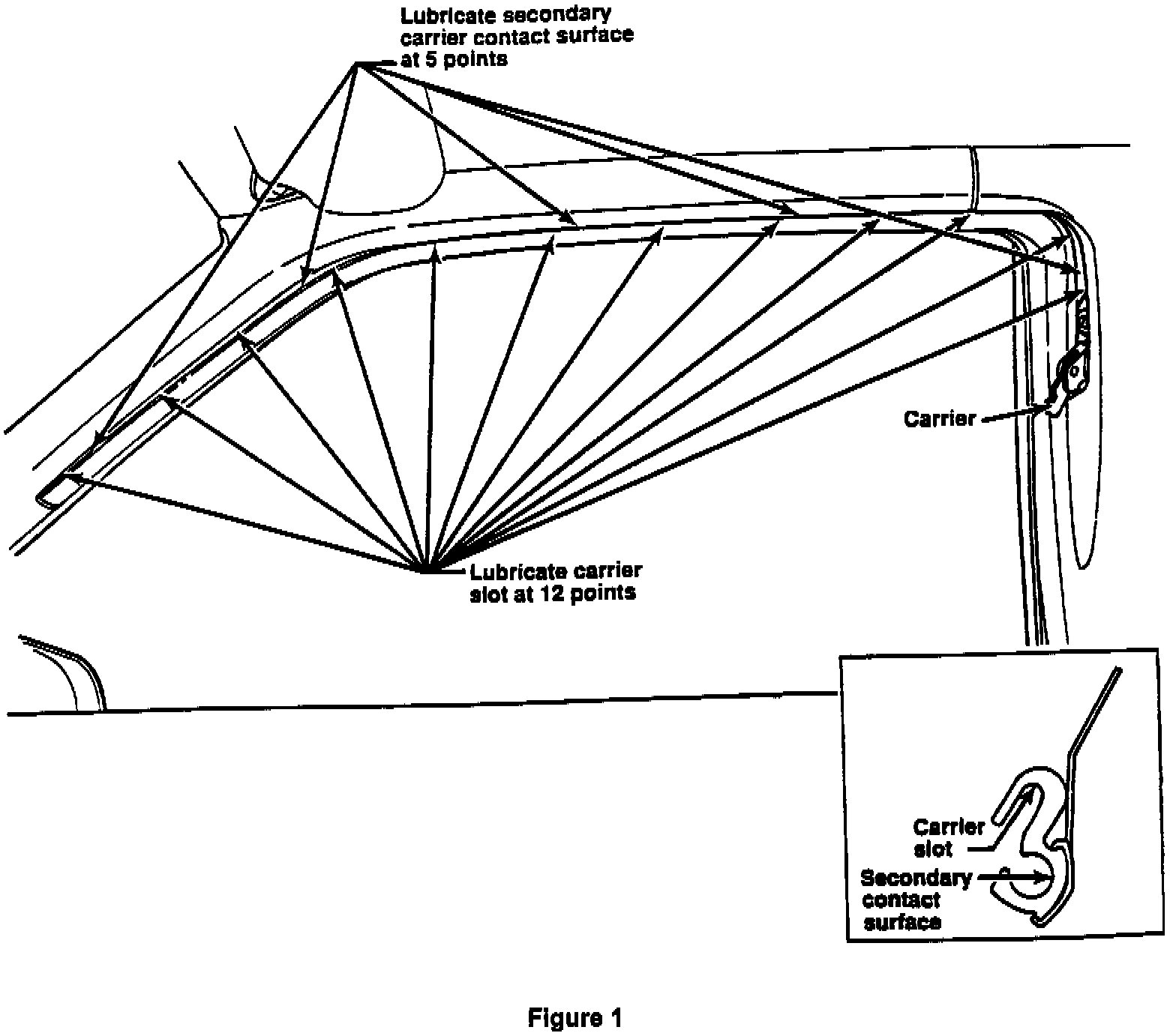

2. Apply a 1/4" diameter dot of the supplied lubricant at 12 points along the length of the carrier slot in the track (Figure 1).

CAUTION:
Cover soft trim/seats prior to lubrication. Do not let the lubricant come in contact with the interior soft trim as it may damage the finish.

3. Apply a 1/4" diameter dot of lubricant at 5 points along the secondary carrier contact surface on the track (Figure 1).

4. Connect the belt to the carrier and cycle the carrier several times to insure proper distribution of the lubricant.

5. Repeat Steps 1 through 4 to lubricate the track on the other side of the vehicle.
