SUBJECT: Rear Wheel Hub/Bearing Dust Cap O-Ring
NO.: 22-51-90

GROUP: Wheels

DATE: Dec. 17, 1990
MODELS:

1988-1991 BB - Premier


DISCUSSION:

An O-Ring, PN 4584339, must be installed on the hub/bearing dust cap to eliminate the possibility of water or dust getting into the rear wheel bearings.


PARTS REQUIRED:

Rear Wheel Hub/Bearing Dust Cap O-Ring PN 4584339


PROCEDURE:

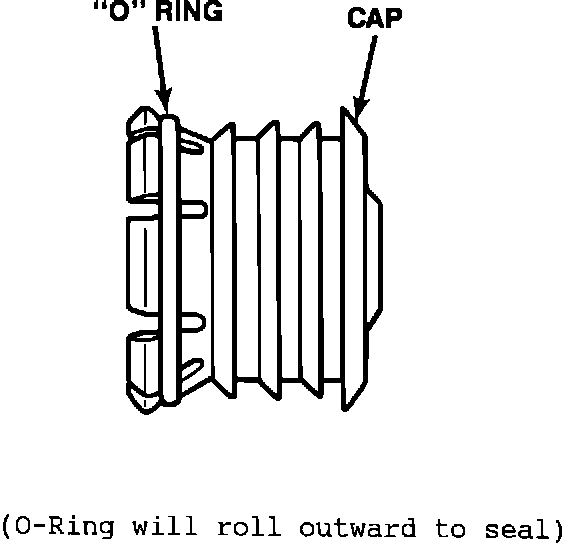

Figure 1:

When service requires removal of the hub/bearing dust cap, install the O-Ring (PN 4584339) on the rear wheel hub/bearing dust cap as shown in Figure 1.
