Motorized Seat Belt - Chatters Intermittently

89AMC/jeep02

Models

1988 3/4-1989 BB Vehicles With Motorized Belts


Subject

Motorized Seat Belt Chatter


Index

BODY


Date

February 6, 1989


No.

23-54-89

P-365 C23-12

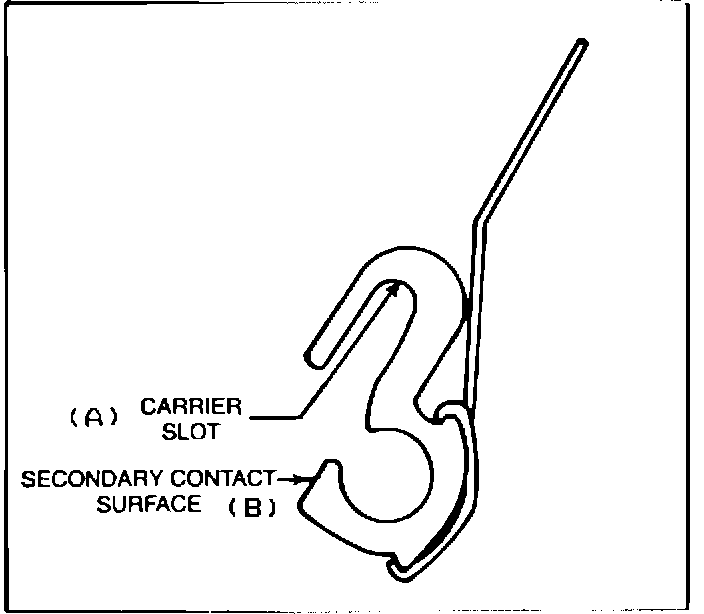

FIGURE 1:

FIGURE 2:

BODY CODE LEGEND

BB - PREMIER

Periodically, the track assembly on the motorized seat belt system may exhibit a chatter while cycling. Relubrication of the track assembly will correct this condition. Note this information in the lubrication section of your service manual for future reference.

PARTS REQUIRED

5 grams Special Lubricant PN 4467749

PROCEDURE

The following describes the lubrication procedure for the motorized seat belt track and drive assembly.

1. Disconnect torso belt buckle from carrier.

2. Apply a 3 mm dot of lubricant (PN 4467749) at 12 points over the length of the carrier slot on the rail (see Figures 1 & 2 at Point A).
3. Apply a 3 mm dot of lubricant at 6 points on the secondary carrier contact surface on the rail (see Figures 1 & 2 at Point B).
4. Connect the torso belt to the carrier and cycle the carrier to insure proper distribution of lubricant.

NOTE: BE EXTREMELY CAREFUL DURING THE APPLICATION OF THE LUBRICANT NOT TO GET LUBRICANT ON ANY HARD OR SOFT TRIM.


POLICY: Information only
