Rear Brake Lines and Hoses

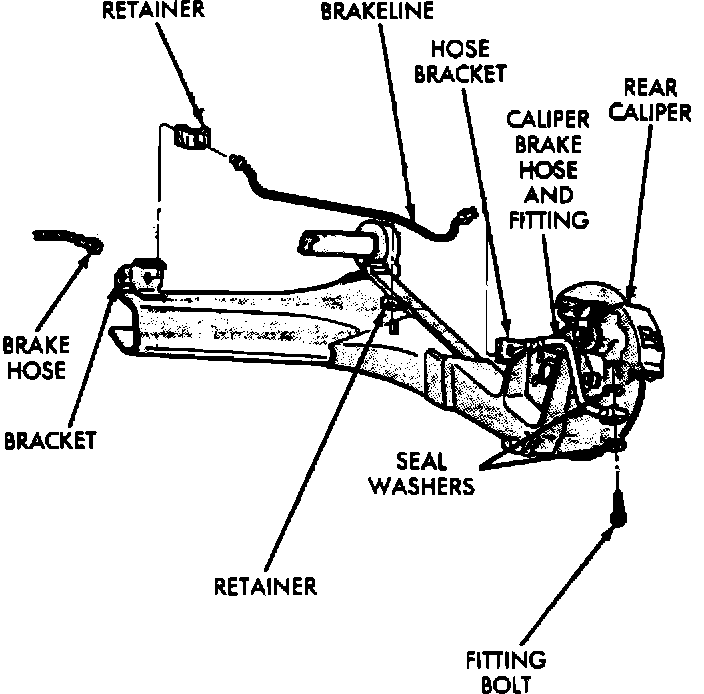

FIGURE 24:

The rear brake lines and connecting hoses are shown in Figure 24. Rubber hoses connect the metal brake lines to the caliper and brake line junction block at the rear axle.

The brake lines and hoses are not repairable items and should be replaced when damaged or leaking. Also be sure to install new seal washers on the caliper fitting whenever the fitting is disconnected.
