Shock Absorber Replacement

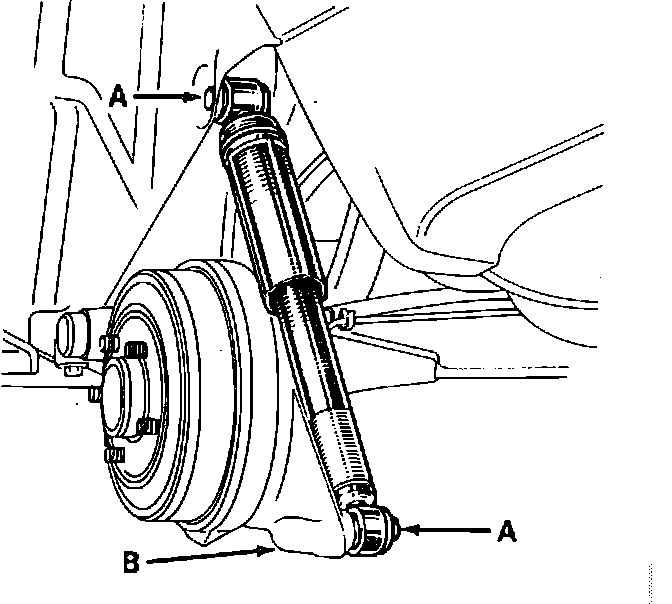

Fig. 5 Shock Absorber Bolt Location:

1. Raise and support vehicle.
CAUTION: Do not support vehicle weight under V-shaped channel on axle.
2. Raise and support control arm at point B, to relieve tension from shock absorber.
3. Remove shock absorber attaching bolts, then lower shock absorber from vehicle.
4. Reverse procedure to install. Torque upper and lower attaching bolt.
