Control Arm Bushing: Service and Repair

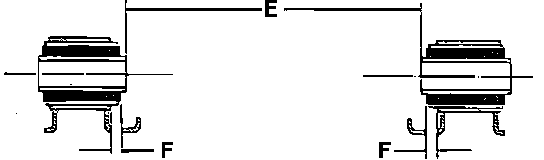

Fig. 7 Control Arm Bushing Installation:

1. Remove lower control arm, refer to LOWER CONTROL ARM.
2. Remove bushings using a suitable press and socket.
3. Install new bushings using same tools used for removal.
NOTE: Bushings must be installed equally in small increments until dimension E, measures 7.461 to 7.499 and dimension F is the same for both bushings within 0.197 inch.
