Power Steering Pump: Description and Operation

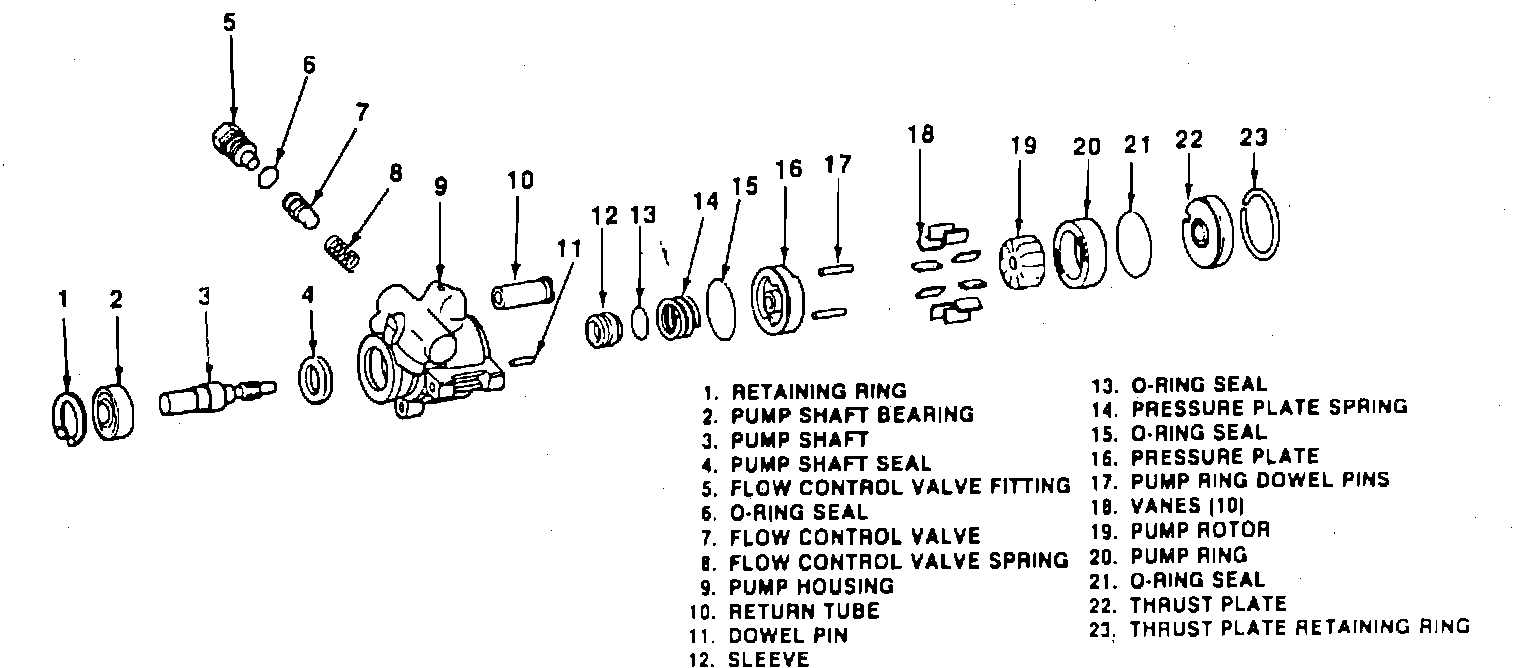

Fig. 1 Type 3--TC Series Pump Exploded View:

The TC series pump, is a vane type pump, and is used on the Eagle Premier equipped with the 2.5L/4-150 cylinder engine. It utilizes a remote fluid reservoir located at the left inner fender panel.
