Seat Belt: Service and Repair

Front Seat Belts:

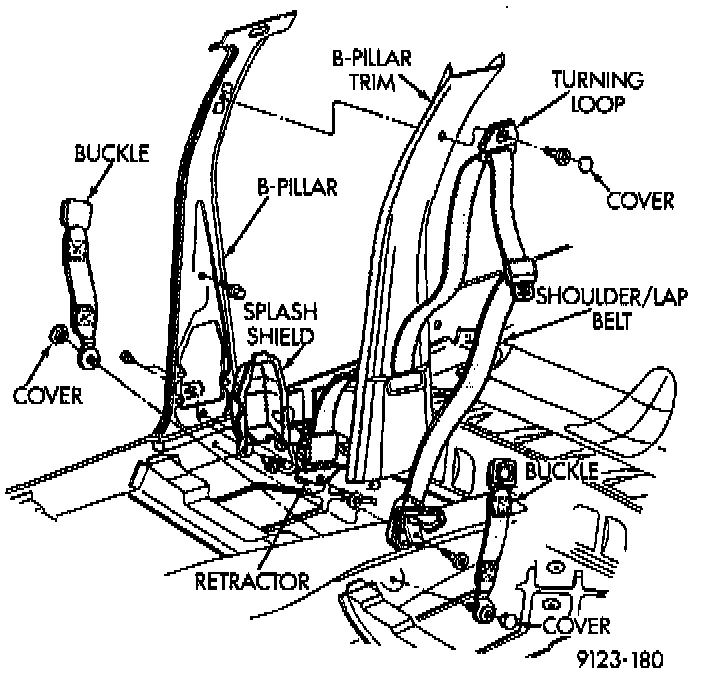

FRONT SEAT SHOULDER/LAP BELT REMOVAL
1. Position front seat full forward.
2. Remove bolt holding shoulder/lap belt to floor below B-pillar.
3. Remove cover and bolt holding seat belt turning loop to B-pillar.
4. Remove B-pillar trim cover.
5. Remove bolt holding belt retractor to B-pillar.
6. Separate retractor and belt from vehicle.
7. Reverse the above procedure for installation.

FRONT SEAT BELT BUCKLE REMOVAL
1. Position front seat full forward.
2. Remove cover and bolt holding seat belt buckle to floor.
3. Disconnect seat belt sensor wire connector, if equipped.
4. Separate buckle from vehicle.
5. Reverse the above procedure for installation.

Rear Seat Belts:

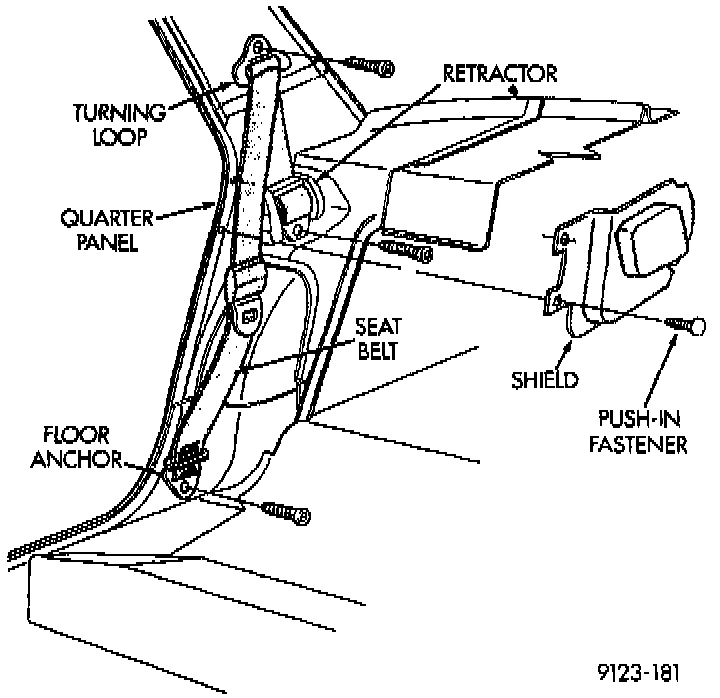

REAR SEAT SHOULDER/LAP BELT REMOVAL
1. Remove rear seat cushion and back.
2. Remove bolt holding shoulder/lap belt to floor below rear door sill.
3. Remove bolt holding seat belt turning loop to upper quarter panel.
4. Remove quarter trim panel.
5. Remove bolt holding belt retractor to quarter panel.
6. Separate rear seat belt and retractor from vehicle.
7. Reverse the above procedure for installation.
