Lamp Out Module
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

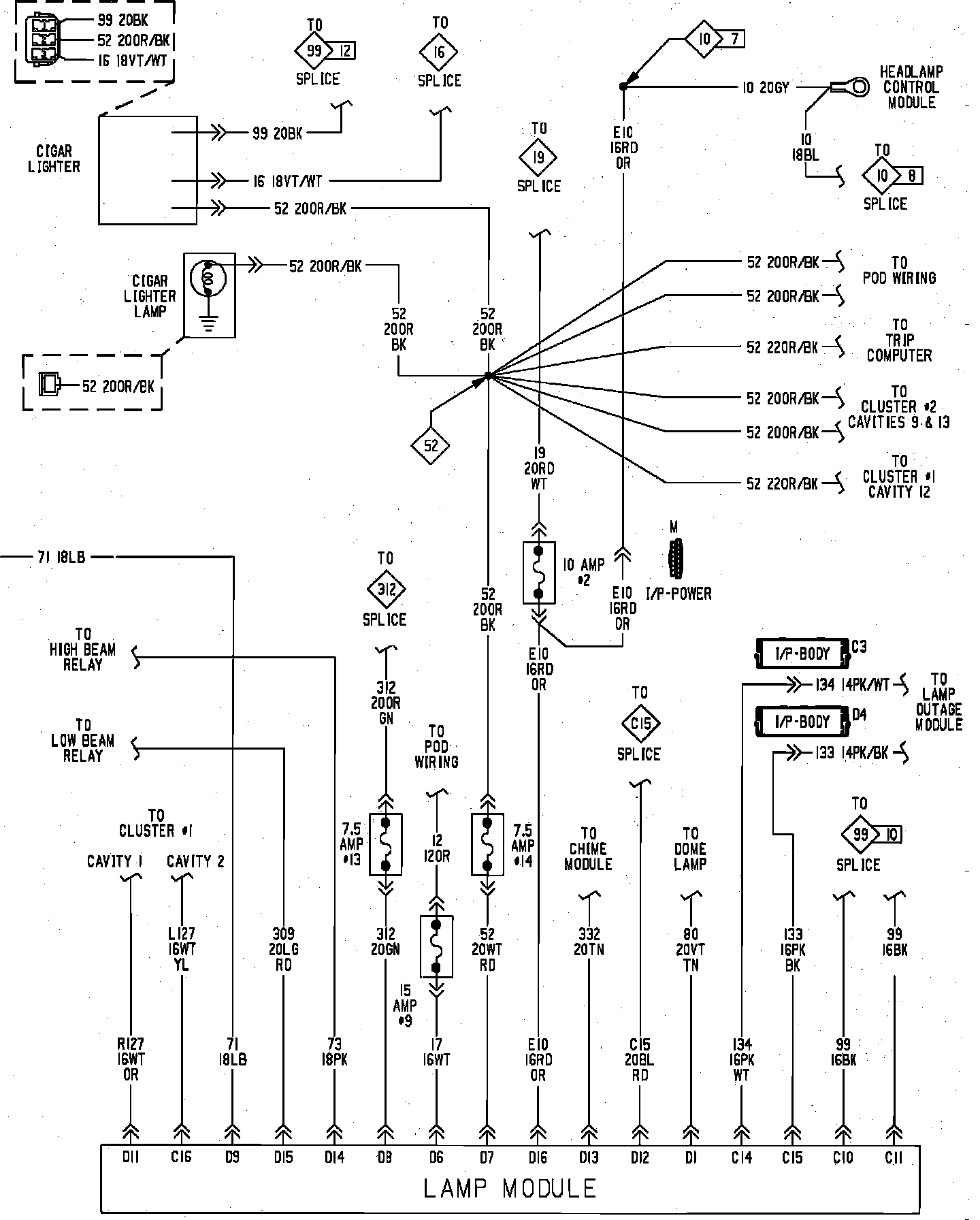

Lamp Module -- Part 1:

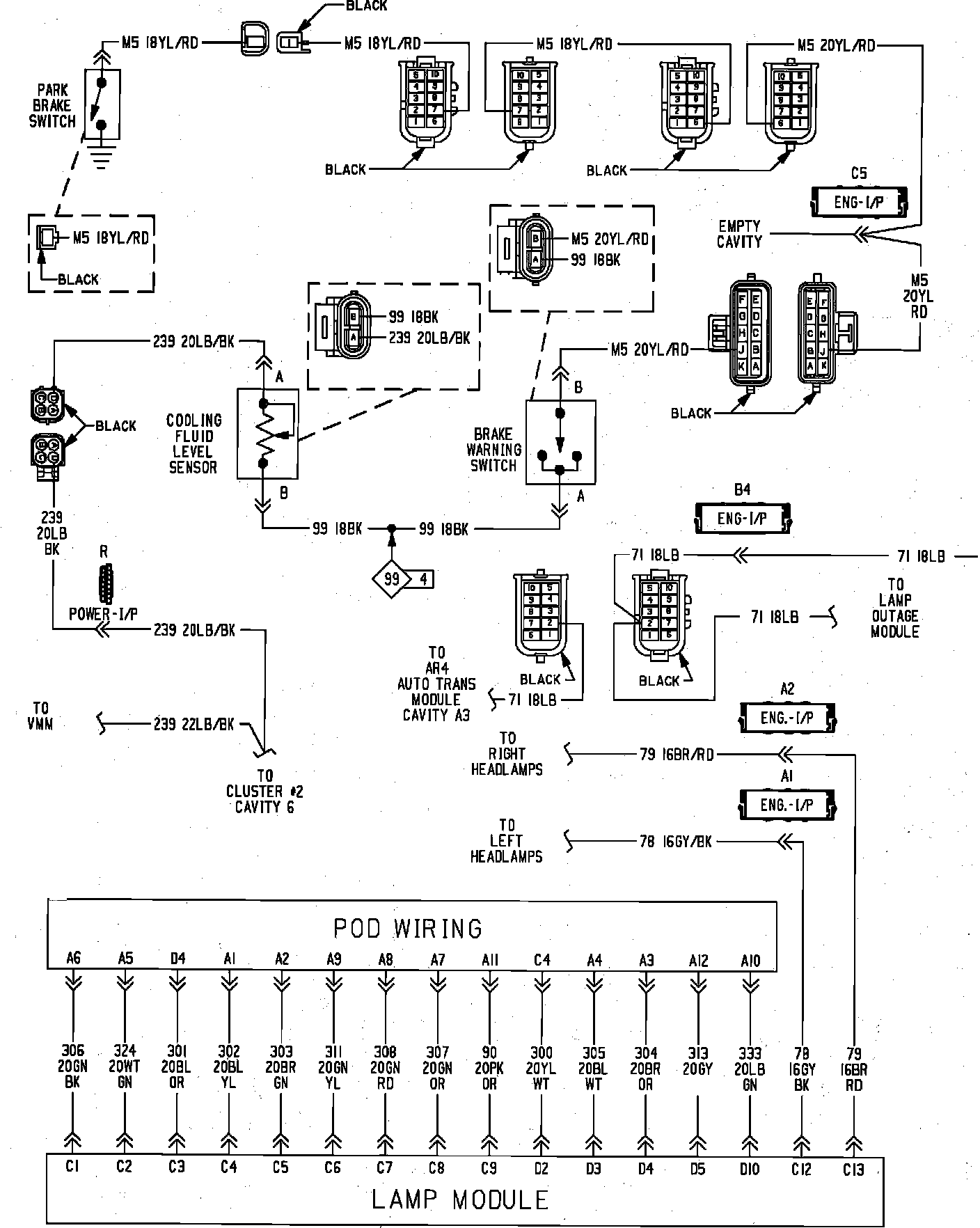

Lamp Module-- Part 2:
