Eagle
>>
1989
>>
Premier L4-150 2.5L
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Dome Lamp
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

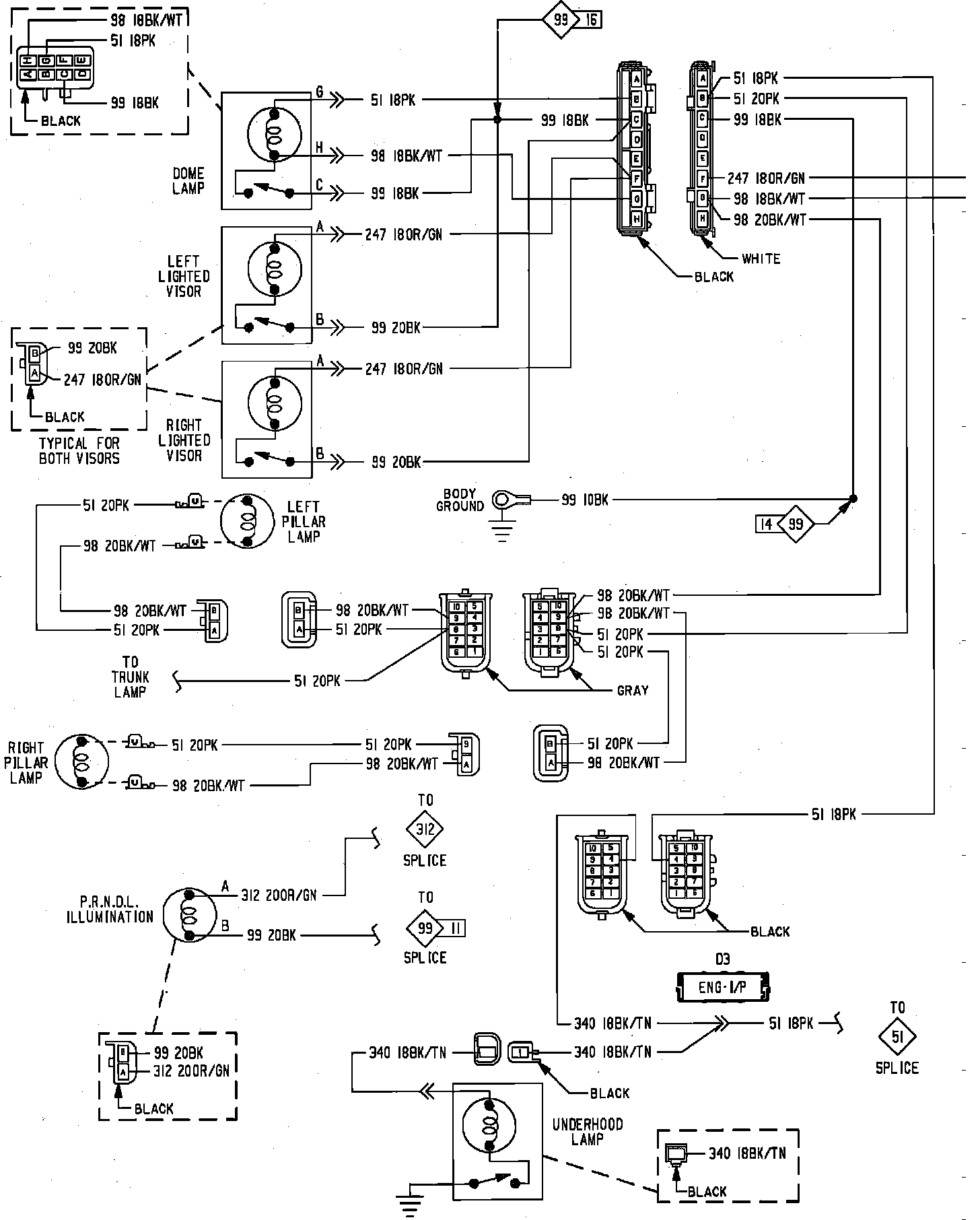

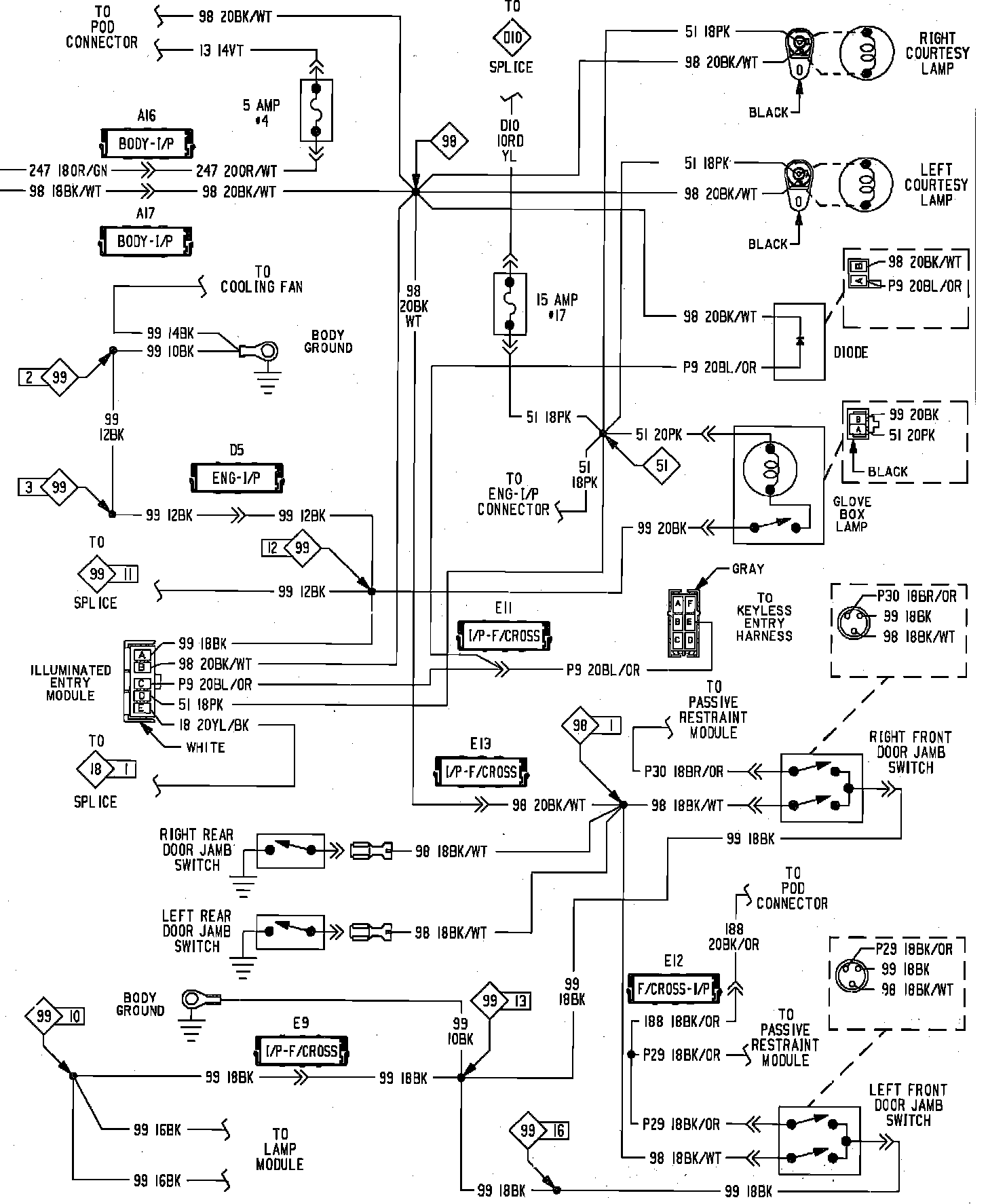

Courtesy & Dome Lamp:
Courtesy & Dome Lamp:
