Home
>>
Eagle
>>
1989
>>
Premier L4-150 2.5L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Restraints and Safety Systems
>>
Seat Belt Control Module
Seat Belt Control Module

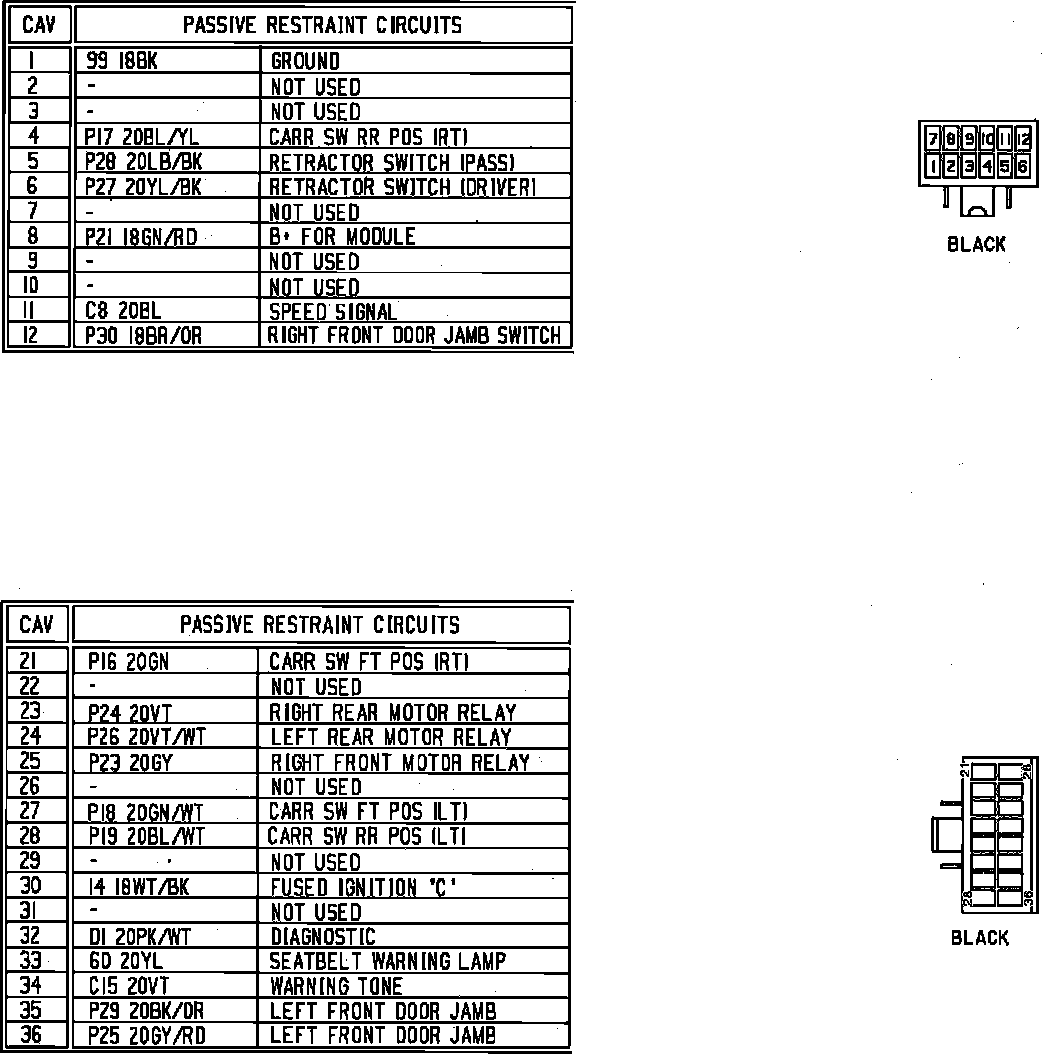

Passive Restraint Module Connector:
