Fault 403 Speed Sensor Not Seen
Fault 403 Speed Sensor Not Seen

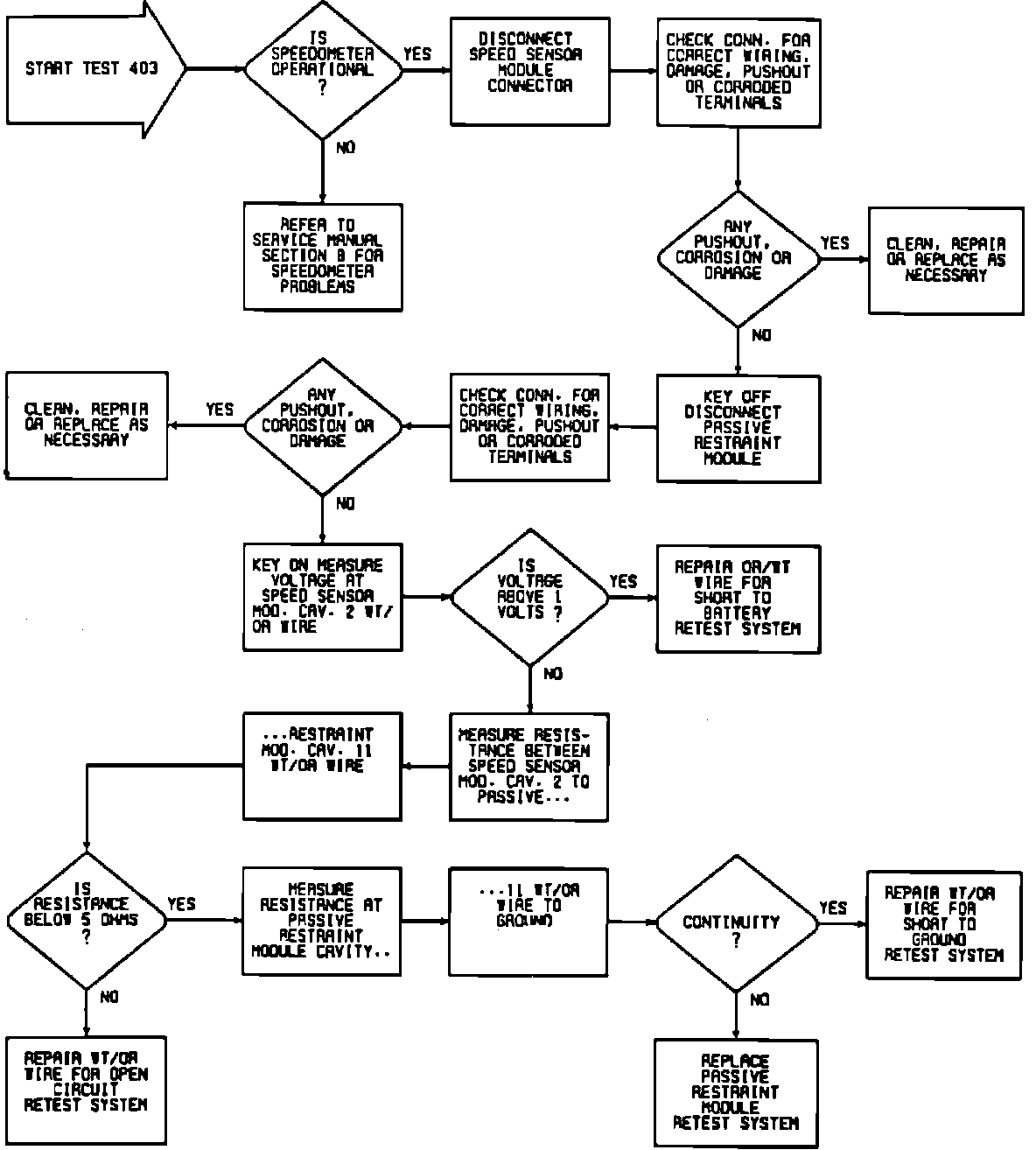

Fig. 55 Fault 403 (Speed Sensor Not Seen, Part 1 Of 2):
