Fault 400 No Serial Data From Passive Restraint Module
Fault 400 No Serial Data From Passive Restraint Module

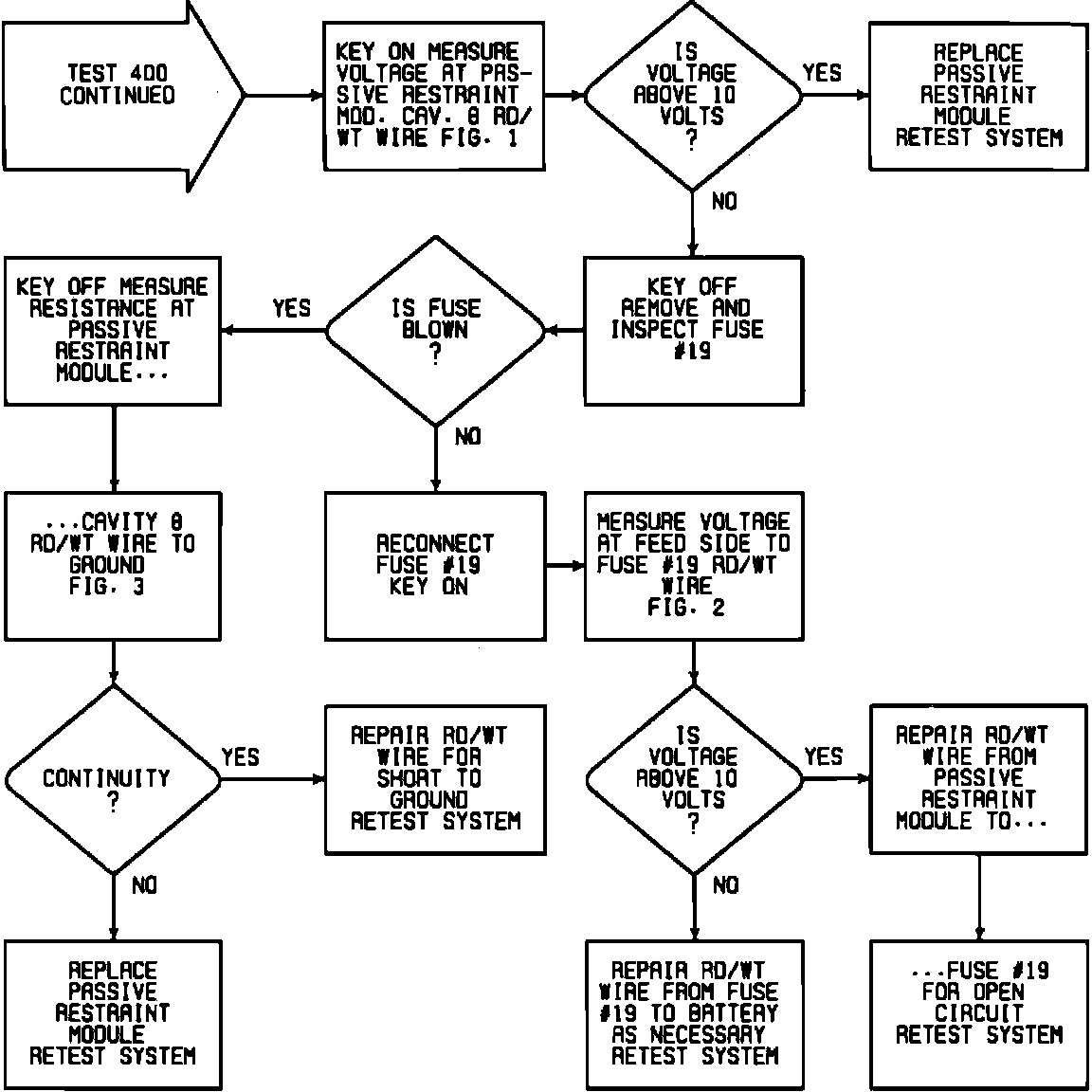

Fig. 52 Fault 400 (No Serial Data From Passive Restraint Module, Part 1 Of 2):
Fig. 52 Fault 400 (No Serial Data From Passive Restraint Module, Part 2 Of 2):
