Eagle
>>
1989
>>
Premier L4-150 2.5L
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
4 Digit Codes
>>
1222 MPA Not Grounded
1222 MPA Not Grounded

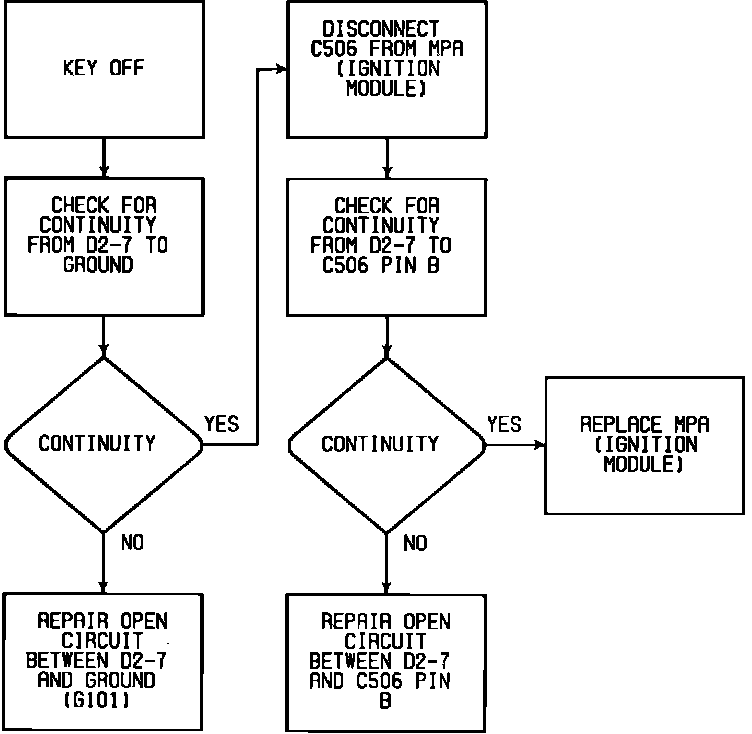

Code 1222:
Code 1222
Wiring Diagram:
Code 1222 Wiring Diagram
