A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
4 Digit Codes
>>
1202 Injector Shorted to Ground
1202 Injector Shorted to Ground

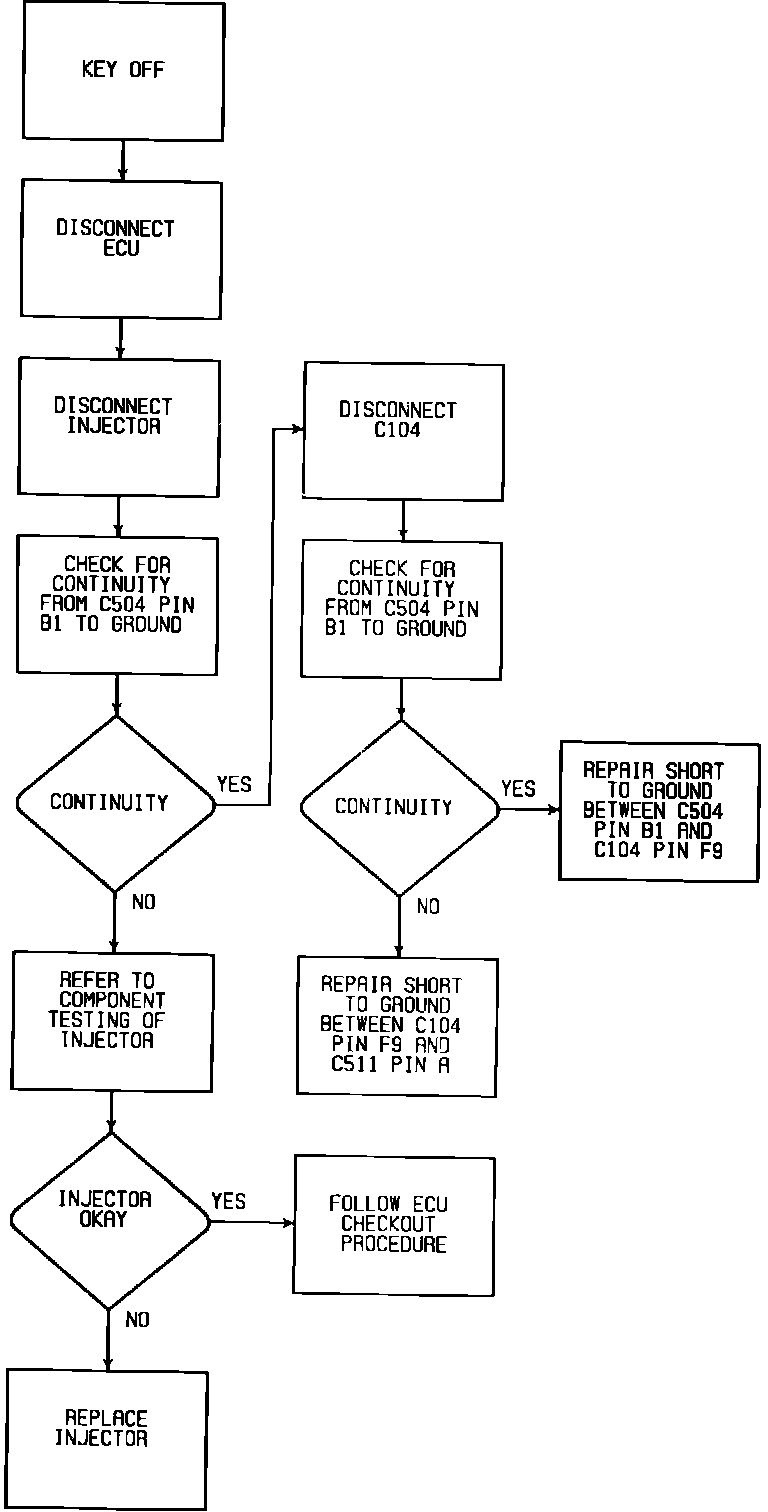

Code 1202:
Code 1202
Wiring Diagram:
Code 1202 Wiring Diagram
