1071 A/C Cutout Line High

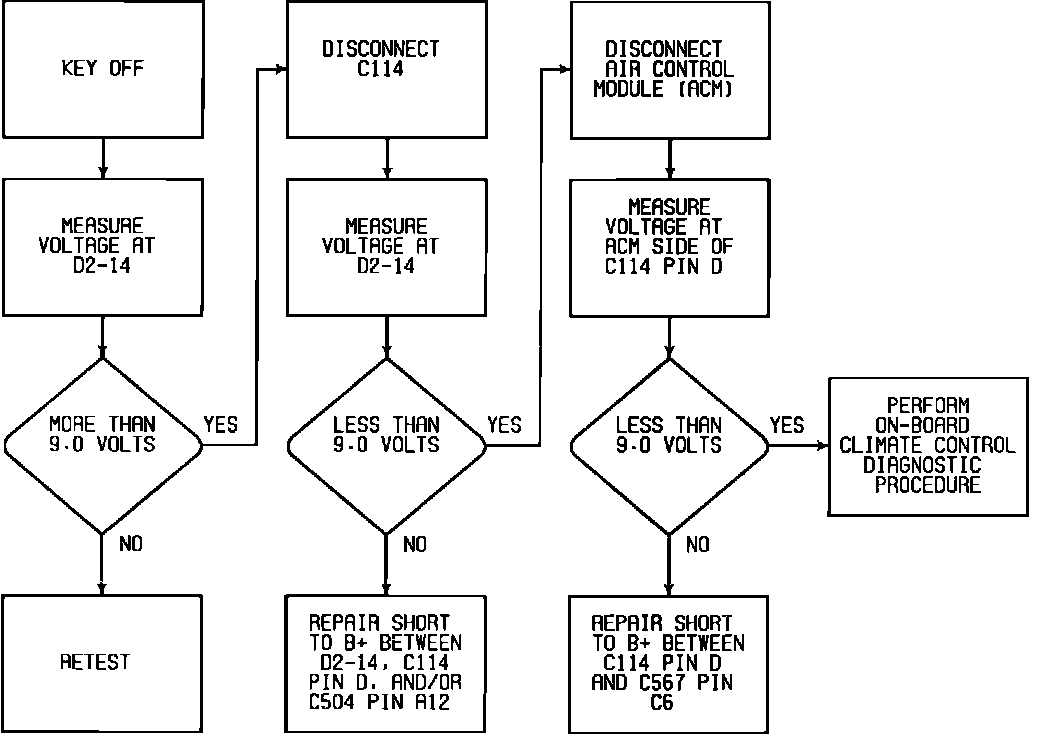

Code 1071:






Code 1071


Wiring Diagram:





Code 1071 Wiring Diagram
