1070 A/C Cutout Line Low

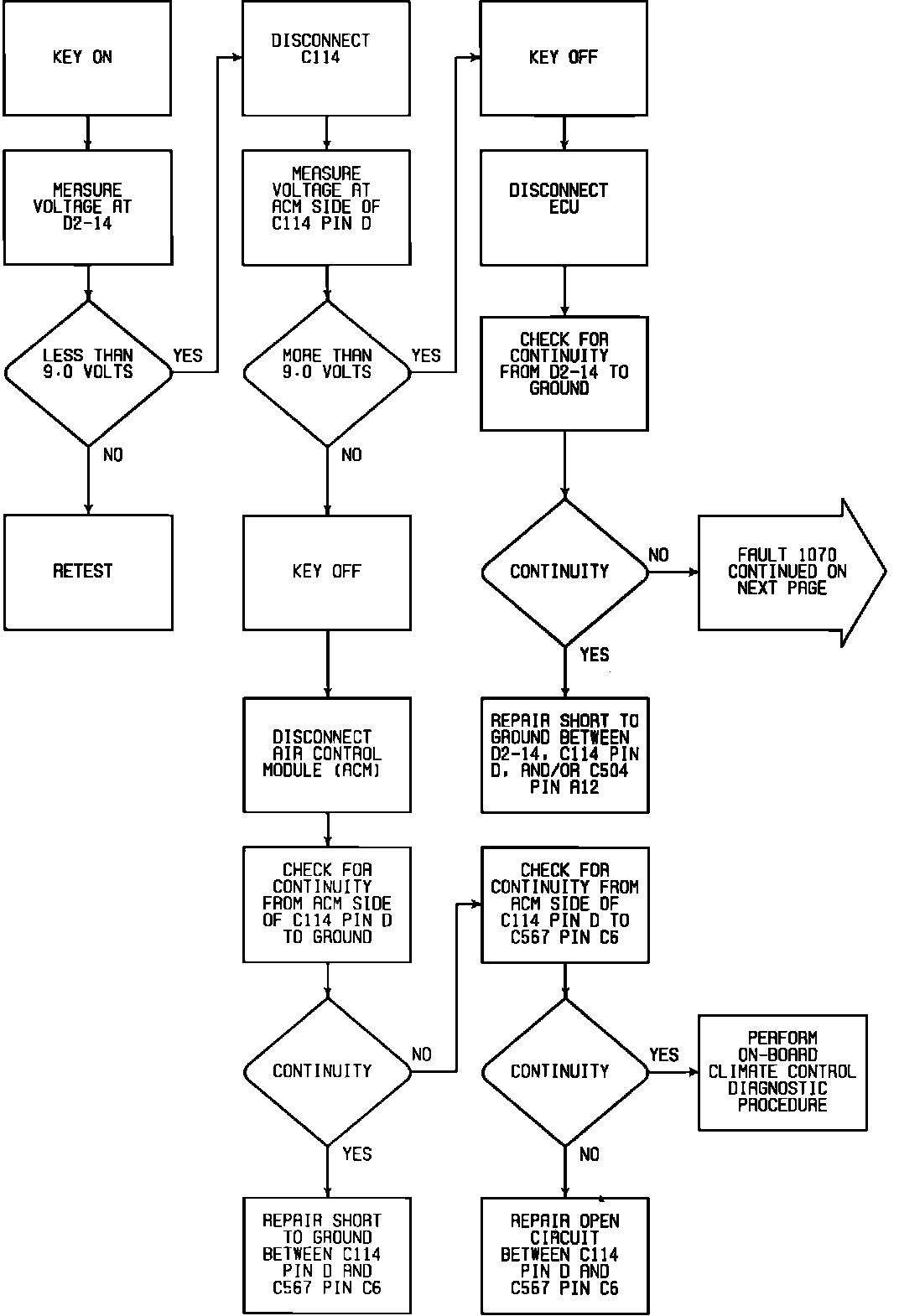

Code 1070 (Part 1 of 2):






Code 1070 (Part 1 of 2)

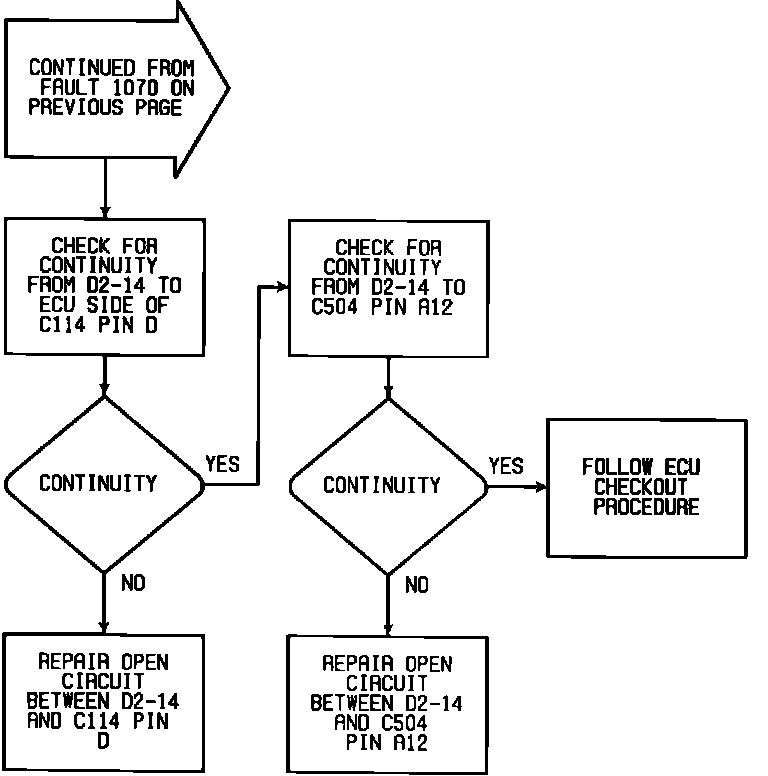

Code 1070 (Part 2 of 2):






Code 1070 (Part 2 of 2)


Wiring Diagram:





Code 1070 Wiring Diagram
