1067 Latch Relay Line Low
1067 Latch Relay Line Low

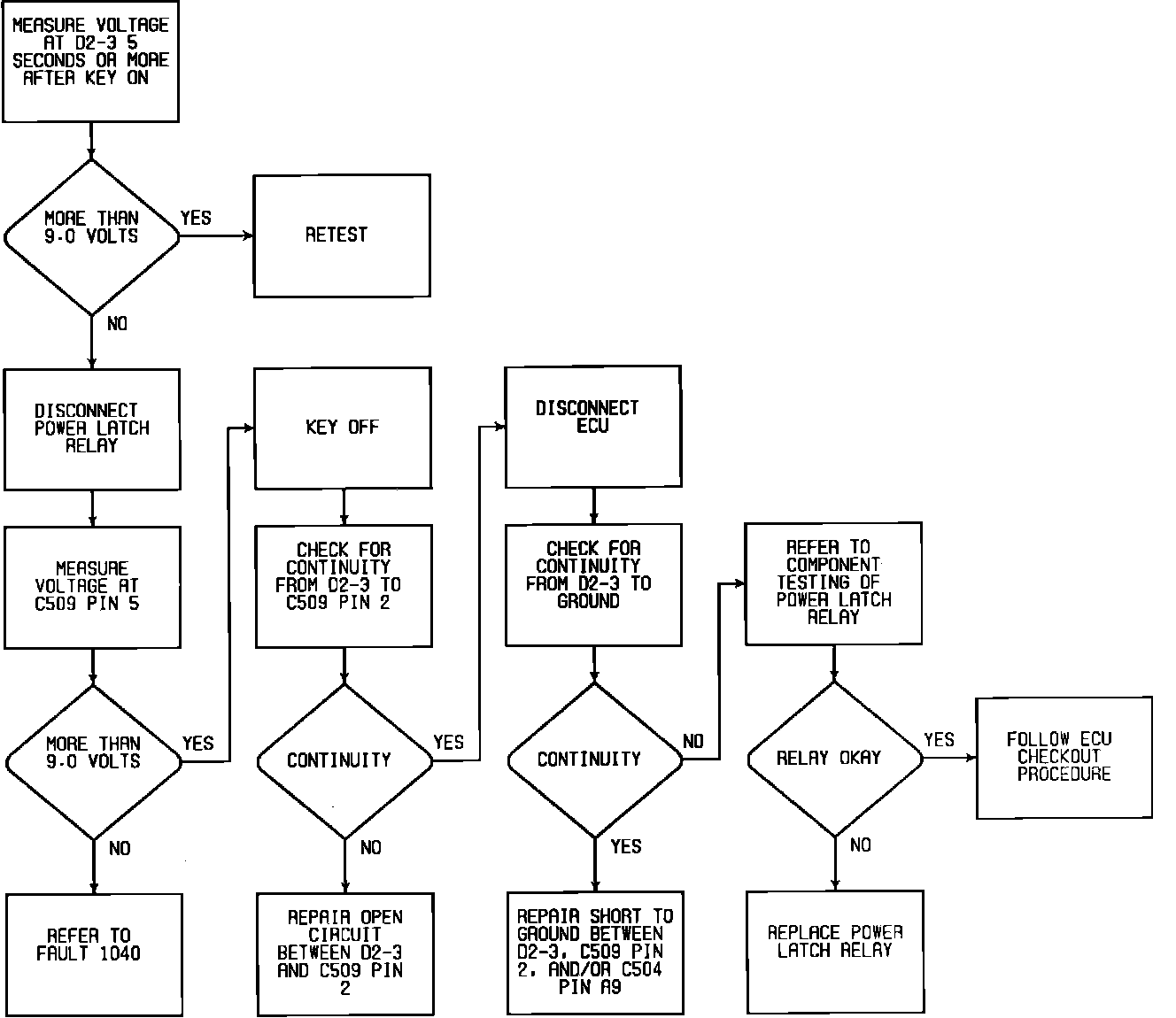

Code 1067:
Code 1067
Wiring Diagram:
Code 1067 Wiring Diagram
