1063 A/C Clutch Line Low

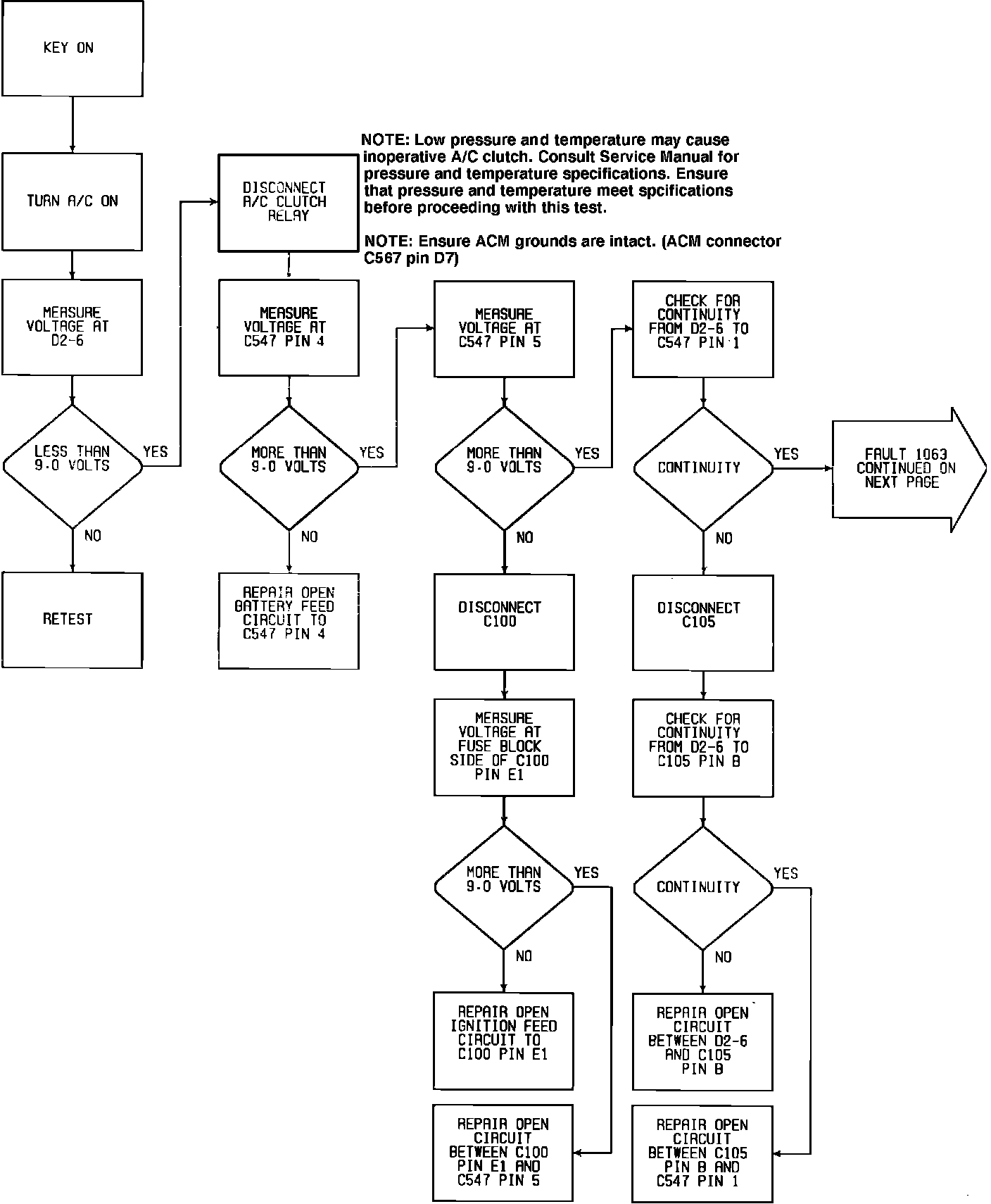

Code 1063 (Part 1 of 2):






Code 1063 (Part 1 of 2)

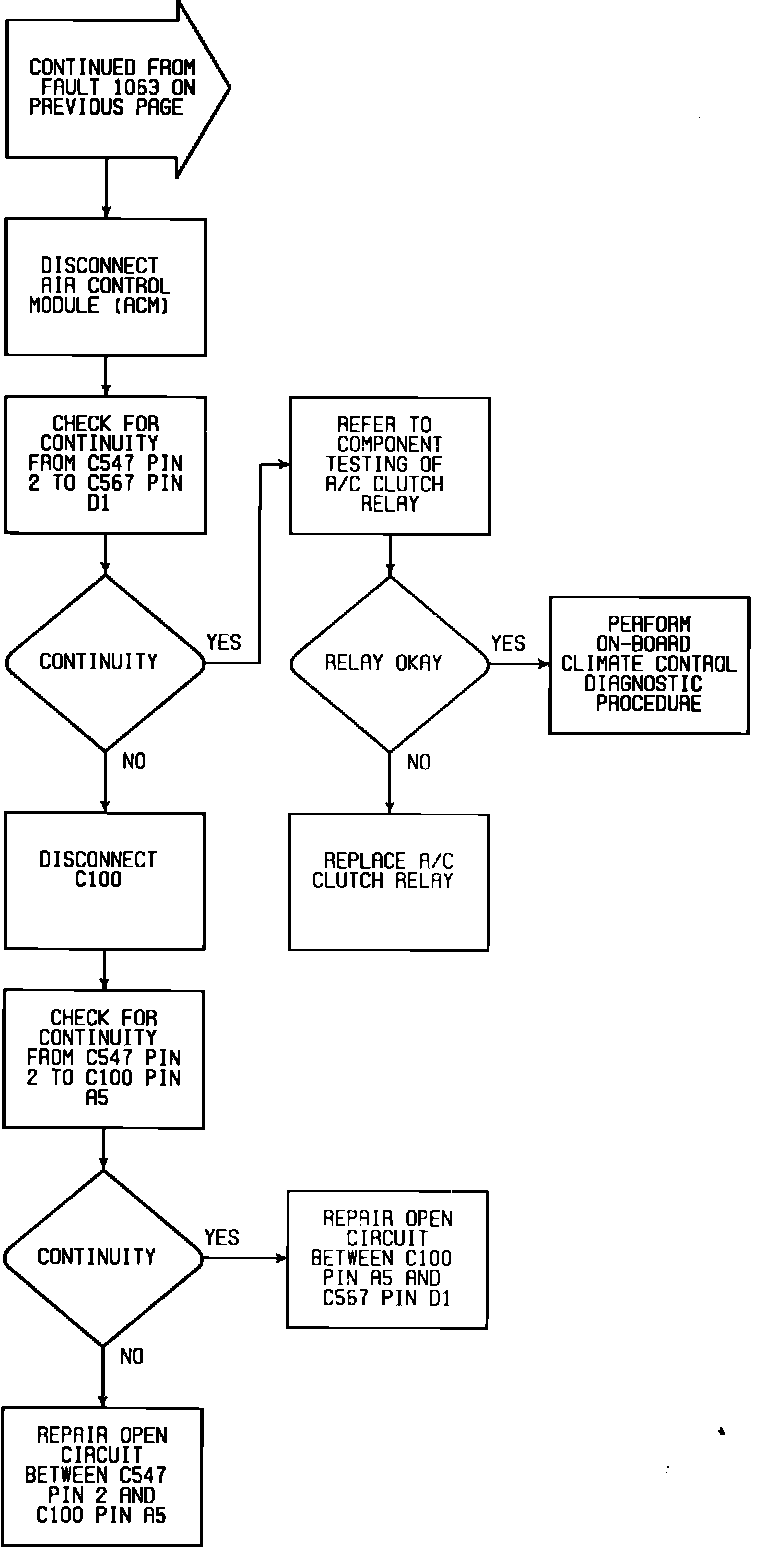

Code 1063 (Part 2 of 2):






Code 1063 (Part 2 of 2)


Wiring Diagram:





Code 1063 Wring Diagram
