1062 A/C Select Line High
1062 A/C Select Line High

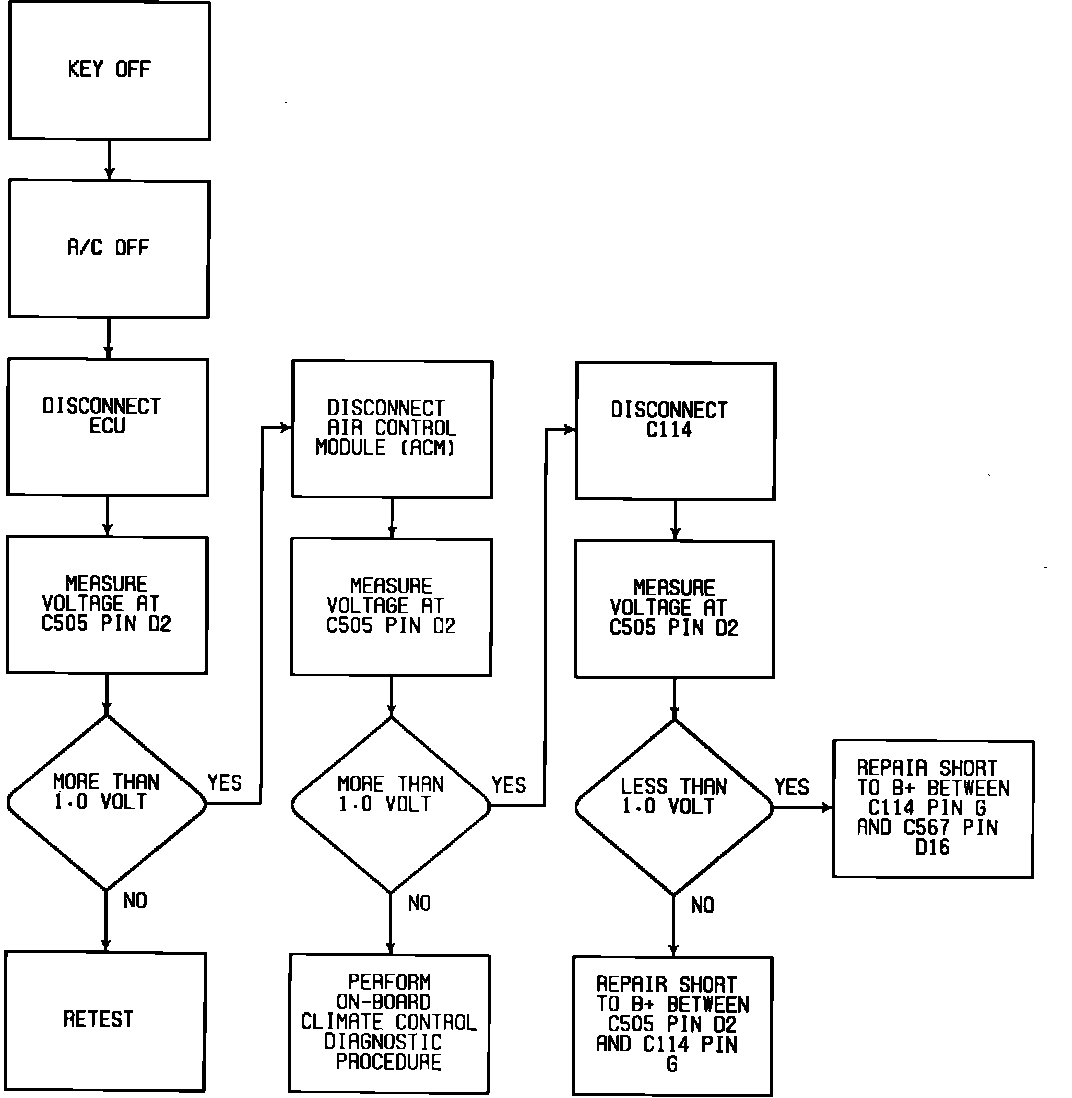

Code 1062:
Code 1062
Wiring Diagram:
Code 1062 Wiring Diagram
