1058 Knock Sensor Value Out of Limits

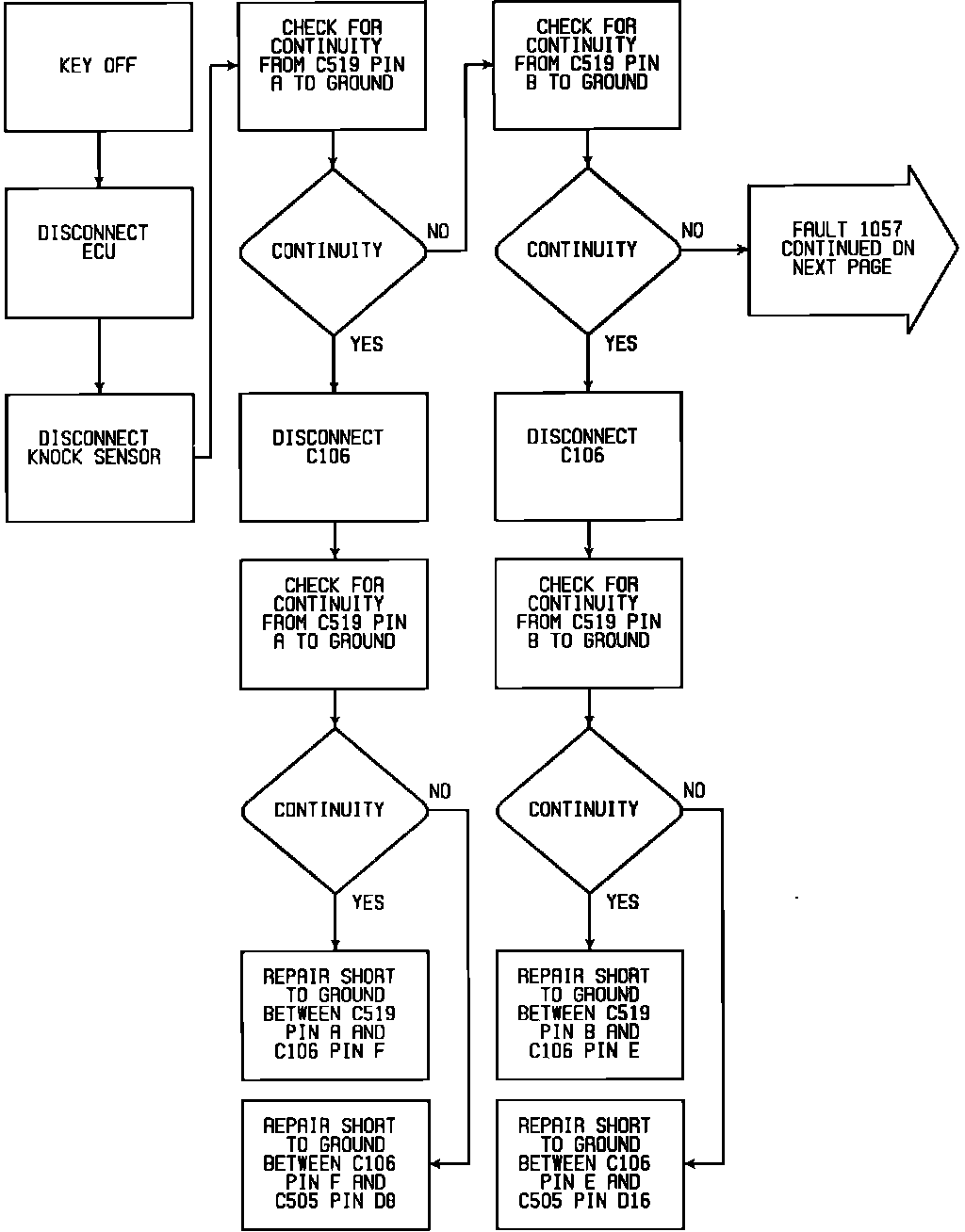

Code 1058 (Part 1 of 2):






Code 1058 (Part 1 of 2)

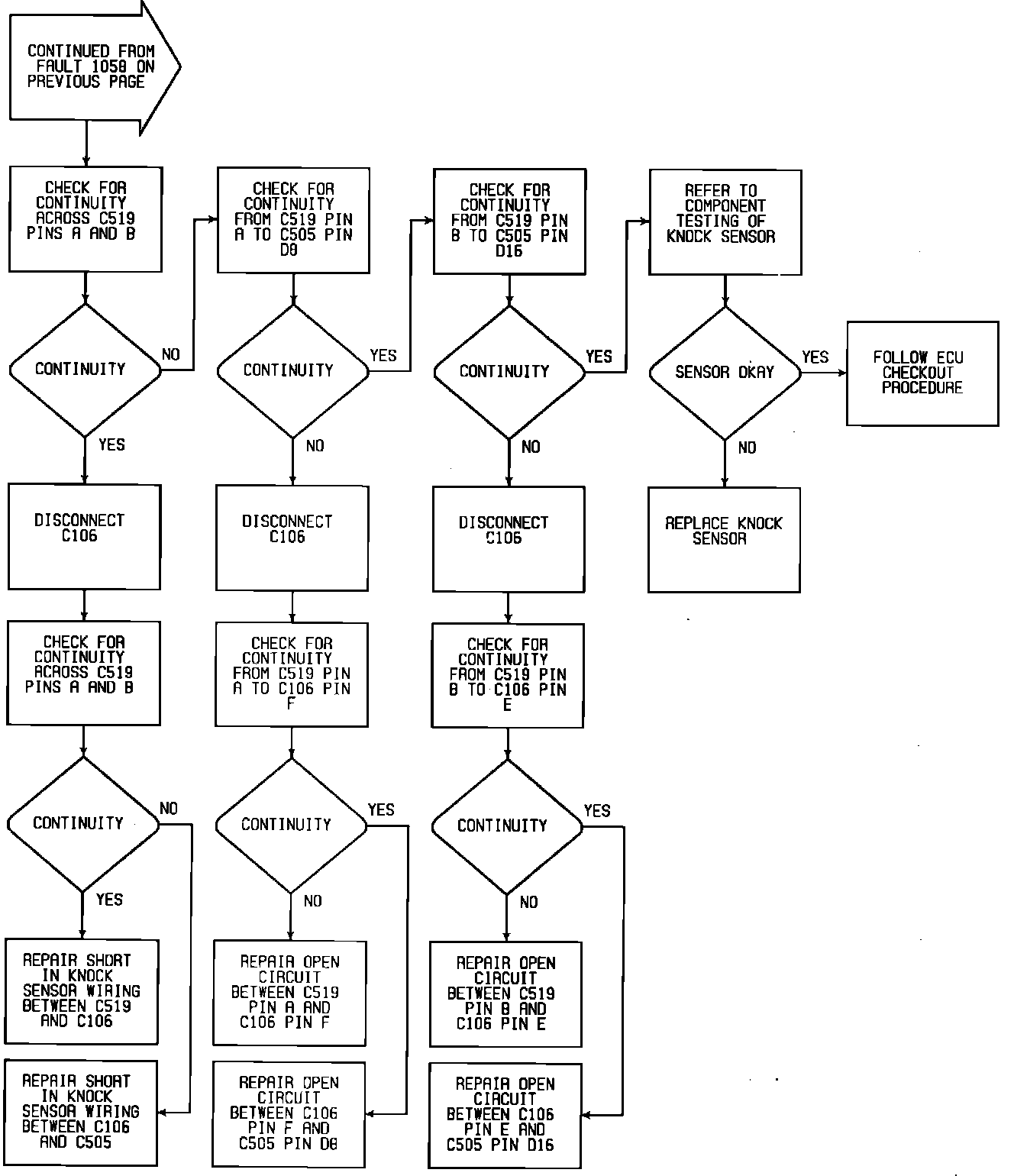

Code 1058 (Part 2 of 2):





Code 1058 (Part 2 of 2)


Code 1057:





Code 1058 Wiring Diagram
