Home >> Eagle >> 1989 >> Premier L4-150 2.5L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> 4 Digit Codes >> 1054 Coolant Temperature Sensor Line Low

1054 Coolant Temperature Sensor Line Low

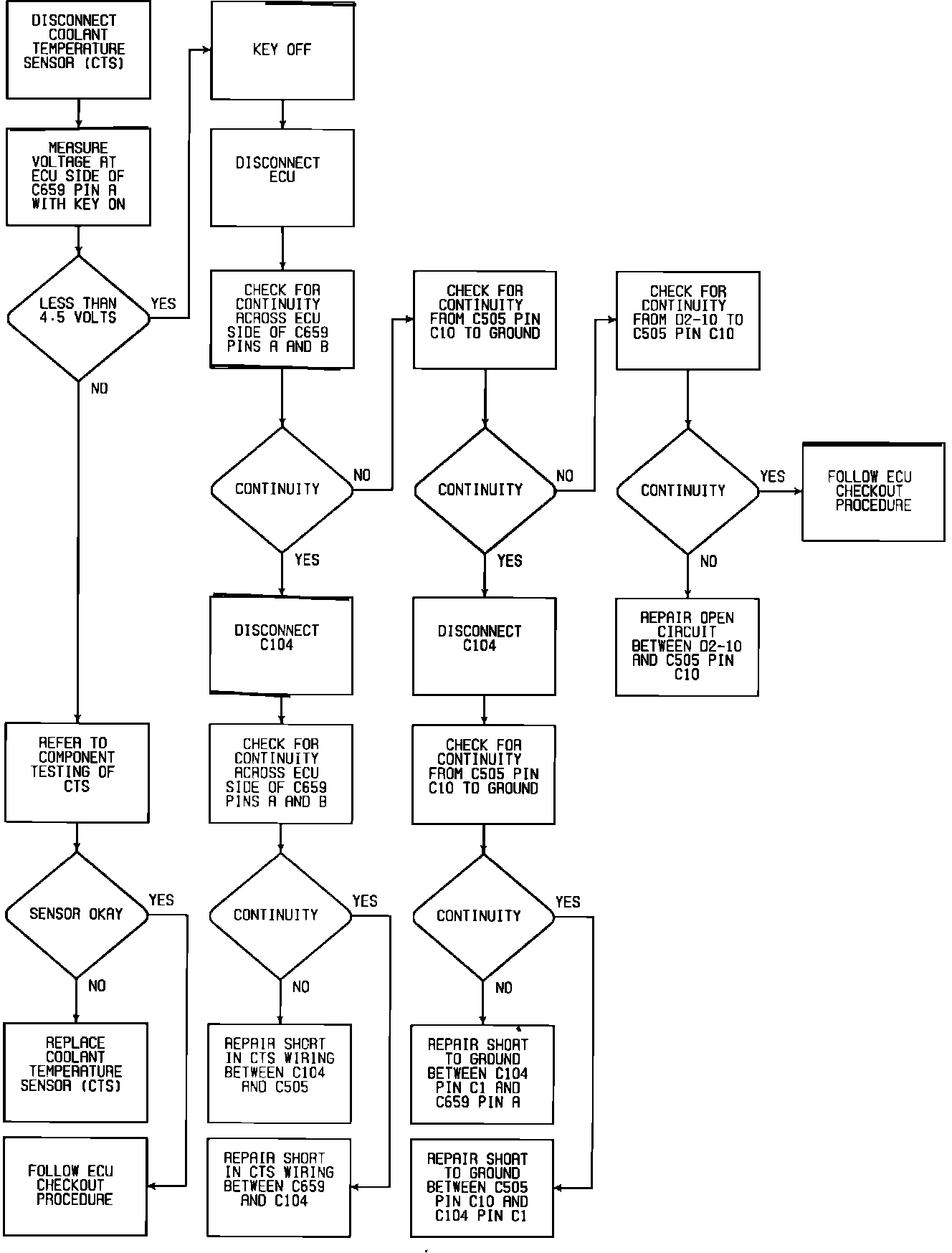

Code 1054:






Code 1054


Wiring Diagram:





Code 1054 Wiring Diagram
