1041 Latched B+ Line High
1041 Latched B+ Line High

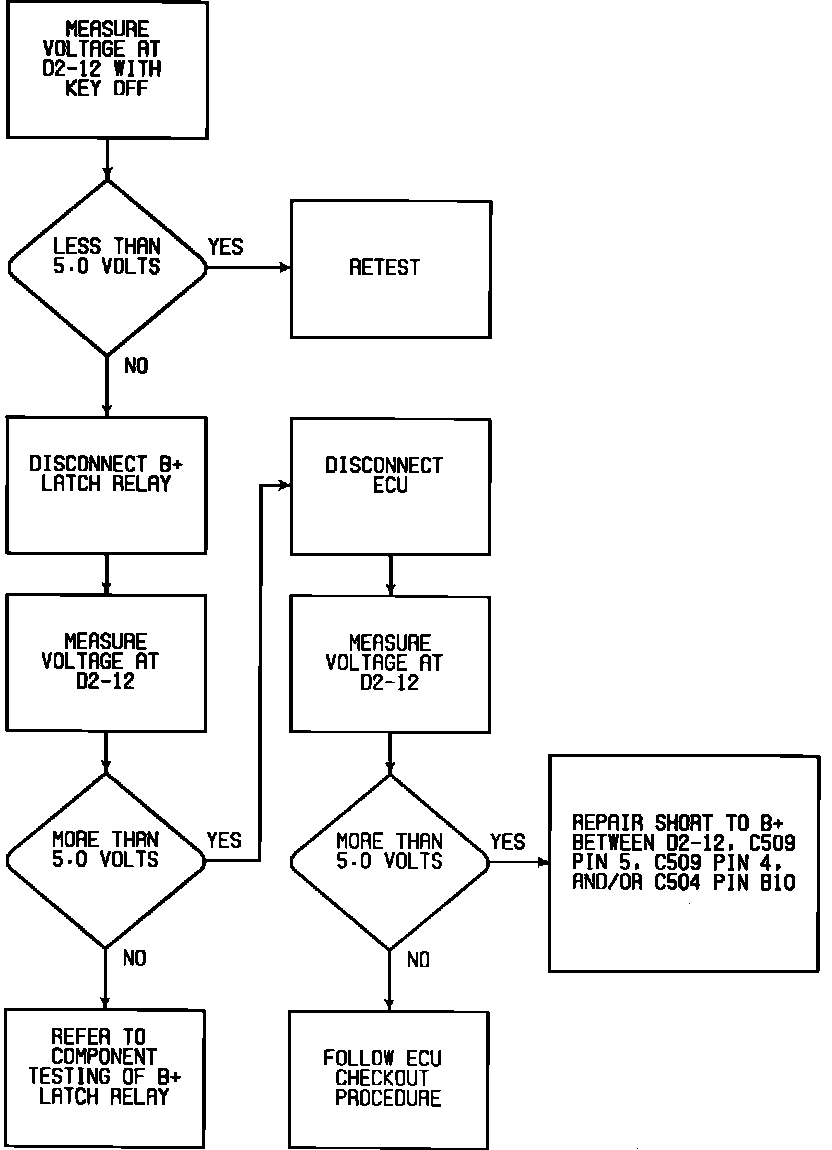

Code 1041:
Code 1041
Wiring Diagram:
Code 1041 Wiring Diagram
