1040 Latched B+ Line Low
1040 Latched B+ Line Low

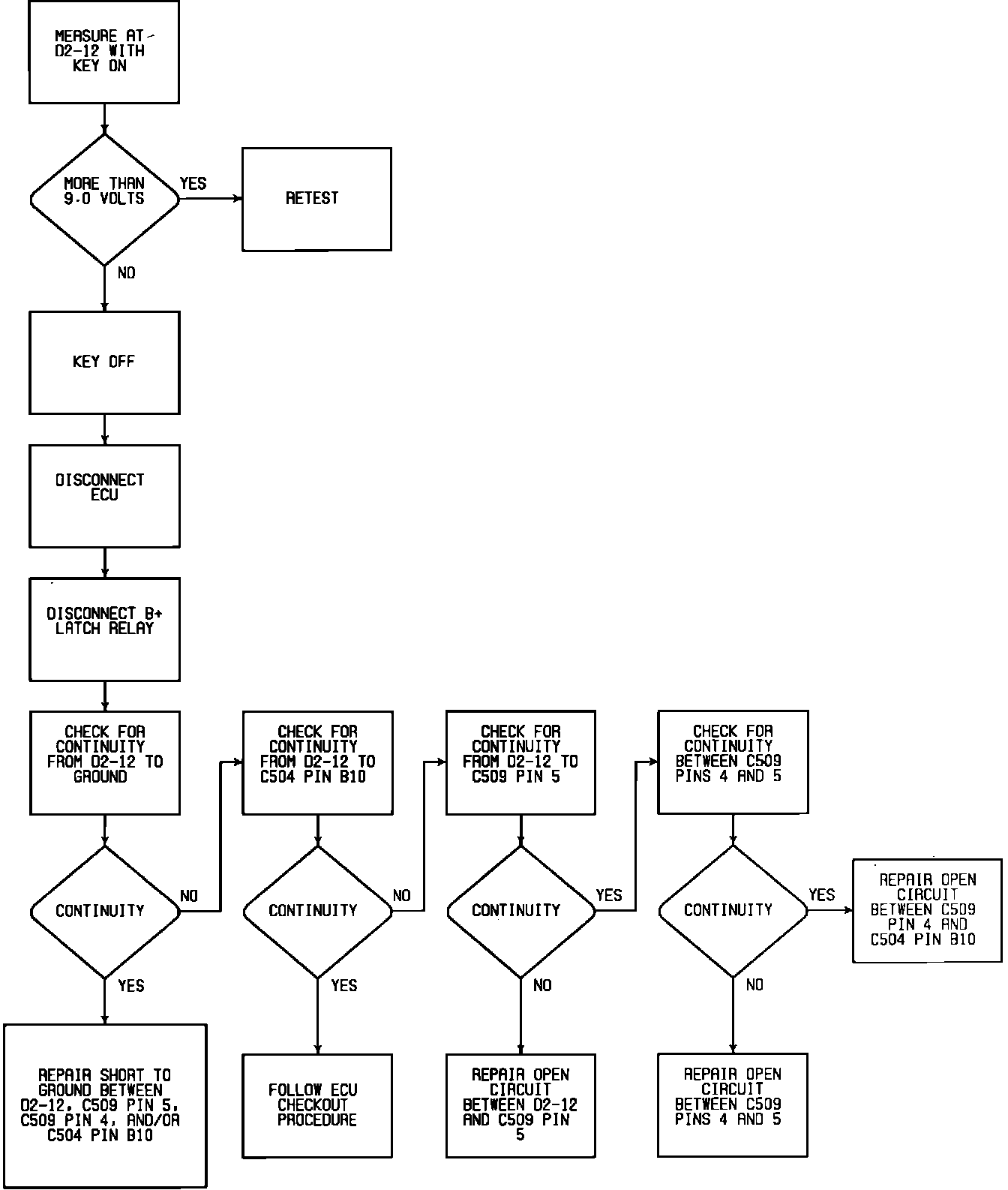

Code 1040:
Code 1040
Wiring Diagram:
Code 1040 Wiring Diagram
